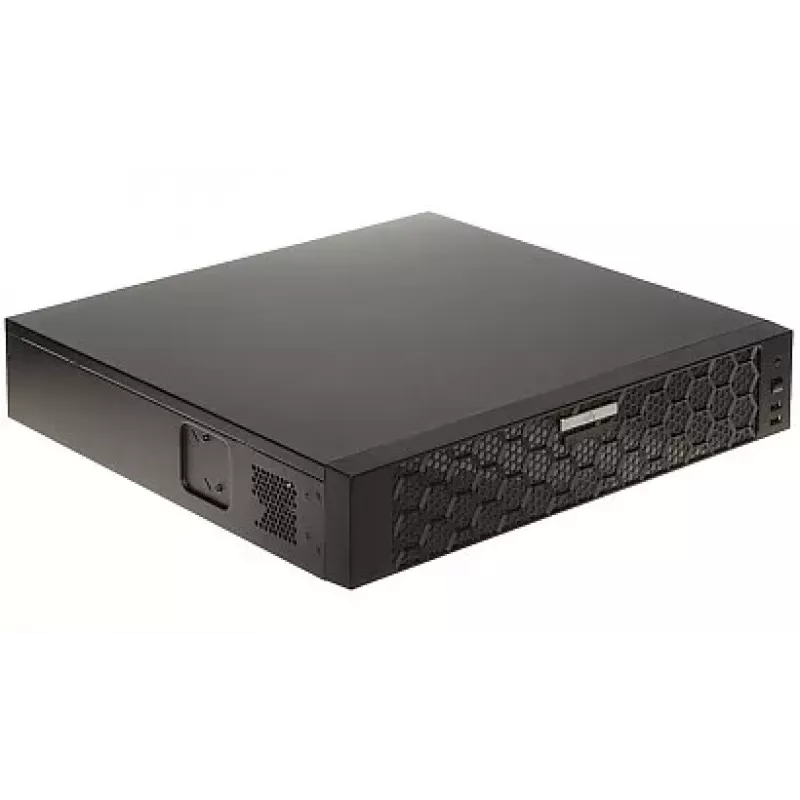

Gravador de vídeo em rede Uniview NVR508-64B 64 canais 12MP 8 baías 2U para rack

The Uniview NVR508-64B is a high-performance 64-channel network video recorder designed for professional surveillance systems. With support for up to 12MP resolution recording and 384 Mbps bandwidth, it delivers exceptional video clarity and smooth playback. The 8-bay SATA design accommodates up to 80 TB of storage, and RAID support ensures data redundancy. Ideal for large-scale installations, this 2U rackmount NVR offers comprehensive connectivity and advanced features.

Advantages

Supports 64 IP channels with 12MP recording, 384 Mbps incoming/outgoing bandwidth, Ultra 265 compression, dual 4K HDMI outputs, and RAID 0/1/5/6/10 for data protection. Embedded Linux OS ensures reliability and security.

Suitable for

• Large retail stores and shopping malls
• Corporate office buildings and campuses
• Warehouses and logistics centers
• Government and public facilities
• Educational institutions

Key specifications

• Video Input: 64 IP channels
• Max Recording Resolution: 12MP (4000x3000)
• Incoming/Outgoing Bandwidth: 384 Mbps
• Video Compression: Ultra 265, H.265, H.264
• HDMI Output: 2x HDMI (up to 4K)
• VGA Output: 1x VGA (up to 1080p)
• HDD Bays: 8 SATA, up to 10 TB each (80 TB total)
• RAID Support: 0, 1, 5, 6, 10
• Network Interface: 2x Gigabit Ethernet (RJ45)
• USB: 1x USB 3.0 (front), 2x USB 2.0 (rear)
• Audio: 1-ch RCA input / 1-ch RCA output
• Alarm: 16-ch input / 4-ch output
• Decoding: 2x 4K@30fps, 8x 1080p@30fps
• Power: 100~240V AC
• Form Factor: 2U Rackmount
• OS: Embedded Linux

Recommendations

For optimal performance, use compatible Uniview IP cameras and enterprise-grade hard drives. Ensure proper ventilation in the rack cabinet. RAID 5 or 6 is recommended for critical data protection.
