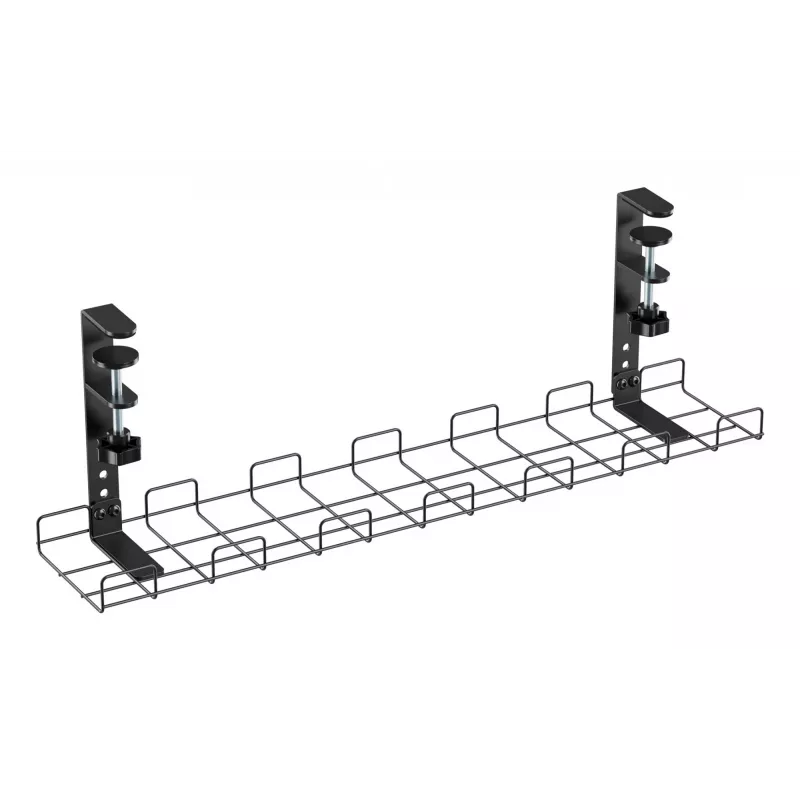

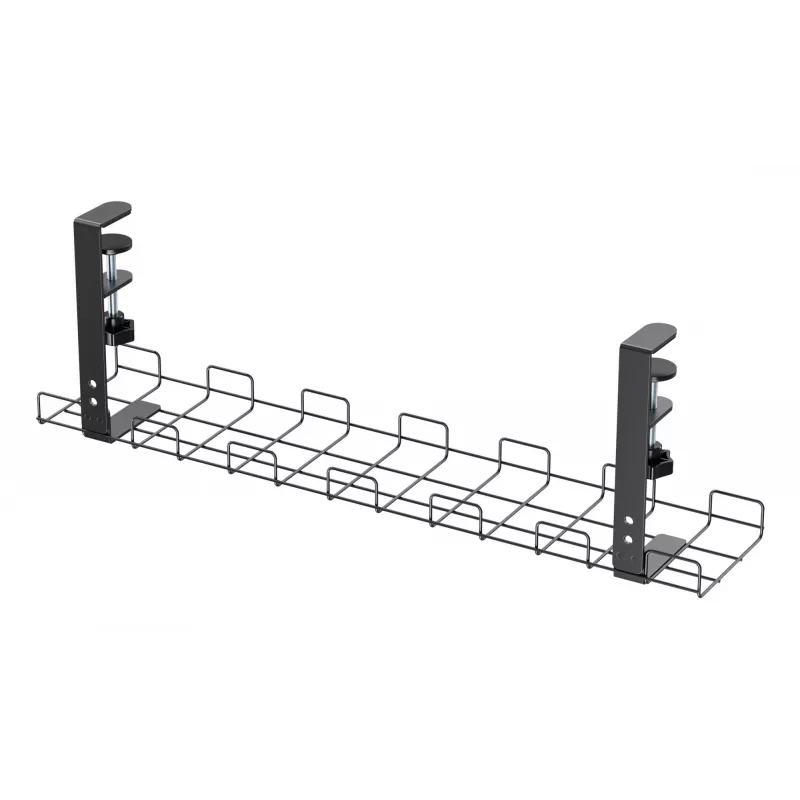

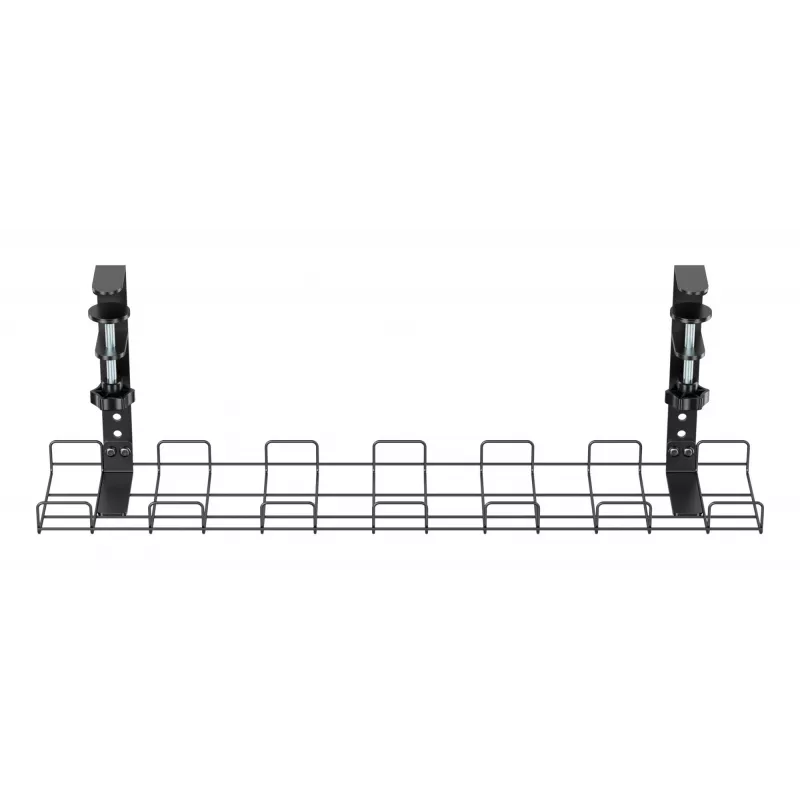

Grelha de gestão de cabos 60 cm InLine 23190G para montagem em secretária com terminais de parafuso, preto

Quick installation without drilling:The sturdy mounting with screw clamps enables tool-free and time-saving installation under any desk.
Robust holder for IT accessories:The powder-coated steel grid provides a stable shelf for power supply units, power strips and other accessories - neat, secure and accessible at all times.
Air circulation for electronic components:The open design protects against overheating - ideal for power supply units, adapters or small switches.
Flexible adaptation to table systems:Compatible with table tops from 5 to 50 mm - for customised workstation solutions.
Capable of bearing loads of up to 5 kg:The solid construction is also suitable for heavier IT components or multiple sockets.

The InLine® cable management grid offers a professional solution for cable management at modern workstations. With its sturdy steel construction and air-permeable grid shape, it creates space under the desk for power supply units, power strips, cables and accessories - safely and neatly stowed away.
The tool-free attachment via two strong screw clamps enables quick and residue-free installation without drilling. This makes the grid particularly suitable for office environments, co-working spaces or rental properties where permanent installations are not required. The system can be used flexibly and is compatible with table tops from 5 to 50 mm thick.

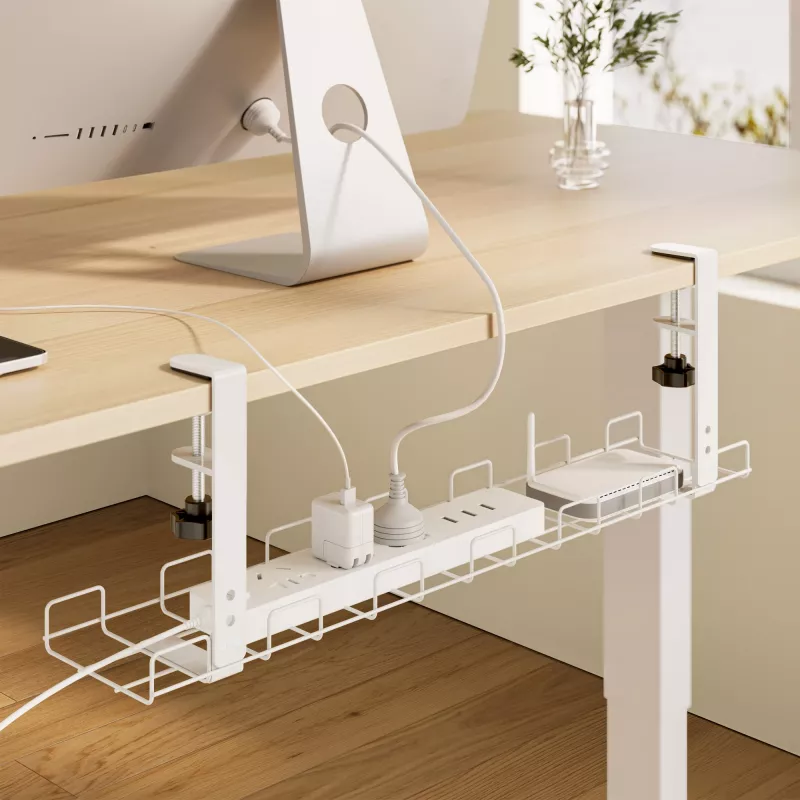

The resilient grid can hold up to 5 kg and impresses with its versatility. Whether as an organiser for cable harnesses, a holder for small power supply units or as a shelf for office electronics - it ensures a tidy workplace and reduces the risk of falling and heat damage to devices. The powder-coated surface is available in black or white and blends discreetly into any modern office environment.
The InLine® cable management grid allows you to neatly structure installations, facilitate maintenance work and optimise workplace standards - for greater efficiency, safety and order in the IT infrastructure.

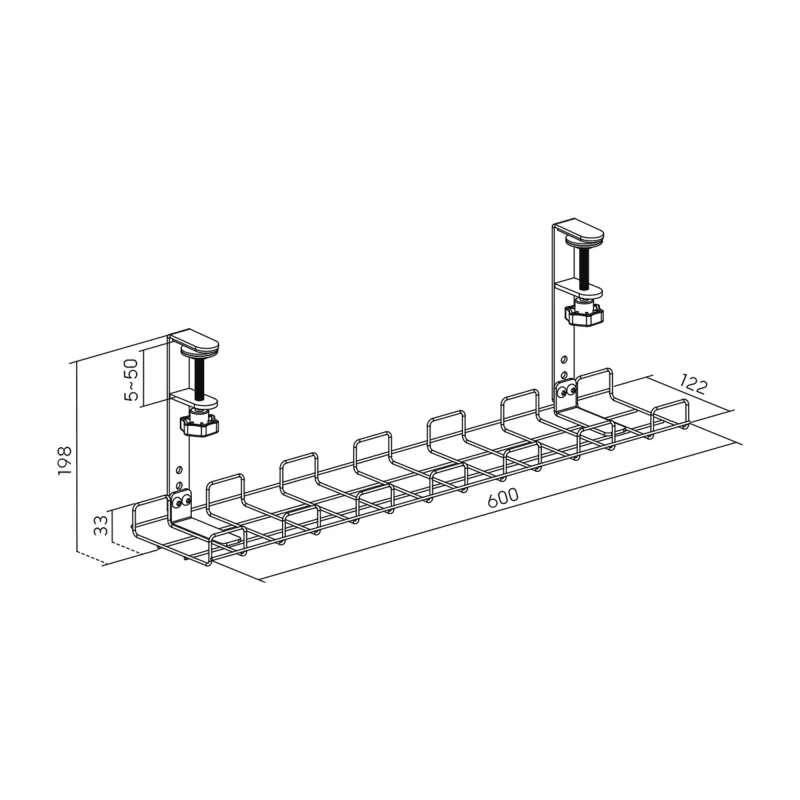

Dimensions: 198 × 600 × 122 mm (H × W × D)
Material: Powder-coated steel
Maximum load capacity: 5 kg
Mounting: screw clamps
Table top thickness: 5-50 mm

InLine 23190G. Product colour: Black, Material: Steel. Country of origin: Taiwan. Width: 120 mm, Depth: 600 mm, Height: 40 mm. Package width: 130 mm, Package depth: 610 mm, Package height: 45 mm

How to use

Position the grid along the desired section of the table edge or underside and mark the mounting points through the clamp brackets. Pre-drill holes if the tabletop material requires it, then attach the screw clamps and tighten to secure the grid. Route power cords, network cables and AV leads into the grid, arranging them to avoid crossing sharp edges and to minimize strain at connector ends. Leave space around larger power adapters to ensure ventilation.

Recommendations

For best results, distribute heavy or bulky adapters evenly along the grid and avoid overloading a single section. Use cable ties or Velcro straps inside the grid to keep bundles organized and allow easy changes. Inspect mounting screws periodically to ensure the clamps remain tight and the grid stays secure.
