GRENTON Módulo de saída para estores (1 saída) montagem encastrada Wi-Fi

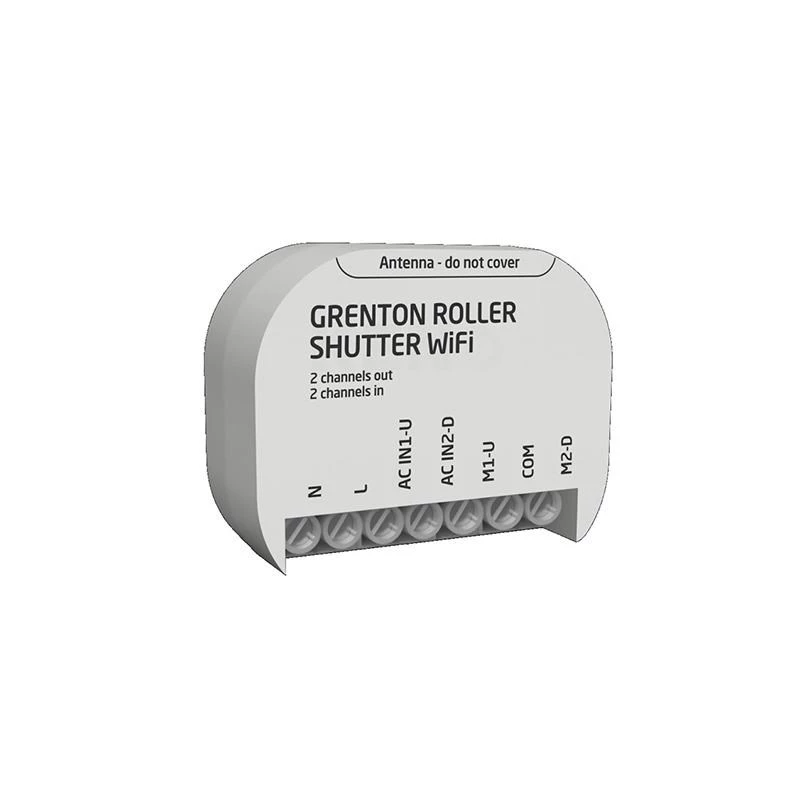

The GRENTON WRS-201-W-01 Roller Output Module is a smart home controller designed for single roller shutter motors. It enables local and remote control via the Grenton App, supporting Wi-Fi connectivity and seamless integration into the Grenton Smart Home System. The module is recess-mounted in standard 60mm wall boxes, providing a discreet and professional installation.

Advantages

This module offers precise roller shutter position control, calibration, scheduling, and scene integration. It features overload and thermal protection for safe operation. The Wi-Fi connectivity allows for easy remote management without additional hubs.

Suitable for

• Smart home automation systems
• Residential and commercial roller shutter control
• Integration with Grenton Smart Home System

Key specifications

• Connectivity: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
• Output: Relay (Up/Down/Stop), 1 channel
• Max Load: 3 A inductive, 690 W at 230V AC
• Mounting: Recess / In-wall (60mm box)
• Power Supply: 230V AC, 50Hz
• Operating Temperature: 0°C to 40°C
• Protection Class: IP20
• Housing Material: Plastic

Recommendations

For optimal performance, ensure the module is installed by a qualified electrician. Compatible with Grenton Smart Home System only.
