Módulo de regulação LED RGBW Grenton, montagem em calha DIN, TF-Bus, 4 canais, PWM, 24V DC, 5A por canal

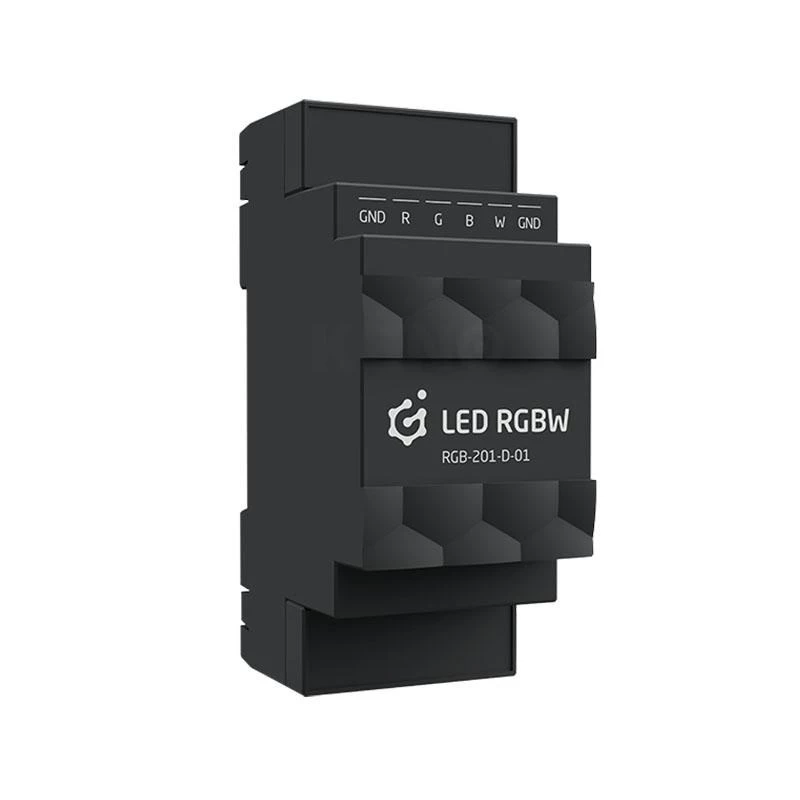

The Grenton RGBW LED Dimming Module (RGB-201-D-01) is a professional-grade 4-channel PWM dimmer designed for DIN rail mounting. It operates via the Grenton TF-Bus communication protocol, making it an ideal component for Grenton Smart Home systems. This module provides smooth 0-100% dimming for RGBW LED strips, supporting both 12V and 24V LED loads with a maximum output current of 5A per channel (20A total) and up to 120W per channel (480W total at 24V). Built-in protection features include overload, short-circuit, and overheat safeguards, ensuring reliable and safe operation in residential and commercial installations.

Advantages

• Seamless integration with Grenton Smart Home System via TF-Bus
• High power handling: up to 480W total at 24V
• 4 independent RGBW channels for flexible lighting control
• Robust protection: overload, short-circuit, overheat
• Compact 2-module DIN rail design saves space

Suitable for

• RGBW LED strip dimming in smart home installations
• DIN rail control cabinets
• Commercial and residential lighting control systems

Key specifications

• Product Type: LED Dimming Module
• Mounting Type: DIN Rail
• Communication Protocol: Grenton TF-BUS
• Number of Channels: 4 (RGBW)
• Output Type: PWM
• Input Voltage (Module): 24V DC
• Input Voltage (LEDs): 12V DC / 24V DC
• Max. Output Current per Channel: 5 A
• Max. Total Output Current: 20 A
• Max. Output Power per Channel (at 24V): 120 W
• Max. Total Output Power (at 24V): 480 W
• Dimming Range: 0-100%
• Protection Features: Overload, Short-circuit, Overheat
• Operating Temperature: -10°C to +50°C
• Relative Humidity: 5% to 90% (non-condensing)
• Compatibility: Grenton Smart Home System
• Housing Material: Plastic
• Number of DIN Modules: 2

Recommendations

For optimal performance, use with Grenton TF-Bus controllers and ensure proper ventilation in the DIN rail cabinet. Verify LED strip voltage (12V or 24V) before connection.
