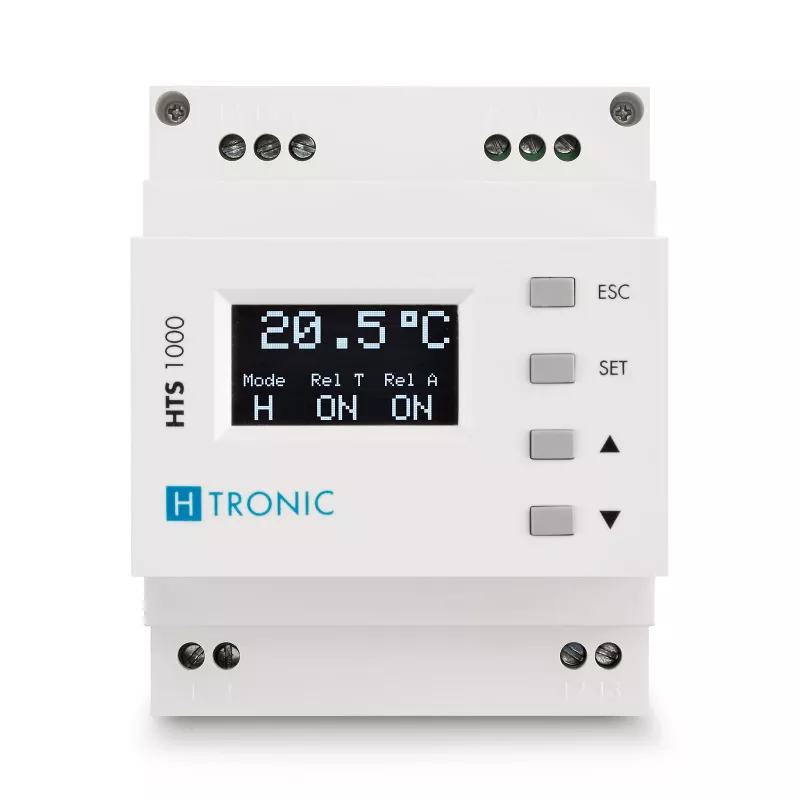

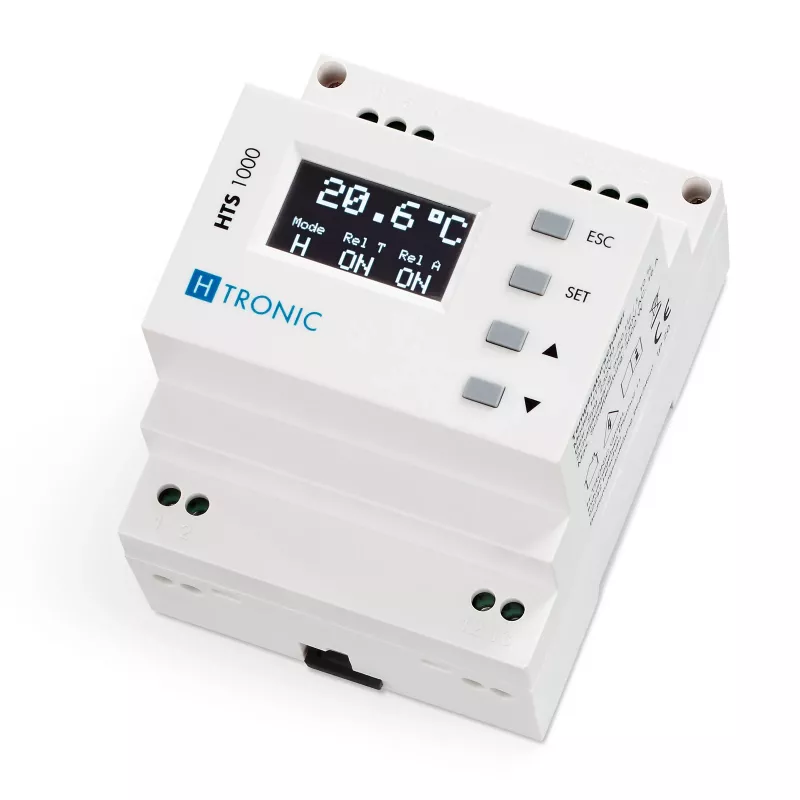

H-TRONIC HTS 1000 Interruptor de temperatura para calha DIN -99°C a +850°C 1114690

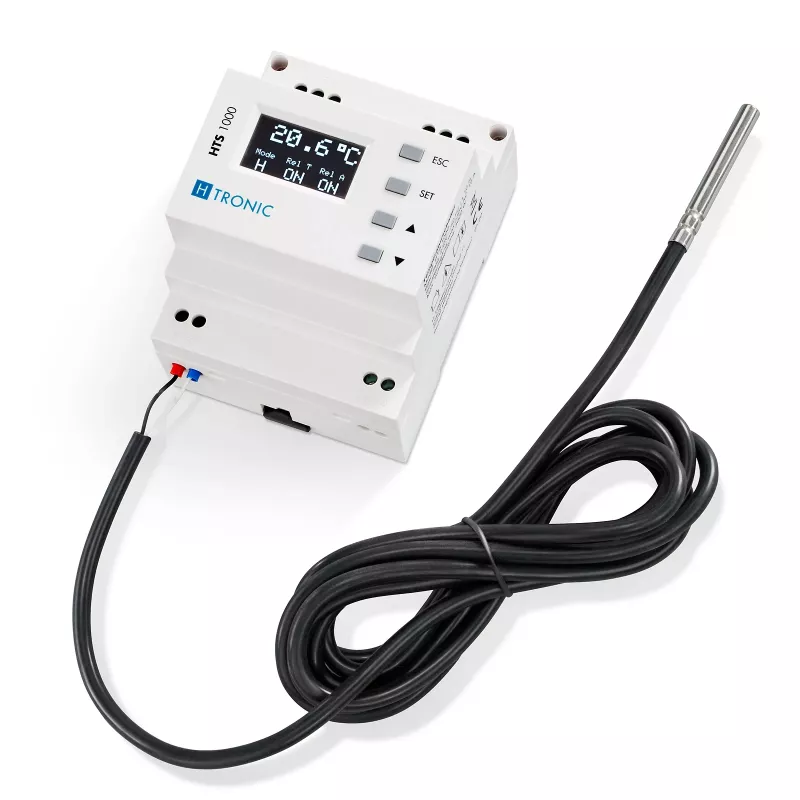

Monitoring and controlling temperature in industrial and building automation often requires a reliable, DIN-rail mounted device that can handle a wide range of sensor inputs and switching loads. The H-TRONIC HTS 1000 addresses this need with a precise two-point controller for Pt100/Pt1000 sensors, offering a measuring range from -99°C to +850°C and a 10A relay output.

Who is it for

This temperature switch is intended for electricians, panel builders, and maintenance technicians who need to integrate temperature-based switching into control cabinets. It suits heating, cooling, and alarm applications where a robust DIN-rail module is required.

Main features

• Wide measuring range: -99°C to +850°C
• Selectable Pt100 or Pt1000 sensor input, 2- or 3-wire connection
• 1 changeover relay (SPDT) with 10A / 250V AC switching capacity
• Two-point (on/off) control with adjustable hysteresis from 0.1 K to 99.9 K
• 3-digit LED display with 0.1°C resolution up to 99.9°C, 1°C above
• Heating/cooling mode, offset adjustment, and sensor break detection
• DIN rail mounting (35mm), screw terminals, 230V AC supply

Specifications

• Temperature measuring range: -99°C to +850°C

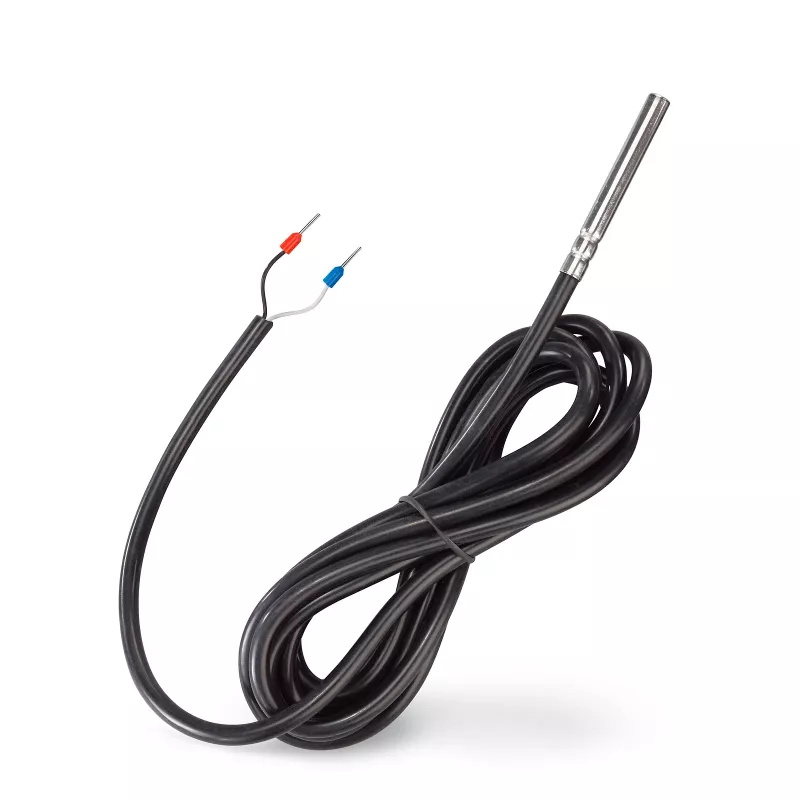

• Sensor input: Pt100 / Pt1000, 2- or 3-wire
• Supply voltage: 230V AC, 50/60 Hz
• Output: 1x changeover relay (SPDT), 10A / 250V AC resistive
• Control mode: two-point (on/off)
• Display: 3-digit LED
• Hysteresis: 0.1 K to 99.9 K adjustable
• Resolution: 0.1°C (-99.9 to 99.9°C), 1°C (100 to 850°C)
• Accuracy: ±1% of full scale ±1 digit
• Operating temperature: 0°C to +50°C
• Protection class: IP20 (front panel)
• Power consumption: max. 3 VA
• Housing material: self-extinguishing plastic (PC/ABS)
• Certification: CE
• Mounting: DIN rail 35mm
• Electrical connection: screw terminals

Tips

For accurate measurements, use a 3-wire Pt100 sensor to compensate for lead resistance. Set the hysteresis according to the process tolerance to avoid frequent relay cycling. Ensure the supply voltage matches 230V AC before wiring.
