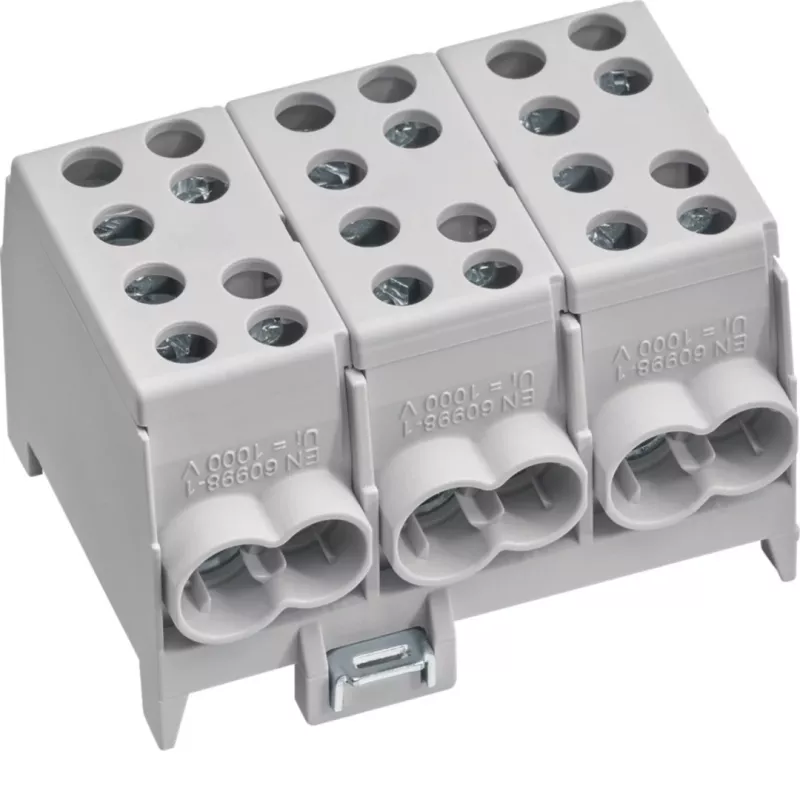

Hager borne de derivação de linha principal KH35L3 3 polos 2x35-2x25mm² cinzento

Electricians and panel builders use the Hager KH35L3 main line branch terminal block to distribute power from a 35 mm² main line to two 25 mm² branch lines. It mounts on a DIN rail or with screws, making it suitable for distribution boards and industrial control panels.

Key specifications

• Product type: Main line branch terminal block
• Number of poles: 3
• Main line input: 1 x 35 mm² per pole
• Main line output: 1 x 35 mm² per pole
• Branch line output: 2 x 25 mm² per pole
• Rated current: 125 A
• Rated voltage: 690 V AC
• Mounting: DIN rail (TS35) or screw mounting
• Colour: Grey
• Connection type: Screw terminal
• Housing material: Polyamide (PA)
• Conductor material: Tinned brass
• Max torque main line: 4 Nm
• Max torque branch line: 3 Nm
• Operating temperature: -25 to +70 °C

Why choose it

The KH35L3 provides a compact and reliable way to branch large conductor cross-sections without additional junction boxes. Its screw terminals ensure secure connections for both rigid and flexible conductors.

Ideal use cases

• Power distribution in residential and commercial distribution boards
• Branching main feeders to sub-circuits in industrial panels
• Retrofitting existing installations where space is limited

Good to know

The terminal block is made of grey polyamide and has an IP20 protection rating. It complies with IEC 60947-7-1. The maximum torque values are 4 Nm for main line connections and 3 Nm for branch line connections.
