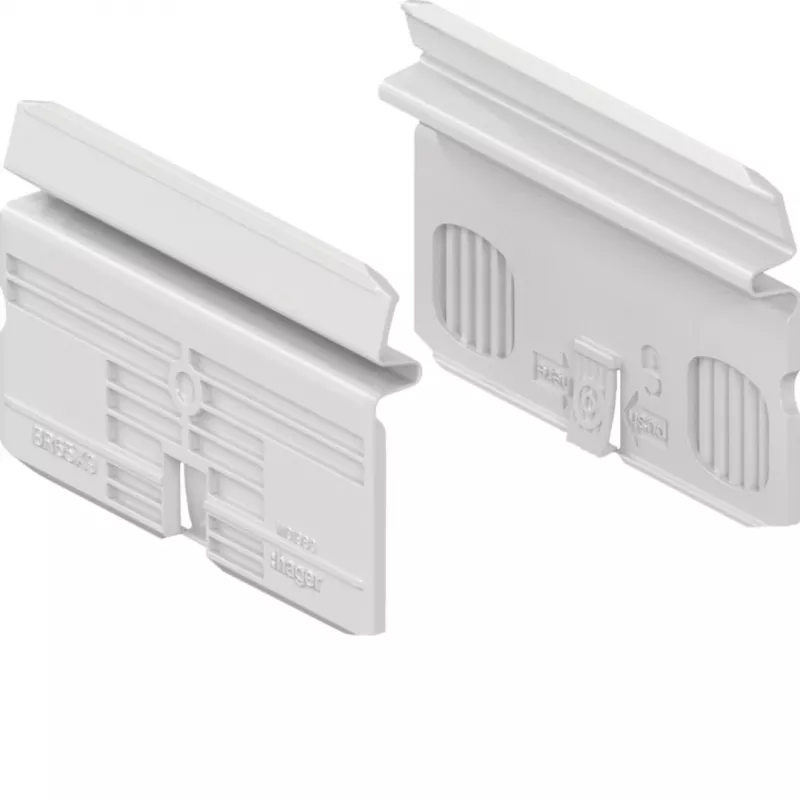

HAGER BR65X9 suporte de aparelhos de sistema para calha de peitoril BR65x, 2 vias, branco puro

Electricians and panel builders use the HAGER BR65X9 to mount two 45x45 mm devices—sockets, switches, or data outlets—inside BR65x100, BR65x130, BR65x170, or BR65x210 dado trunking. The carrier snaps into the trunking profile without tools, keeping the installation clean and accessible.

Key specifications

• Product type: System device carrier
• Compatibility: Hager BR65x dado trunking system (BR65x100, BR65x130, BR65x170, BR65x210)
• Number of gangs: 2
• Device module size: 45x45 mm
• Mounting type: Snap-in
• Material: PVC (polyvinyl chloride)
• Colour: Pure white (RAL 9010)
• Halogen-free: Yes
• Protection class: IP20 (when installed with appropriate devices)
• Temperature resistance: -5 to +60 °C
• Fire behaviour: Self-extinguishing
• Standard compliance: DIN EN 50085-2-1
• Installation position: Horizontal or vertical within trunking

Why choose it

The BR65X9 simplifies device installation in dado trunking. Its snap-in design reduces labour time, and the halogen-free PVC material meets modern building requirements. The pure white finish matches standard trunking profiles for a seamless look.

Ideal use cases

• Office workstations with power and data requirements
• Commercial spaces needing modular device installation
• Retrofit projects where trunking is already installed

Good to know

The carrier is designed for use with Hager BR65x trunking only. Devices are not included; the carrier accepts standard 45x45 mm modules. For horizontal or vertical mounting, ensure the trunking profile is properly secured.
