HAGER BRS651304 vws canto interior de perfil base 68x130mm chapa de aço branco tráfego RAL 9016 BRS6513049016

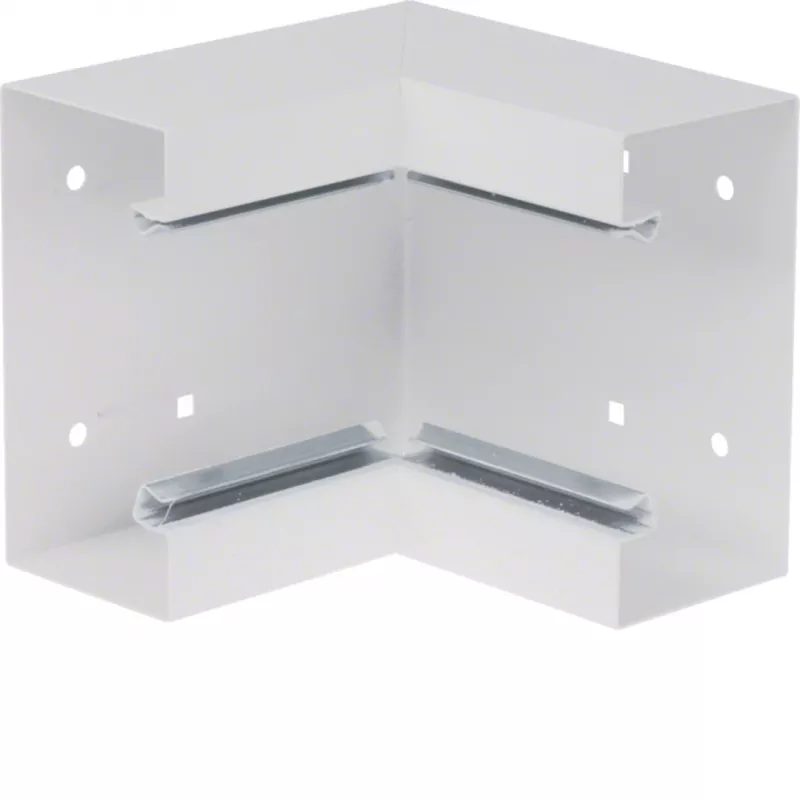

Inner corner piece for the BRS cable trunking system, enabling a 90-degree internal bend in 68x130 mm trunking runs. Made from powder-coated sheet steel in traffic white RAL 9016, it ensures a clean, professional finish for internal corner transitions.

Advantages

Integrated mounting with the trunking system allows quick, secure installation without additional brackets. The powder-coated finish over galvanized steel provides durable corrosion protection for indoor environments.

Suitable for

• Routing and protecting cables around internal corners in commercial and industrial buildings
• Use with BRS trunking profiles of 68 mm height and 130 mm width

Key specifications

• Product type: Inner corner piece
• System compatibility: OBO Bettermann BRS cable trunking system
• Trunking dimensions (H x W): 68 x 130 mm
• Material: Sheet steel
• Colour: Traffic white (RAL 9016)
• Surface finish: Powder-coated
• Corner angle: 90 degrees
• Mounting position: Internal
• Corrosion protection: Galvanized and powder-coated
• Halogen-free: Yes
• RoHS compliant: Yes
• REACH compliant: Yes
• Standard: DIN EN 50085-1

Recommendations

For a complete internal corner solution, pair with matching BRS trunking lengths and covers. Ensure the trunking dimensions match 68x130 mm for a precise fit.
