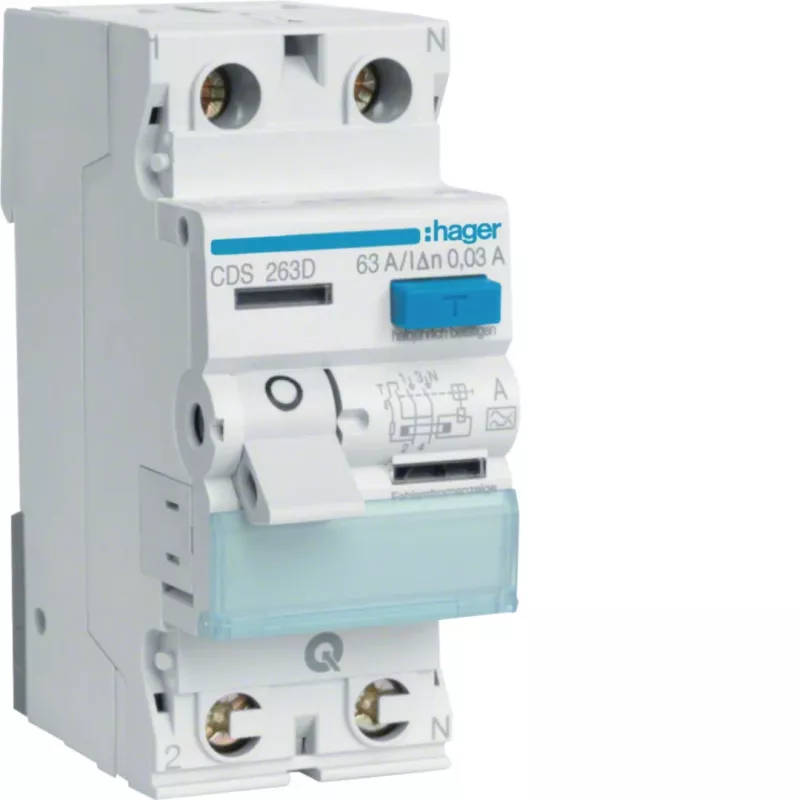

Hager CDS263D interruptor diferencial 2 polos 63A 30mA tipo A 6kA QuickConnect

The Hager CDS263D is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against earth faults. With a rated current of 63A and a rated residual operating current of 30mA, it ensures safety in residential and commercial electrical installations. This 2-pole device features Type A sensitivity, making it suitable for circuits with electronic loads. The QuickConnect technology at the bottom terminals simplifies installation, while the top terminals accept screw connections. Compliant with EN 61008-1, it offers a short-circuit breaking capacity of 6kA and operates on a standard DIN rail.

Advantages

QuickConnect technology reduces installation time and ensures secure connections. Compact 2-module width saves space in distribution boards. Type A residual current detection provides enhanced protection for modern appliances with electronic components.

Suitable for

• Residential and commercial electrical systems requiring earth fault protection
• Circuits with electronic devices such as computers, inverters, and LED lighting
• Installations where space is limited and quick wiring is desired

Key specifications

• Product Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 2-pole
• Rated Current (In): 63 A
• Rated Residual Operating Current (IΔn): 30 mA
• Residual Current Type: Type A
• Rated Voltage (Un): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Connection Type: QuickConnect (bottom), Screw (top)
• Mounting Type: DIN rail
• Module Width: 2 modules (35 mm)
• Degree of Protection: IP20 (terminals), IP40 (device in enclosure)
• Operating Temperature Range: -25 to 40 °C
• Standards: EN 61008-1
• Terminal Capacity (Top - Rigid): 1-35 mm²
• Terminal Capacity (Bottom - Rigid): 1.5-25 mm²

Recommendations

For optimal safety, pair this RCCB with a compatible MCB from Hager's range. Ensure proper installation by a qualified electrician.
