Hager FP92W4N módulo de transformador de corrente até 250A 4 polos

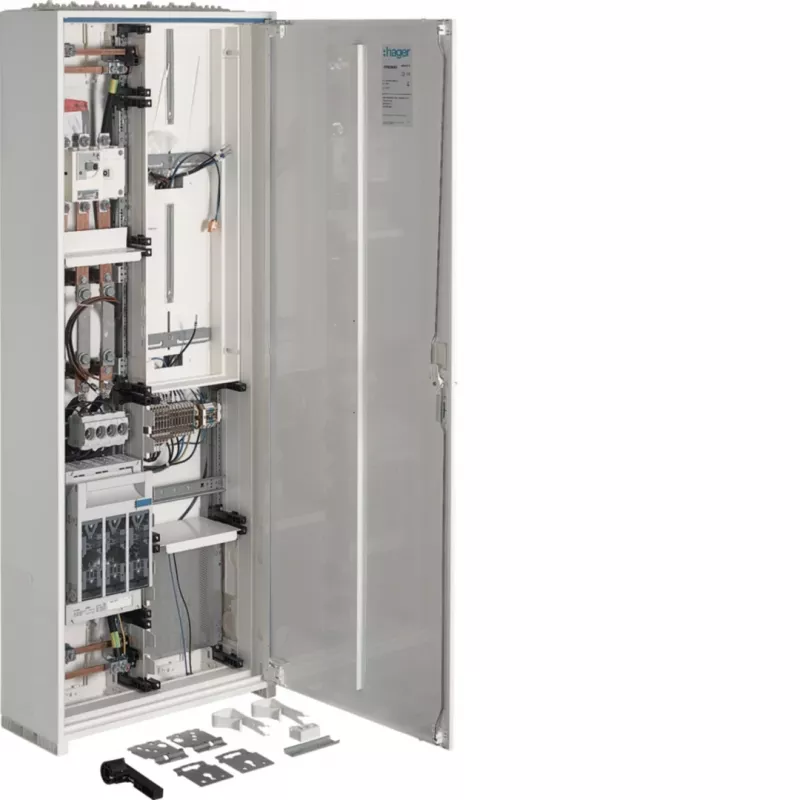

The Hager FP92W4N is a high-quality current transformer assembly designed for indirect metering in meter cabinets. It supports up to 250A rated current and is suitable for 3-phase, 4-conductor systems. This unit is built with a robust steel sheet housing in RAL 7035 light grey, ensuring durability and compliance with DIN VDE 0603-1 and DIN 43870-1 standards.

Advantages

Integrated busbar system for easy installation; screw terminal connections for secure wiring; compact 12-module width fits standard meter cabinets; IP2XC protection for internal components.

Suitable for

• Indirect metering in residential and commercial meter cabinets
• Current transformer installations up to 250A
• 3-phase, 4-conductor systems (230/400V AC)

Key specifications

• Rated Current: 250 A
• Number of Poles: 4-pole
• System Type: 3-phase, 4-conductor
• Rated Voltage: 230/400 V AC
• Protection Class: IP2XC
• Material: Steel sheet
• Colour: RAL 7035 (Light Grey)
• Mounting: Internal in meter cabinet
• Number of Current Transformers Supported: 3
• Busbar System: Integrated
• Connection: Screw terminals
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4101
• Module Width: 12 modules

Recommendations

For optimal performance, ensure compatibility with your meter cabinet dimensions and follow local installation guidelines. This assembly is ideal for new installations or upgrades to indirect metering systems.
