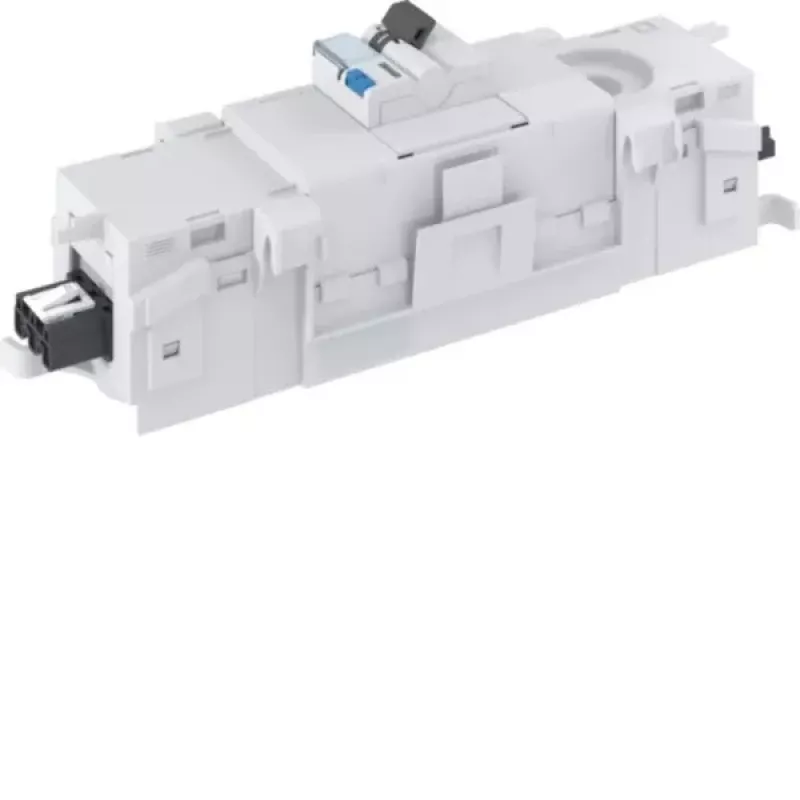

Hager GKEV03SET12 Quadro de distribuição mini para canal de peitoril OT80, 1 fila, 12 módulos, com 1x ADA516D RCBO 16A 30mA Tipo A

In surface-mounted electrical installations where space is tight and trunking is already in place, finding a distribution board that fits cleanly without extra adapters can be a challenge. The Hager GKEV03SET12 solves this by mounting directly onto Hager OT80 trunking, providing a neat 12-module enclosure with a pre-installed RCBO for immediate protection.

Who is it for

Electricians and panel builders working on residential or light commercial projects that use Hager OT80 trunking systems. It suits installations where a single row of devices is sufficient and where a residual current protective device is required from the start.

Main features

• Designed for Hager OT80 trunking system, no additional mounting frame needed.
• Pre-fitted with Hager ADA516D RCBO: 1P+N, 16 A, 30 mA, Type A, 6 kA breaking capacity.
• 12 modules (TE) in one row, enough for a small distribution circuit.
• Plastic housing in white (RAL 9010), IP30 protection.
• Includes PE/N terminal blocks for quick wiring.

Specifications

• Mounting type: for trunking system (Hager OT80)
• Number of modules: 12
• Number of rows: 1
• Degree of protection: IP30
• Housing material: plastic
• Housing colour: white (RAL 9010)
• Included device: RCBO Hager ADA516D
• RCBO poles: 1P+N
• RCBO rated current: 16 A
• RCBO rated residual current: 30 mA
• RCBO type: A
• RCBO short-circuit breaking capacity: 6 kA
• Rated voltage: 230 V AC
• Rated frequency: 50/60 Hz
• Terminal blocks included: PE/N

Tips

Check that your trunking is indeed Hager OT80 before ordering, as the mounting interface is specific. The pre-installed RCBO saves time on site, but ensure the 16 A rating matches your circuit requirements.
