HAGER K50AE terminal de terra 2,5-50 mm² verde-amarelo

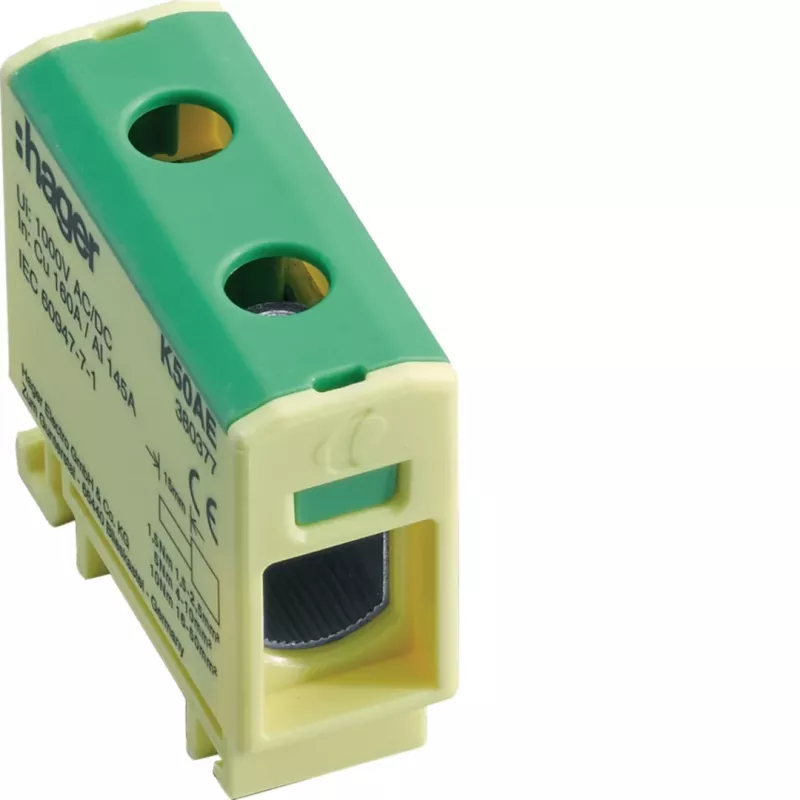

Protective earth (PE) terminal with screw connection for conductors from 2.5 to 50 mm². The green-yellow insulating body provides clear identification for grounding applications, and the two clamping points allow secure connection of protective conductors.

Advantages

Direct mounting without additional accessories and a wide clamping range make this terminal suitable for various installation scenarios. The polyamide insulating body ensures durability and mechanical stability.

Suitable for

• Protective earth connections in distribution boards
• Industrial control panels
• Building installation grounding

Key specifications

• Conductor cross-section: 2.5 - 50 mm² (flexible and rigid)
• Connection method: screw connection
• Number of clamping points: 2
• Number of poles: 1
• Colour: green-yellow
• Rated current: 150 A
• Rated insulation voltage: 1000 V

Recommendations

Use this terminal for reliable PE connections in installations requiring a large conductor cross-section range. Ensure proper torque when tightening screws to maintain secure contact.
