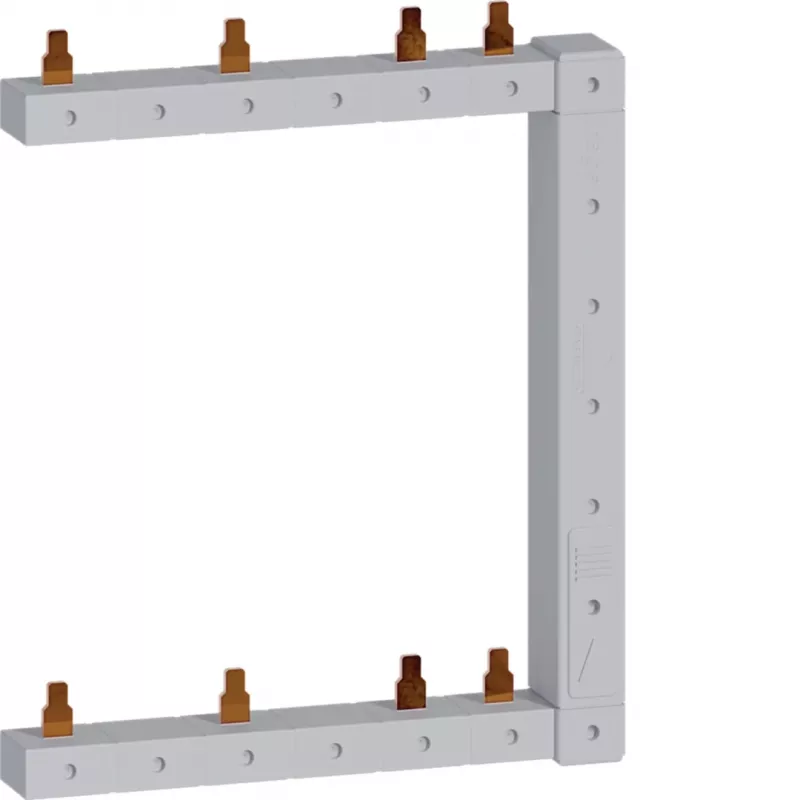

HAGER KCF563R barra de fases vertical direita 2 polos 3 módulos 63 A

Electricians and panel builders use the HAGER KCF563R vertical phase busbar to distribute power to modular devices like miniature circuit breakers and residual current devices in distribution boards. This 2-pole busbar connects to the right side of devices and supports three modules.

Key specifications

• Product type: Pin busbar
• Number of poles: 2
• Number of modules: 3
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Connection type: Pin type
• Mounting orientation: Vertical
• Connection side: Right
• Conductor material: Copper
• Insulation material: Self-extinguishing plastic
• Rated insulation voltage: 500 V
• Conductor cross-section: 10 mm²
• Colour: Grey
• Compatibility: Modular devices (MCBs, RCDs)
• Mounting: DIN rail compatible

Why choose it

The copper conductor ensures reliable low-resistance power distribution, while the self-extinguishing plastic insulation enhances safety. The pin-type connection allows quick and secure attachment to compatible devices.

Ideal use cases

• Residential distribution boards
• Commercial electrical panels
• Industrial control cabinets

Good to know

The busbar is designed for vertical mounting and connects from the right side, making it suitable for compact installations where space is limited.
