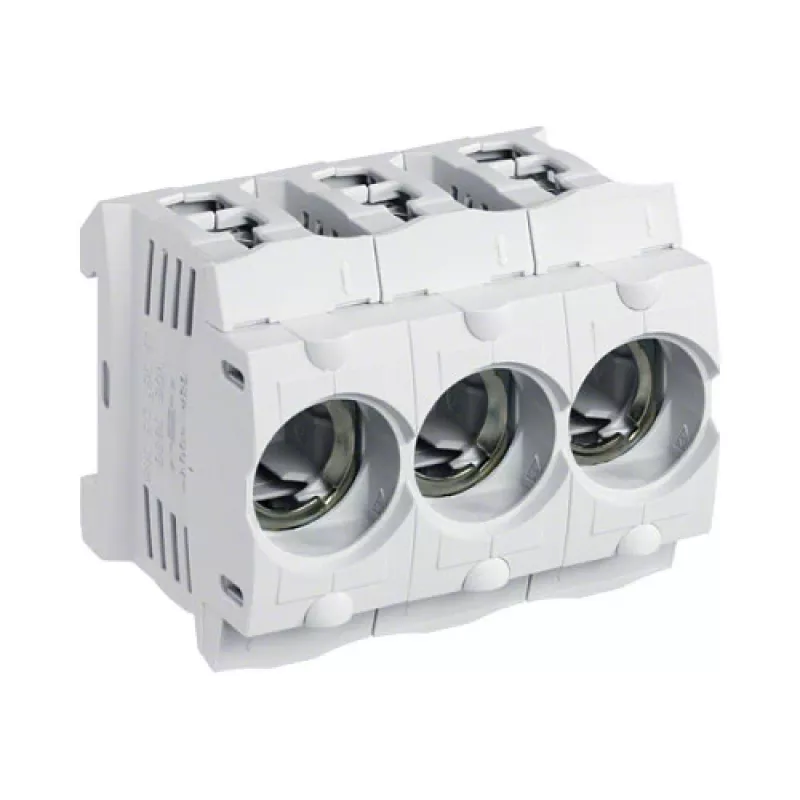

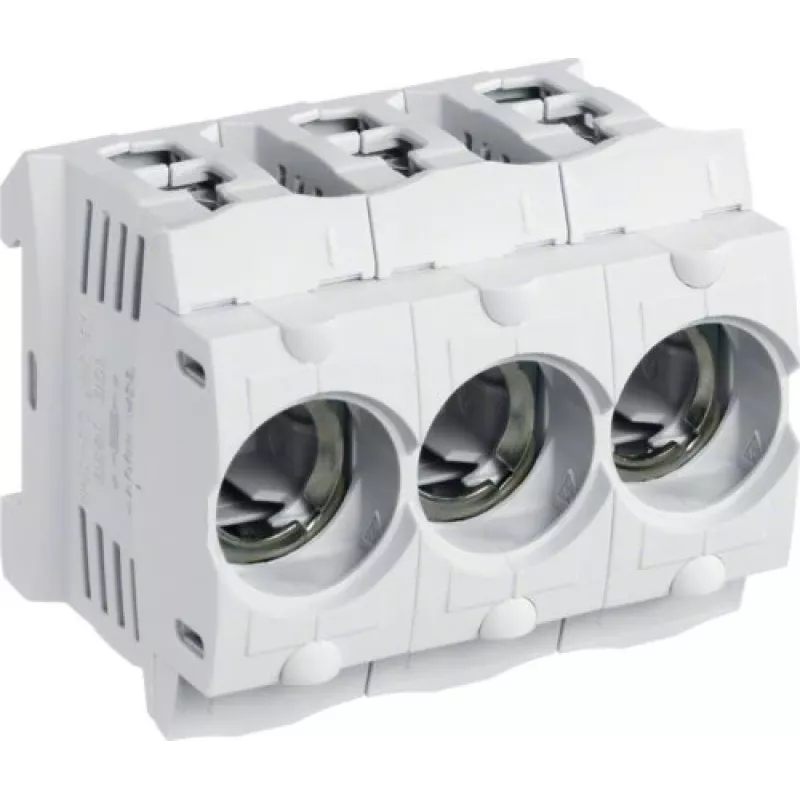

Hager LD047 D01 Suporte de fusível 3 polos 16A E14 para calha DIN, com grampo de fixação

The Hager LD047 stands out as a three-pole D01 fuse base built for DIN rail mounting, combining a compact 3-module width with a 16 A rating and E14 fuse cap compatibility. Its frame terminal connection accepts rigid conductors up to 16 mm² and flexible conductors up to 10 mm², making it a practical choice for distribution boards where space and reliable connections matter.

Highlights

• 3-pole D01 fuse base rated at 16 A
• E14 fuse cap size for standard D01 fuse links
• DIN rail mounting (EN 60715) with 3 TE module width
• Frame terminal connection for rigid and flexible conductors
• Plastic housing in grey

Full specifications

• Rated voltage: 400 V AC / 250 V DC
• Conductor cross-section: 1.5–16 mm² rigid, 1.5–10 mm² flexible
• Degree of protection: IP20
• Operating temperature: -5 to 40 °C
• Storage temperature: -25 to 70 °C
• Short-circuit breaking capacity: 50 kA
• Standards: IEC/EN 60269-1, VDE 0636

Final note

A reliable three-pole fuse base for D01 fuse links, designed for straightforward DIN rail installation and secure frame terminal wiring.
