Hager LF4009069016 tampa terminal para canal de cabos LF 40x90mm, isento de halogéneos, branco tráfego (RAL 9016)

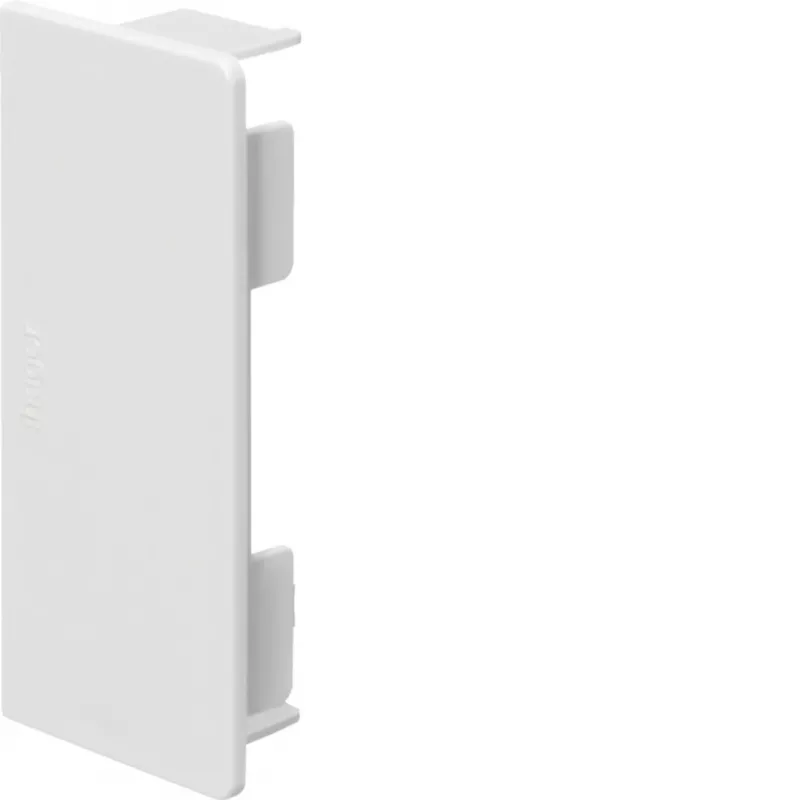

Electricians and panel builders finishing a Hager Tehalit LF cable trunking run use this end cap to close off the open end of a 40x90mm duct. It snaps onto the trunking profile and provides a clean, safe termination that prevents dust and accidental contact with conductors.

Key specifications

• Compatible with Hager Tehalit LF cable trunking, 40 x 90 mm
• Material: halogen-free plastic
• Colour: traffic white (RAL 9016)
• Mounting: snap-on / clip-on
• Universal left/right application
• Self-extinguishing
• Operating temperature: -5°C to +60°C
• Standards: EN 50085-1, EN 50085-2-1

Why choose it

The halogen-free material reduces smoke and toxic gas emissions in the event of fire, making it suitable for public buildings and areas with strict safety requirements. The snap-on design allows quick installation without tools, and the traffic white finish matches the trunking for a seamless appearance.

Ideal use cases

• Terminating cable trunking ends in offices, schools, and hospitals
• Retrofitting existing LF trunking installations
• Maintaining fire safety compliance in escape routes

Good to know

The end cap is sold individually and fits both left and right ends of the trunking. For a complete installation, order one cap per open end.
