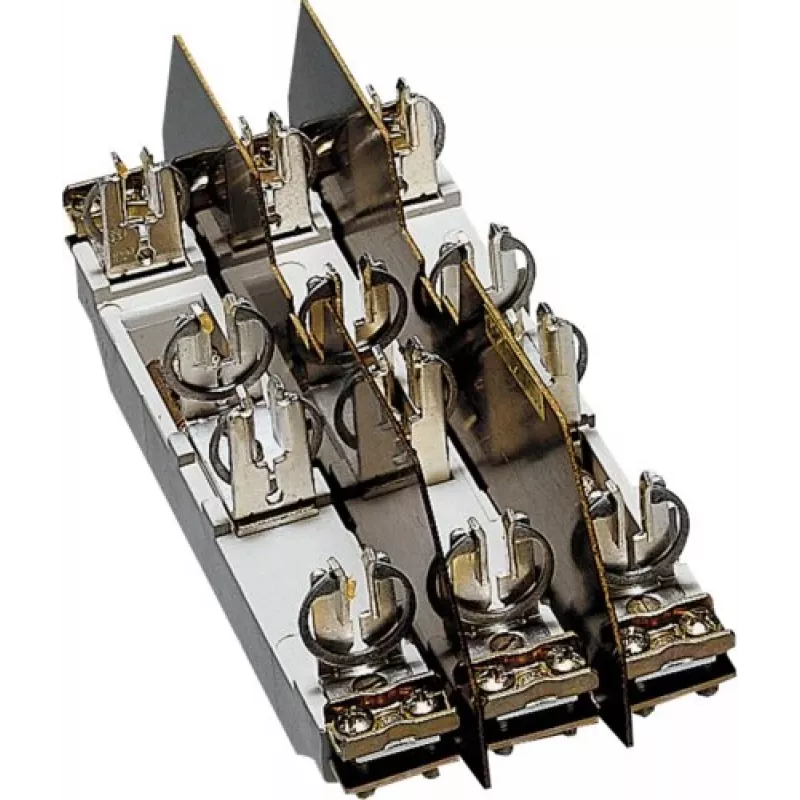

Hager NH00 Base de seccionador de fusíveis, 160A, 3 polos, Tandem, 690V AC L00T

NH fuse switch disconnector base for NH00 fuses, rated 160 A, 3-pole, designed for tandem mounting on 60 mm busbar systems. Its compact tandem design saves space in distribution boards while providing reliable fuse protection.

Advantages

Space-saving tandem design allows two fuse bases side by side on a 60 mm busbar system. Screw terminals accept conductors from 1.5 to 70 mm² (main) and 1.5 to 50 mm² (outgoing), ensuring flexible wiring. High-grade thermoplastic housing offers durability and IP20 protection at terminals.

Suitable for

• Industrial distribution boards
• Motor control centers
• Power distribution in commercial buildings

Key specifications

• Fuse type: NH fuse, size NH00
• Rated current: 160 A
• Number of poles: 3
• Rated operating voltage AC: 690 V
• Rated insulation voltage: 1000 V
• Mounting system: 60 mm busbar system
• Connection method: screw terminals
• Main conductor cross-section: 1.5 - 70 mm²
• Outgoing conductor cross-section: 1.5 - 50 mm²
• Degree of protection (terminals): IP20
• Housing material: high-grade thermoplastic
• Operating temperature range: -25 to +55 °C
• Conditional short-circuit current: 50 kA
• Colour: grey

Recommendations

For reliable fuse protection in compact distribution boards, pair with NH00 fuse links up to 160 A. Ensure proper torque on screw terminals to maintain connection integrity.
