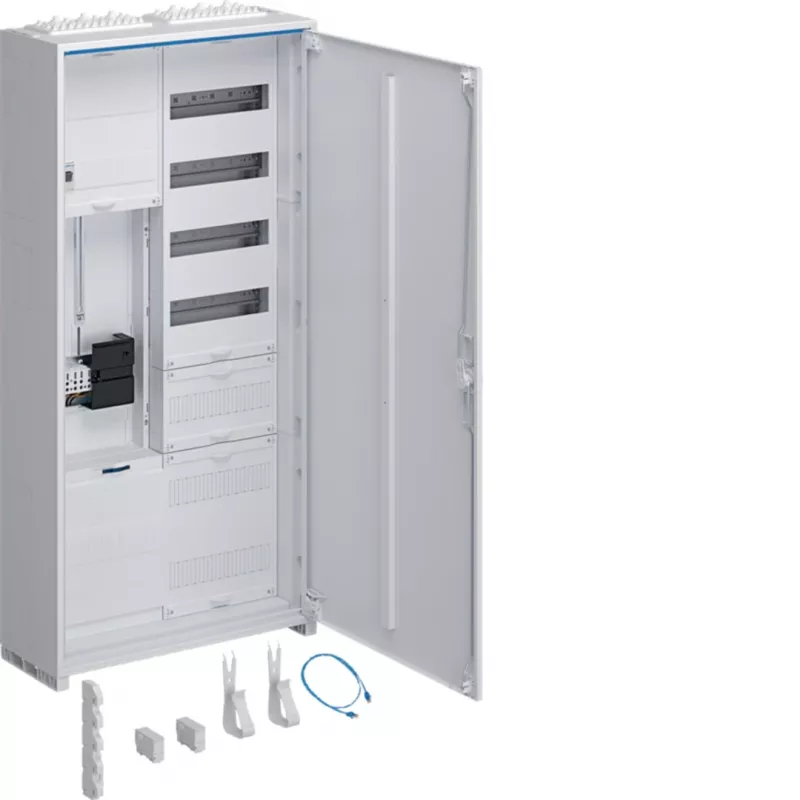

Hager Quadro de contadores completo ZB325C15LS 1 lugar de contador 5 filas de distribuição campo APZ 1100mm branco tráfego

The Hager ZB325C15LS complete meter cabinet stands out with its integrated APZ field and pre-wired metering section, ready for immediate installation in residential or commercial electrical systems. It combines a single meter place with five distribution rows in a compact, surface-mountable enclosure.

Highlights

• 1 meter place (ZP) with pre-wired metering field
• 5 distribution rows (RH), each with 12 modules (TE)
• Integrated APZ field for communication modules
• Universal mounting: surface, flush, or recessed
• Protection class IP44, electrical class II (double insulated)
• Sheet steel construction in traffic white (RAL 9010)
• Rated current 63 A, rated voltage 230/400 V AC
• Reversible hinged door with double-bit lock
• Pre-punched knockouts for cable entry
• PE/N terminals included

In daily use

This cabinet simplifies meter installation and distribution. The pre-wired metering field reduces wiring time, while the APZ field provides dedicated space for smart meter communication devices. The five distribution rows accommodate up to 60 modules, offering flexibility for circuit breakers, RCDs, and other modular devices. The reversible door and multiple cable entry points make it adaptable to various installation conditions.

Full specifications

• Product type: Complete meter cabinet
• Brand series: Hager ZB
• Number of meter places (ZP): 1
• Number of distribution rows (RH): 5
• APZ field: Yes
• Mounting type: Universal (surface, flush, recessed)
• Protection class (IP): IP44
• Protection class (electrical): II
• Material: Sheet steel
• Colour: Traffic white (RAL 9010)
• Rated current (In): 63 A
• Rated voltage (Un): 230/400 V AC
• Modules per distribution row (TE): 12
• Door type: Single door, hinged (reversible)
• Lock type: Double-bit lock
• Cable entry: Pre-punched knockouts (top/bottom/side)
• PE/N terminals: Included
• Standards compliance: VDE, TAB
• Pre-wiring: Metering field pre-wired
• Application: Residential and commercial electrical installations

Final note

Designed for compliance with German TAB regulations, this cabinet is a reliable choice for modern meter installations requiring communication readiness.
