HAGER quadro encastrar 3R/36M II cl IP30 QC (VU

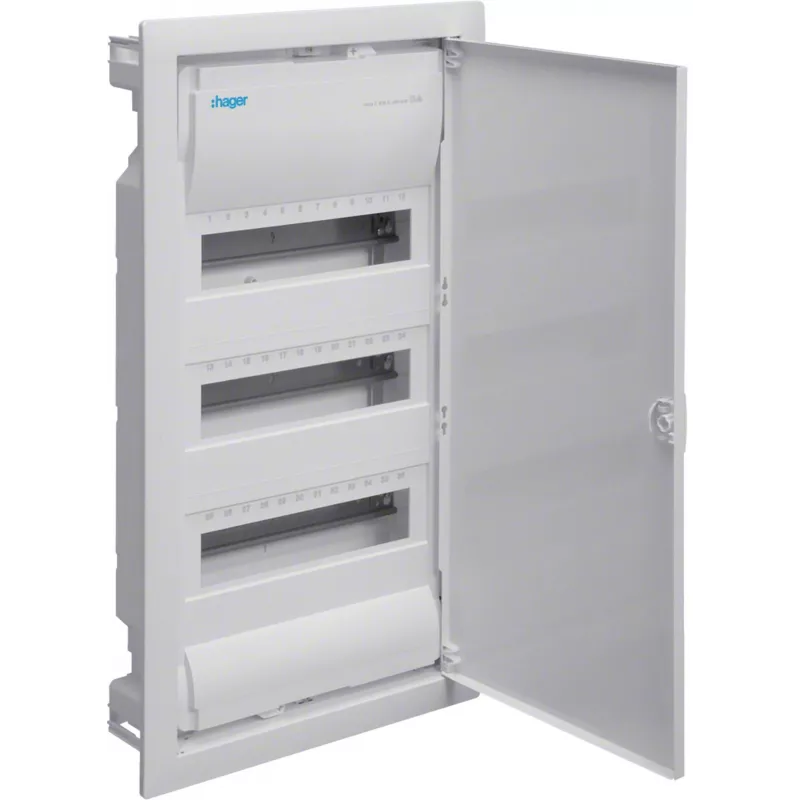

The HAGER VU36AT flush-mounted switchboard is a high-quality distribution board designed for residential and commercial electrical installations. With 3 rows and 36 modules (12 per row), it provides ample space for circuit breakers, RCDs, and other DIN rail components. Its Class II insulation and IP30 protection ensure safety and durability in indoor environments.

Advantages

This switchboard offers easy installation with a reversible opaque door, 180° opening angle, and integrated earth and neutral terminal blocks. The technoplastic enclosure is self-extinguishing and glow wire tested at 650°C, meeting stringent safety standards.

Suitable for

• Flush-mounted electrical distribution in residential buildings
• Commercial installations requiring up to 36 modules
• Applications needing Class II insulation and IK07 impact resistance

Key specifications

• Mounting: Flush-mounted
• Rows: 3, Modules: 36 (12 per row)
• Protection: IP30, IK07
• Insulation Class: II
• Material: Technoplastic, white (RAL 9003)
• Door: Opaque, reversible, 180° opening
• Rated voltage: 400 V AC, Insulation voltage: 500 V
• Impulse withstand: 2.5 kV
• Terminals: Earth (2x16 mm² + 16x6 mm²), Neutral (2x16 mm² + 16x6 mm²)
• Standards: IEC 60439-3, IEC 61439-3, EN 50298, IEC 60670-24

Recommendations

For optimal performance, use with HAGER modular devices and ensure proper earthing. Suitable for indoor use only.
