HAGER suporte de terminais com 2x14 terminais PE/N QuickConnect FZ381

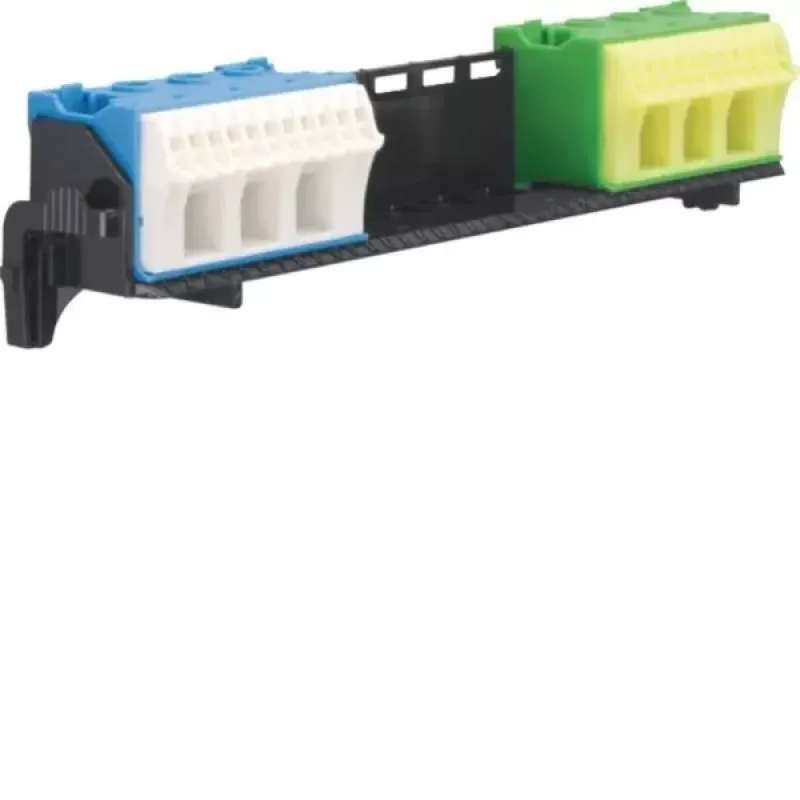

The HAGER FZ381 is a high-quality terminal carrier designed for efficient and safe distribution of protective earth (PE) and neutral (N) conductors in electrical distribution boards. Featuring 14 PE and 14 N terminals with QuickConnect spring-clamp technology, it ensures fast, tool-free wiring and reliable connections for rigid and flexible conductors.

Advantages

QuickConnect spring-clamp terminals reduce installation time and eliminate the need for screw tightening. The finger-safe IP2X protection enhances safety during operation. Compact 12-module width saves space in enclosures.

Suitable for

• Main and sub-distribution boards
• Hager univers Z, univers N, and univers FW enclosures
• Residential, commercial, and industrial electrical installations

Key specifications

• Product Type: Terminal Carrier with Busbars
• Number of PE Terminals: 14
• Number of N Terminals: 14
• Connection Technology: QuickConnect (Spring-clamp)
• Rated Current: 63 A
• Rated Voltage: 400 V AC
• Conductor Cross-section (Rigid): 1.5 - 4 mm²
• Conductor Cross-section (Flexible with Ferrule): 1.5 - 2.5 mm²
• Mounting Type: Snap-on for Distribution Boards
• Module Width: 12 Modules (approx. 216 mm)
• Material (Carrier): Insulating Plastic
• Material (Terminals): Copper / Brass
• Terminal Color (N): Blue
• Terminal Color (PE): Green/Yellow
• Protection Degree: IP2X (Finger-safe)
• Standard: DIN VDE 0603-1, EN 61439-1/3

Recommendations

For optimal performance, use with Hager distribution boards and ensure conductors are properly stripped before insertion into QuickConnect terminals.
