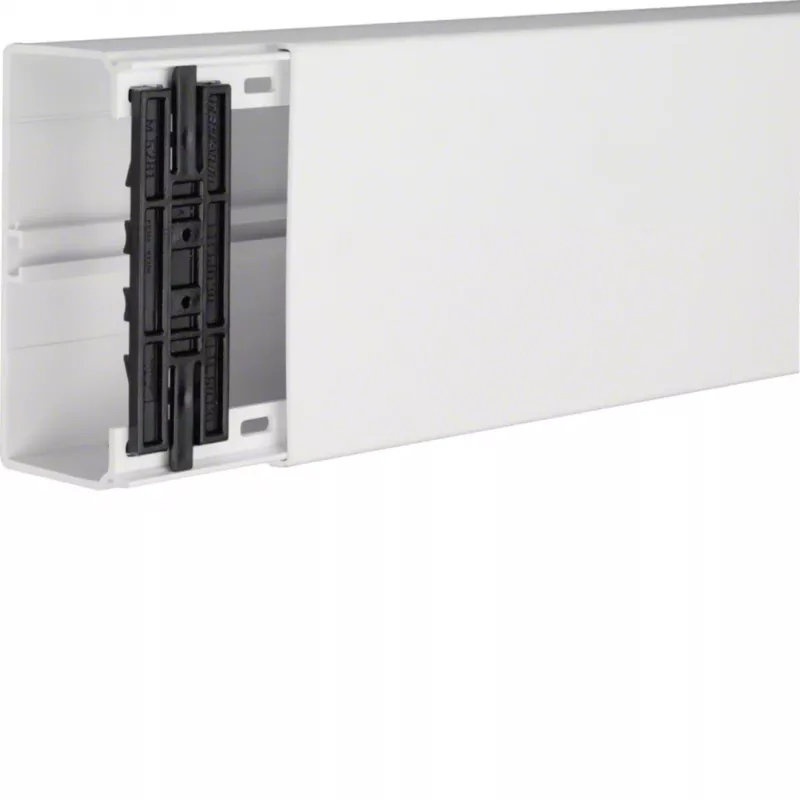

HAGER TEH FB6013009016 Sistema de canal de cabos com opção de montagem de aparelhos/parede divisória, PVC, branco puro, 60x130x2000 mm

Managing cables in commercial or residential spaces often becomes a challenge when you need to accommodate devices or separate power and data lines. The HAGER TEH FB6013009016 cable trunking system solves this by providing a robust PVC channel with built-in options for device installation and partition walls, ensuring a clean and organized cable layout.

Who is it for

This trunking is ideal for electricians, facility managers, and installers who require a flexible cable management solution in offices, schools, hospitals, or industrial environments. It is particularly suited for projects where devices such as sockets or data outlets need to be integrated directly into the trunking, and where future expansion with partition walls is anticipated.

Main features

• Single-compartment PVC trunking with clip-on lid for easy access and maintenance.
• Integrated device installation option for mounting sockets, switches, or data modules.
• Partition wall option allows separation of power and data cables within the same channel.
• Self-extinguishing PVC material for enhanced fire safety.
• Pure white (RAL 9010) matte finish blends with most interiors.
• Wall or ceiling mountable with a length of 2000 mm for continuous runs.

Specifications

• Product type: Cable trunking system
• Material: PVC (Polyvinyl Chloride)
• Colour: Pure White (RAL 9010)
• Height: 60 mm
• Width: 130 mm
• Length: 2000 mm
• Number of compartments: 1 (expandable with partition walls)
• Halogen-free: No
• Self-extinguishing: Yes
• Temperature resistance: -5°C to +60°C
• Protection class: IP30 (with lid)
• Mounting type: Wall/Ceiling mount
• Device installation option: Yes
• Partition wall option: Yes
• Lid type: Clip-on
• Surface finish: Matte
• Manufacturer series: FB Series

Tips

For best results, use HAGER-compatible partition walls and device boxes to ensure a perfect fit. When cutting the trunking to length, use a fine-tooth saw to avoid burrs on the PVC edges. The clip-on lid can be removed for cable laying and snapped back securely without tools.
