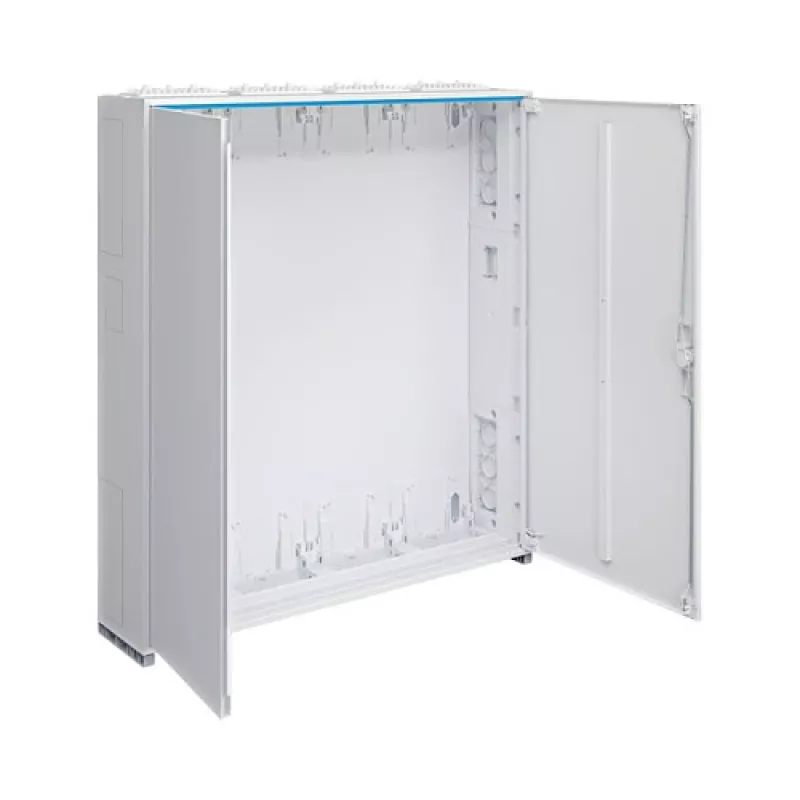

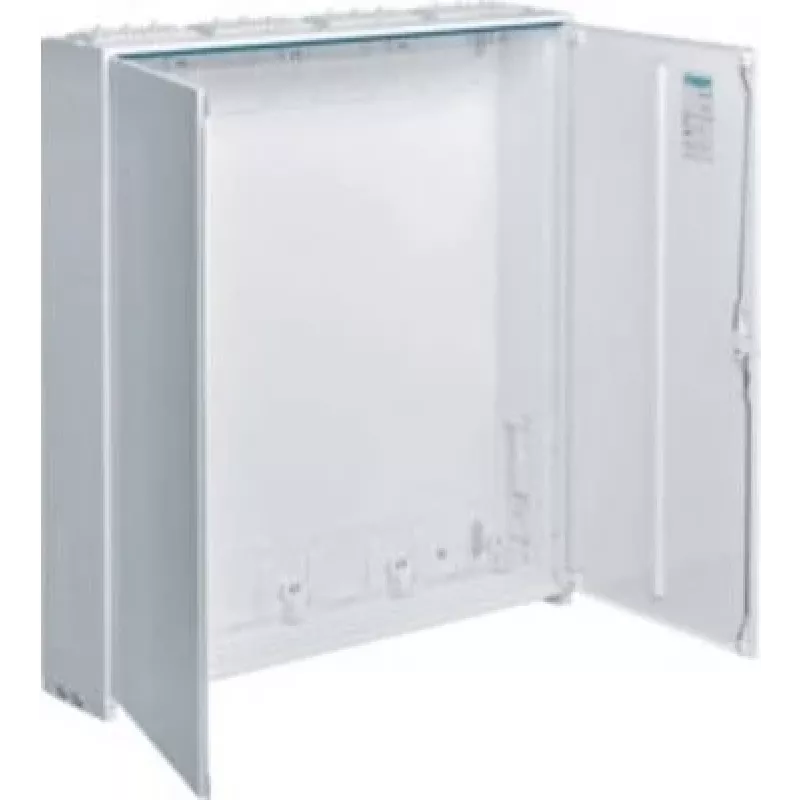

Hager universZ ZB34S armário universal de contadores, 1100x1050x205mm, 336 PLE, branco

Organizing and protecting electrical metering and distribution equipment in residential or commercial buildings requires a robust, standardized enclosure. The Hager universZ ZB34S provides a universal meter cabinet solution with three meter fields and a total of 336 module units, accommodating a wide range of installation needs.

Who is it for

Electricians and installers working on building electrical infrastructure who need a compliant, versatile cabinet for meter mounting and power distribution. Suitable for both flush-mounted and surface-mounted applications.

Main features

• Universal mounting: can be installed flush-mounted or surface-mounted.
• Three meter fields, each with four rows, providing 336 PLE (module units).
• Steel sheet construction with a lockable steel door, finished in white (RAL 9010).
• Degree of protection IP44 with door closed.
• Protection class II (double insulated).
• Pre-punched knockouts for cable entry on top, bottom, and sides.
• Prepared for 5-pole busbar system and earthing connection.
• Dimensions: 1100 mm height, 1050 mm width, 205 mm depth.

Specifications

• Brand: Hager
• Model: ZB34S
• Series: universZ
• Product type: Universal meter cabinet
• Material: Steel sheet
• Colour: White (RAL 9010)
• Degree of protection: IP44
• Protection class: II
• Mounting type: Universal (flush-mounted / surface-mounted)
• Number of meter fields: 3
• Rows per meter field: 4
• Total module units (PLE): 336
• Rated voltage: Up to 400 V AC
• Rated current: Up to 63 A (application dependent)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Certifications: VDE, CE
• Height: 1100 mm
• Width: 1050 mm
• Depth: 205 mm

Tips

Verify local regulations and utility requirements before installation. The cabinet is designed for use with Hager busbar systems and accessories to ensure proper fit and compliance.
