Hager WLS1100BG tomada SCHUKO brilhante preto série R.Classic

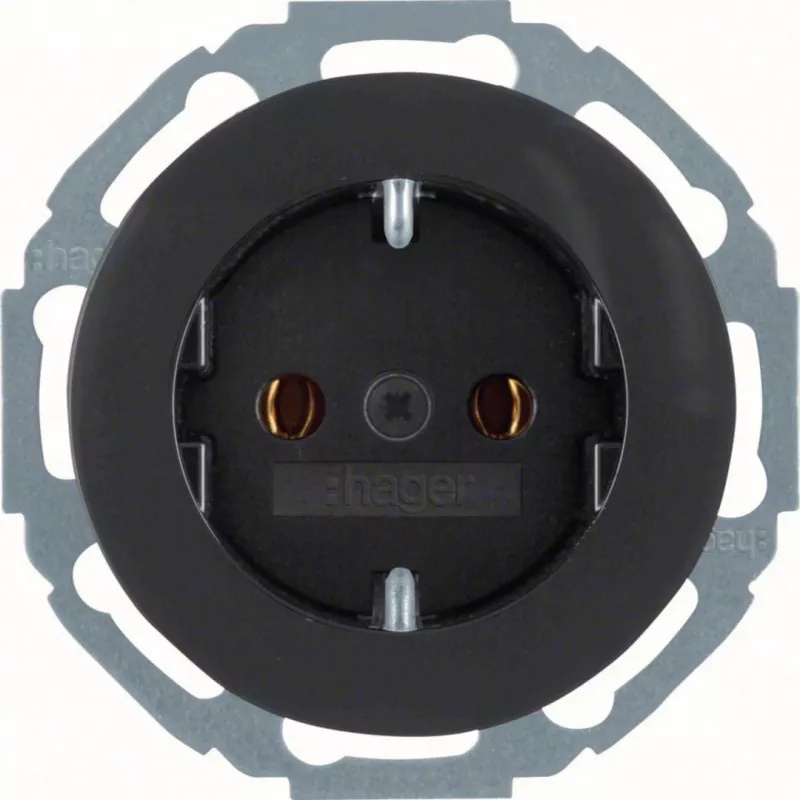

The Hager WLS1100BG is a high-quality SCHUKO (Type F) socket outlet from the R.Classic design series, featuring a glossy black finish. This flush-mounted socket is ideal for residential and commercial installations, offering reliable performance and a modern aesthetic.

Advantages

Integrated child protection ensures safety in households with children. The glossy black surface is UV-stabilized and halogen-free, providing durability and resistance to discoloration. Screw terminals allow for secure and easy connection of rigid conductors up to 2.5 mm².

Suitable for

• Standard flush-mounted boxes (Ø 60 mm)
• Indoor use in dry environments (IP20)
• Hager R.Classic switch and socket systems

Key specifications

• Socket Standard: SCHUKO (Type F)
• Number of Sockets: 1-gang
• Mounting Type: Flush-mounted
• Colour: Glossy Black
• Material: Thermoplastic
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Protection Rating: IP20
• Connection Type: Screw terminals
• Child Protection: Yes (Integrated)
• Design Series: Hager R.Classic
• Halogen-Free: Yes
• Surface Finish: Glossy
• Terminal Capacity: 1.5 - 2.5 mm² (rigid conductors)
• Number of Poles: 2P+E
• UV-Stabilized: Yes

Recommendations

For a complete installation, pair with Hager R.Classic frames and matching switches. Ensure the flush-mounted box is properly installed before mounting.
