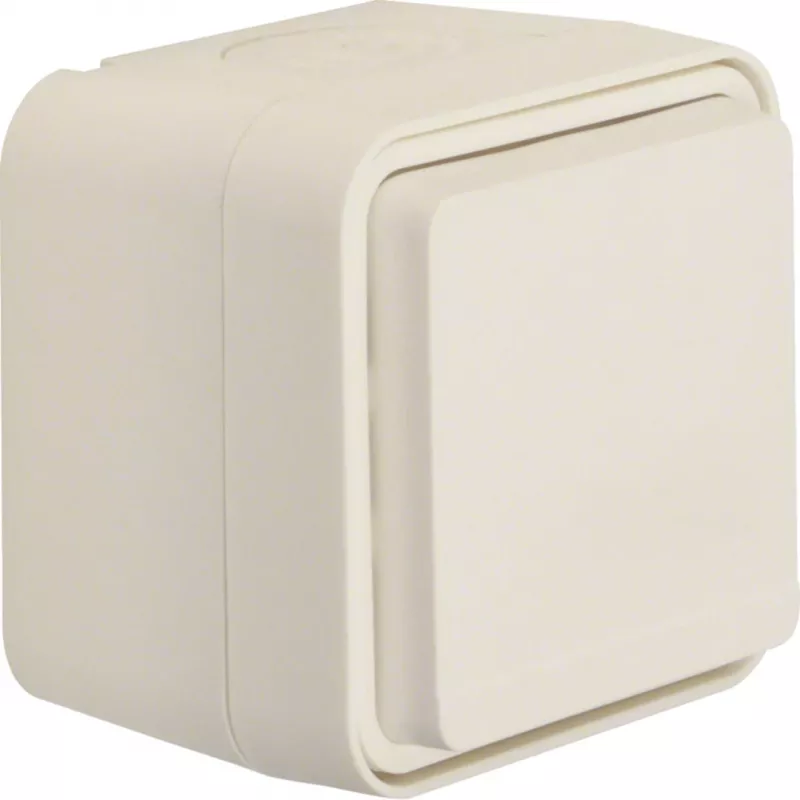

HAGER WNC160B Tomada SCHUKO, saliente, tampa basculante, proteção reforçada contra contacto, branco polar

The HAGER WNC160B sets itself apart with a hinged lid that keeps the socket sealed when not in use, making it a practical choice for damp rooms and outdoor areas where splashes are a concern. Its increased touch protection adds an extra layer of safety, especially in households with children.

Highlights

• SCHUKO (Type F) socket outlet with hinged lid
• Surface-mounted installation for easy retrofitting
• Increased touch protection (child protection)
• IP44 splash-proof rating
• Polar white thermoplastic housing, halogen-free

In daily use

Rated for 16 A / 250 V AC, the WNC160B handles standard household and light commercial loads. Screw terminals accept conductors up to 2.5 mm² rigid. The hinged lid snaps shut to protect the contacts from dust and moisture, while the IK05 impact resistance ensures durability in busy areas.

Full specifications

• Socket type: SCHUKO (Type F)
• Sockets quantity: 1
• Mounting type: Surface-mounted
• Protection type: Increased touch protection
• Cover type: Hinged lid
• IP protection class: IP44
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Material: Thermoplastic
• Halogen-free: Yes
• Colour: Polar white
• Series: Hager W.1
• Terminal capacity: up to 2.5 mm² rigid conductors
• Impact resistance: IK05
• Operating temperature: -25 to +45 °C

Final note

A reliable surface-mounted socket with splash protection and child safety, built to Hager's W.1 series standards.
