Hager WNC167 Tomada SCHUKO à superfície com tampa basculante, campo de identificação, fecho diferente, branco polar

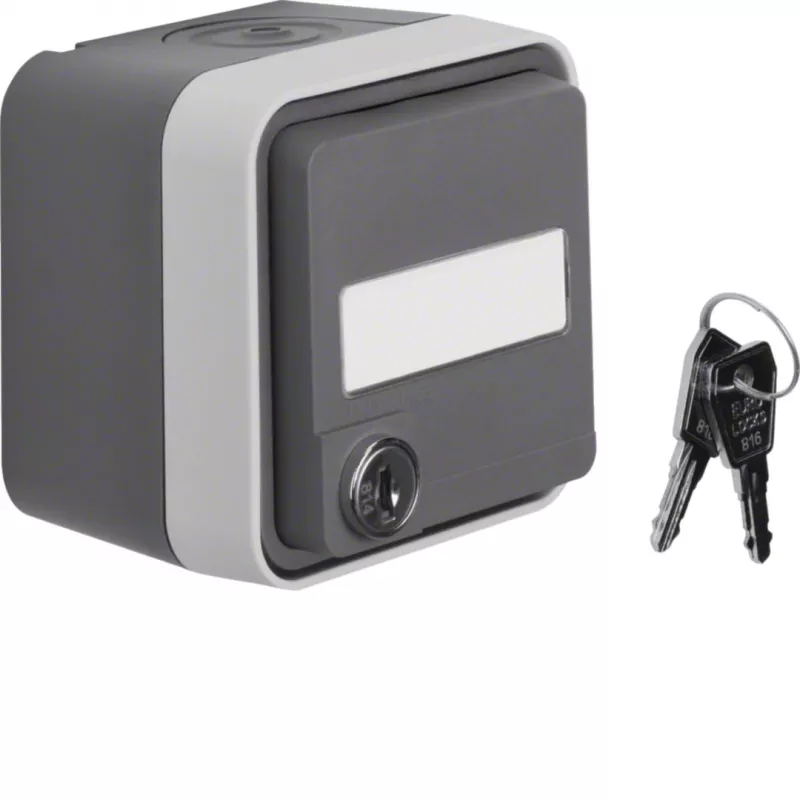

The Hager WNC167 is a high-quality SCHUKO (Type F) socket outlet designed for surface mounting. It features a hinged lid, labeling field, and unequal locking mechanism (Schließung 1), making it ideal for commercial and industrial environments where security and identification are essential. The socket is made from halogen-free thermoplastic and offers IP44 protection when the lid is closed, ensuring durability and safety.

Advantages

Integrated child protection for enhanced safety. Hinged lid protects against dust and moisture (IP44 when closed). Labeling field allows easy identification of circuits. Unequal locking prevents unauthorized use. Halogen-free material reduces toxic fumes in case of fire.

Suitable for

• Commercial buildings
• Industrial facilities
• Workshops and laboratories
• Public areas requiring secure socket outlets

Key specifications

• Socket type: SCHUKO (Type F)
• Mounting: Surface-mounted (AP)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Protection class: IP44 (with lid closed)
• Impact resistance: IK07
• Material: Thermoplastic, halogen-free
• Colour: Polar White (RAL 9010)
• Connection: Screw terminals up to 2.5 mm²
• Special features: Hinged lid, labeling field, child protection, unequal locking
• Operating temperature: -5 to +40 °C
• Series: Hager WNC

Recommendations

For optimal performance, use with Hager surface-mounted boxes and frames. Ensure proper installation by a qualified electrician. The unequal locking mechanism requires a specific key (not included).
