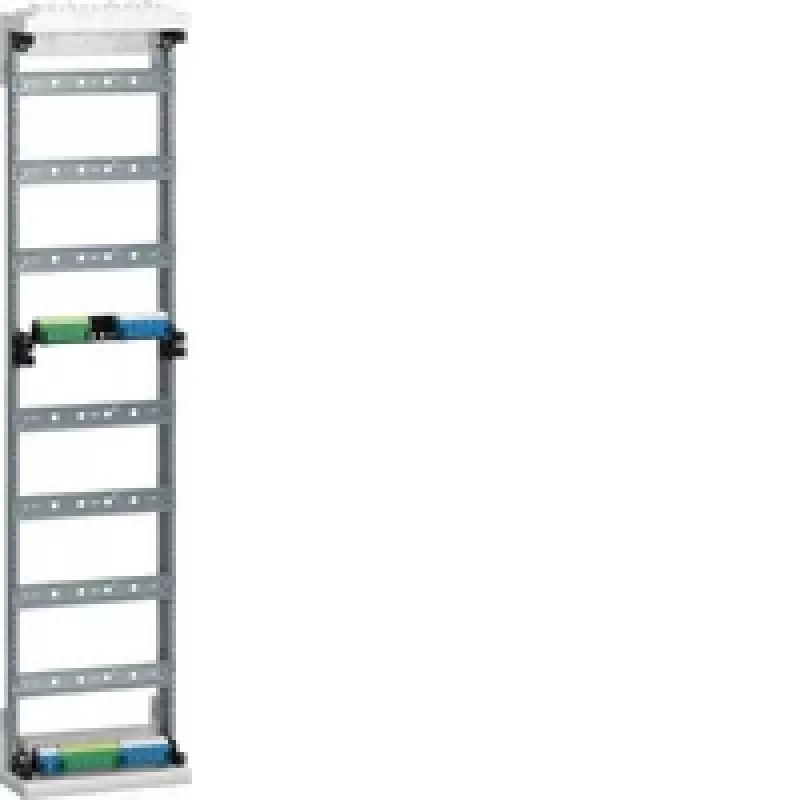

Hager ZAS207BE25A Coluna de ligação de contadores universZ 2 lugares de contador eHZ 5 polos + APZ

The Hager ZAS207BE25A is a high-quality meter connection column from the universZ series, designed for direct metering in residential and small commercial applications. It accommodates up to 2 electronic household meters (eHZ) and features a 5-pole busbar system (3P+N+PE) rated for up to 63 A per meter position. The column is free-standing or partially buried, with an IP44 protection rating and IK10 impact resistance, making it suitable for outdoor installation. It includes an integrated APZ (additional applications space) for future expansions.

Advantages

Robust sheet steel construction with powder-coated finish in RAL 7035 light grey ensures durability and corrosion resistance. The pre-punched bottom cable entry simplifies installation. Complies with DIN VDE 0603-1, DIN 43870-1, and TAB standards, guaranteeing safety and reliability.

Suitable for

• Residential buildings with up to 2 households
• Small commercial units requiring direct metering
• Outdoor meter installations needing weatherproof and impact-resistant enclosures

Key specifications

• Number of Meter Positions: 2
• Meter Type: eHZ (Electronic Household Meter)
• Connection System: 5-pole (3P+N+PE)
• Max. Current per Meter Position: 63 A
• Rated Voltage: 230/400 V AC
• Protection Class: IP44 / IK10
• Material: Sheet steel, powder-coated
• Colour: RAL 7035 (Light Grey)
• Mounting Type: Free-standing / Partially buried
• Integrated APZ: Yes
• Cable Entry: Bottom (pre-punched)
• Operating Temperature: -25°C to +40°C

Recommendations

For optimal performance, use with Hager eHZ meters and compatible accessories. Ensure proper grounding and adherence to local electrical codes during installation.
