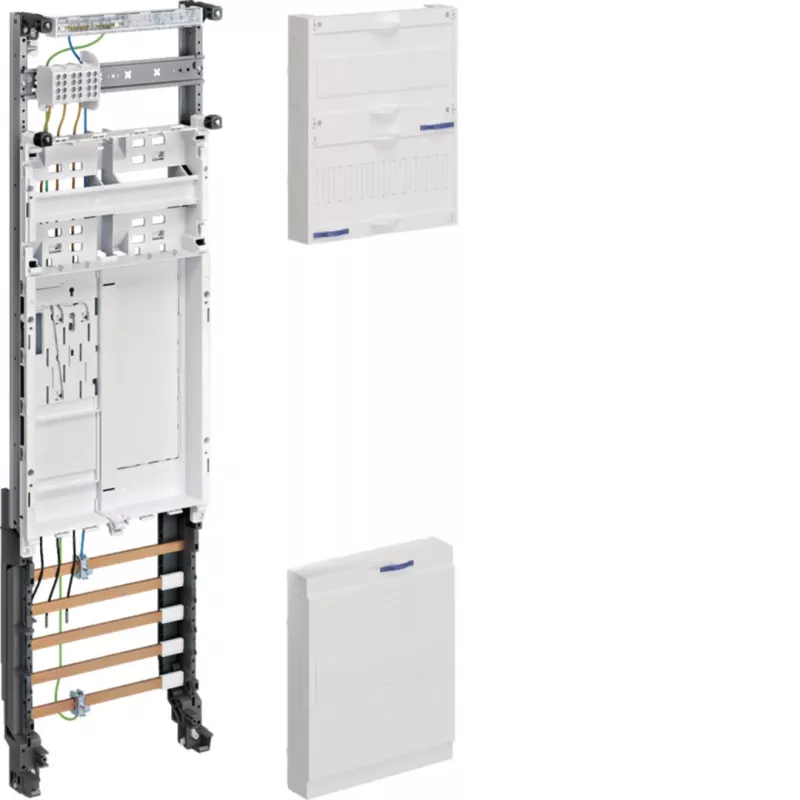

HAGER ZH2EL21 Quadro de Contador Completo 900mm 1 Campo eHZ

Complete metering field for eHZ meters, pre-wired and ready for installation in universal distribution cabinets. The 900mm high, 1-field unit accommodates one electronic household meter and provides three distribution rows for modular devices.

Advantages

Factory-assembled field with 5-pole busbar system and PE/N terminals reduces on-site wiring time. Pre-punched knockouts simplify cable entry.

Suitable for

• Residential electrical installations
• Small commercial metering applications
• Universal distribution cabinets (e.g., Hager univers Z)

Key specifications

• Height: 900 mm
• Width: 250 mm
• Depth: 135 mm
• Distribution rows: 3 (3x12 TE)
• Busbar: 5-pole (L1, L2, L3, N, PE)
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Material: galvanized sheet steel, powder-coated
• Colour: RAL 9010 pure white

Recommendations

Compatible with eHZ meters and Hager universal cabinets. Verify local utility requirements before installation.
