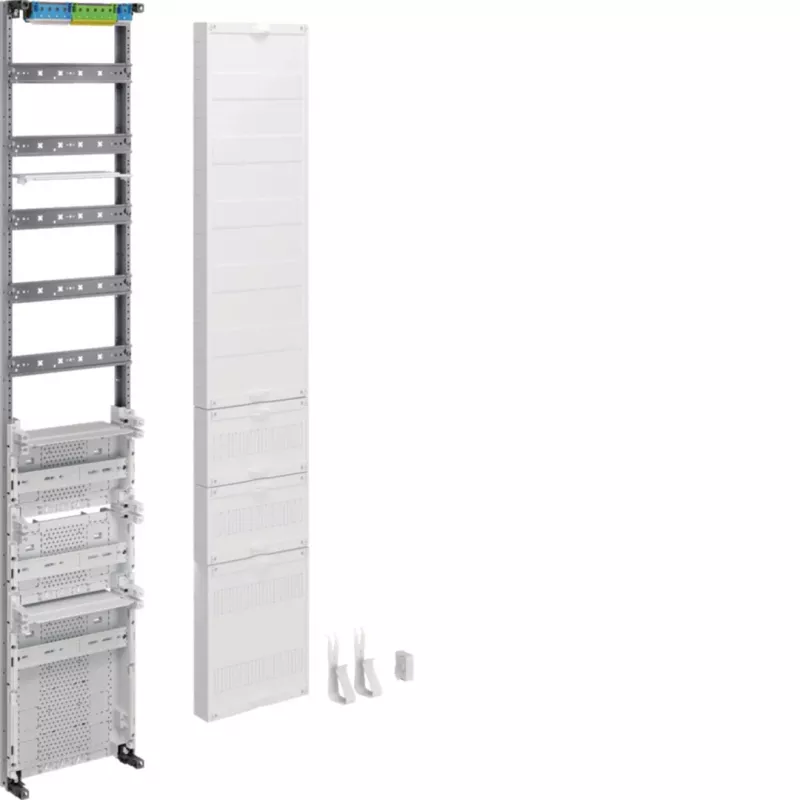

Hager ZU59VT5APZ2 Univers Z painel de contador 2 campos placa de distribuição de 5 polos para 1 contador com espaço APZ

The Hager ZU59VT5APZ2 stands apart from generic distribution enclosures by integrating a dedicated metering position and an APZ (Anschlussplatz für Zusatzgeräte) compartment into a single, compact two-field assembly. This Univers Z panel is engineered for installations where tariff switching, additional device space, and clean 5-pole wiring must coexist without extra enclosures. The cross mounting plate accepts conventional meters or electronic meters (eHZ) with an adapter, while the included main line branch terminal and screw terminals keep connections secure and accessible.

Highlights

• Two-field metering panel with one metering position, rated up to 63 A
• 5-pole busbar system (L1, L2, L3, N, PE) for balanced distribution
• Integrated APZ space for additional devices such as tariff switching units
• Cross mounting plate for conventional or eHZ meters (adapter required for eHZ)
• Sheet steel and plastic construction, vertical mounting, DIN VDE compliant
• Main line branch terminal included; screw terminal connections

In daily use

Installers will appreciate the straightforward vertical mounting and the pre-configured 5-pole busbar layout, which reduces wiring time and errors. The APZ compartment provides a tidy, code-compliant location for tariff switching devices or other auxiliary equipment, eliminating the need for a separate enclosure. The panel's 900 mm height and 500 mm width fit standard distribution cabinet dimensions, while the 160 mm depth offers ample room for cable routing. The screw terminals ensure durable, maintenance-friendly connections in residential or commercial metering applications.

Full specifications

• Product type: Metering panel / distribution field
• System: Hager Univers Z
• Number of metering positions: 1
• Number of fields: 2
• Wiring system: 5-pole (L1, L2, L3, N, PE)
• Rated current: up to 63 A
• Height: 900 mm
• Width: 500 mm
• Depth: 160 mm
• Busbar system: 5-pole
• Connection type: Screw terminals
• Material: Sheet steel / plastic
• Application: Energy metering in distribution cabinets
• Main line branch terminal: Included
• Meter mounting: Cross mounting plate
• Prepared for: Tariff switching device (VT)
• Additional device space: Yes (APZ)
• Standards: DIN VDE
• Mounting position: Vertical
• Compatibility: Conventional and electronic meters (eHZ with adapter)

Final note

A future-proof metering panel that combines a dedicated meter position with APZ space, simplifying tariff switching and auxiliary device integration in a single, robust enclosure.
