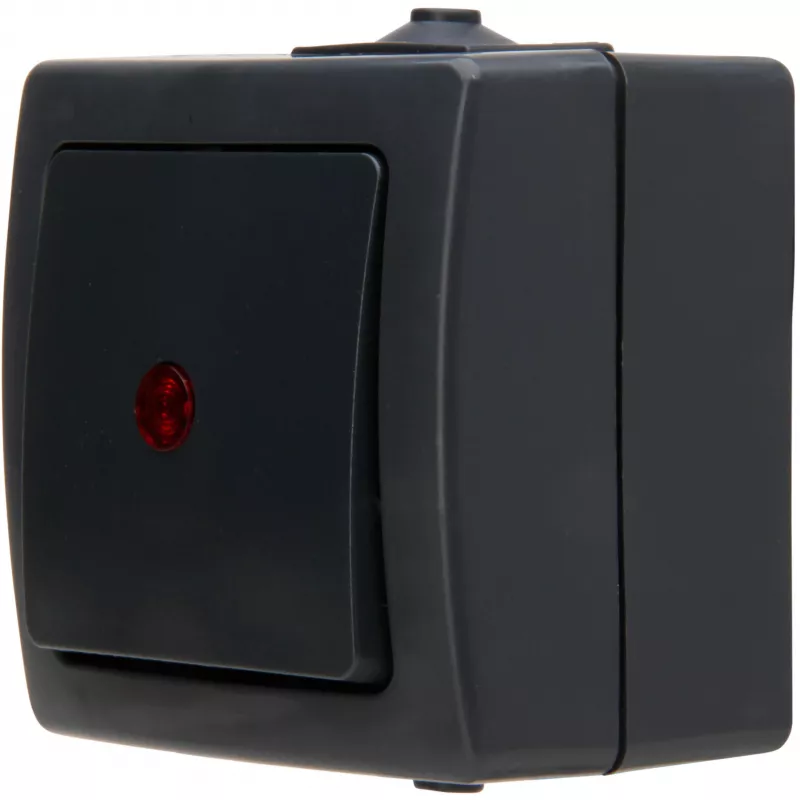

HEINRICH KOPP Nautic antracite interruptor de tecla de superfície 1 polo IP44 566615003

Damp-room rocker switch from the Nautic series, built for reliable switching in demanding environments. Its UV-stabilized thermoplastic housing and IP44 protection make it suitable for outdoor and damp locations.

Advantages

Surface-mounted design simplifies installation on walls or panels. Screw terminals accept conductors up to 2.5 mm², ensuring secure connections. The anthracite finish blends with modern exteriors.

Suitable for

• Outdoor covered areas
• Damp rooms
• Utility spaces

Key specifications

• Switch type: Rocker switch
• Number of poles: 1
• Rated voltage: 250 V AC
• Rated current: 10 A
• Protection class: IP44
• Mounting type: Surface-mounted
• Material: Thermoplastic, UV-stabilized
• Connection type: Screw terminals
• Terminal capacity: Up to 2.5 mm²
• Operating temperature range: -25°C to +40°C

Recommendations

Pair with matching Nautic series sockets and covers for a uniform installation.
