HellermannTyton 435-12060 manga de resina para cabos, reta, verde, 1,5-16 mm², IP68, 1 unid.

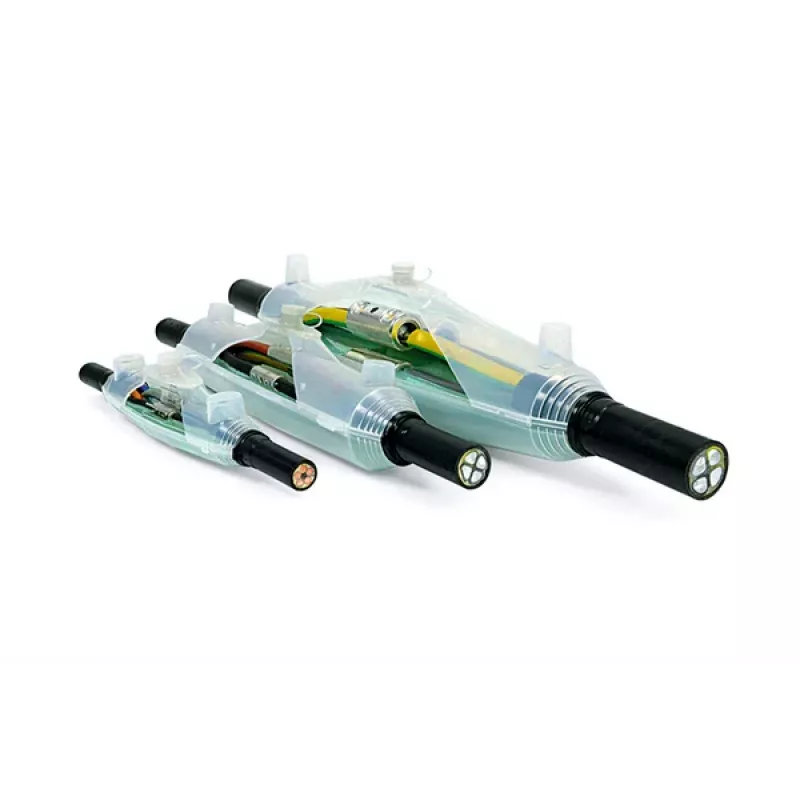

This resin cable joint from HellermannTyton offers a reliable straight connection for low-voltage cables up to 1 kV. The green polypropylene shell is filled with Reliseal PUR 33 polyurethane resin, providing a permanent, halogen-free insulation that resists oils, fats, and alkaline solutions. Suitable for 1- to 5-core PVC, XLPE, or EPR insulated cables with cross-sections from 1.5 to 16 mm², it maintains protection even in demanding environments.

Highlights

• Straight joint configuration for in-line cable splicing
• IP68 ingress protection against dust and water immersion
• Operating temperature range from -30°C to +130°C
• Halogen-free PUR resin for safe insulation
• Good chemical resistance to oils, fats, and alkaline solutions

In daily use

Install the joint at ambient temperatures between 0°C and +40°C. The resin has a shelf life of 36 months, allowing flexible stock management. Once cured, the joint withstands harsh conditions, making it suitable for underground or outdoor cable repairs.

Full specifications

• Product type: Resin cable joint
• Joint configuration: Straight
• Voltage rating: Up to 1 kV
• Cable compatibility: PVC, XLPE, EPR insulated cables
• Number of cores: 1 to 5
• Cable cross-section range (4-core): 1.5 - 6 mm²
• Cable cross-section range (overall): 1.5 - 16 mm²
• Resin type: Polyurethane (PUR)
• Resin name: Reliseal PUR 33
• Shell material: Polypropylene (PP)
• Ingress protection: IP68
• Operating temperature range: -30°C to +130°C
• Installation temperature range: 0°C to +40°C
• Shelf life (resin): 36 months
• Chemical resistance: Good (oils, fats, alkaline solutions)
• Halogen-free: Yes (resin)
• Standards: VDE 0278
• Product colour: Green
• Quantity per pack: 1

Final note

Designed for permanent, low-voltage cable connections, this joint ensures long-term reliability in challenging environments.
