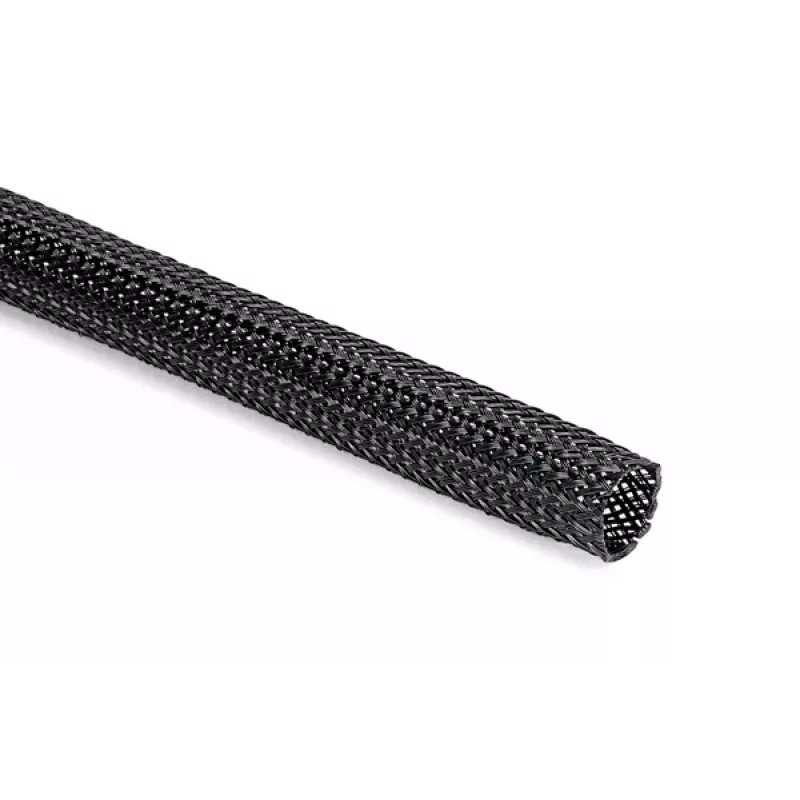

HellermannTyton Helagaine HEGMAN mangueira trançada, 40 mm diâmetro nominal, preto, poliéster, -50°C a +150°C, conforme ELV, 4 cm comprimento 170-13000

Managing and protecting cable bundles in demanding environments requires a solution that combines flexibility, durability, and ease of installation. The HellermannTyton Helagaine HEGMAN braided sleeving in black offers expandable polyester construction that conforms to varying bundle diameters, providing abrasion resistance and clean cable management. With an operating temperature range from -50°C to +150°C and a UL94 V2 flammability rating, it is suitable for applications requiring reliable performance under thermal stress. The sleeving is halogen-free and ELV compliant, making it appropriate for use in automotive and electronic assemblies where end-of-life vehicle directives apply. Its high flexibility and good UV resistance ensure long-term performance in both indoor and outdoor installations.

Who is it for

This braided sleeving is intended for technicians, panel builders, and automotive engineers who need to bundle, protect, and insulate wires and cables in harsh environments. It is particularly useful for applications where cables must be routed through tight spaces or where vibration and abrasion are concerns.

Main features

• Expandable braided design allows easy installation over connectors and varying bundle sizes
• Made from durable polyester (PET) with high abrasion resistance
• Wide operating temperature range: -50°C to +150°C
• Halogen-free and ELV compliant for environmentally conscious applications
• UL94 V2 flammability rating for added safety
• Good UV resistance for outdoor use
• Highly flexible for easy routing

Specifications

• Brand: HellermannTyton
• Model: 170-13000
• MPN: 170-13000
• EAN: 4031026125879
• Product Type: Braided Sleeving
• Series: Helagaine HEGMAN
• Material: Polyester (PET)
• Colour: Black
• Nominal Diameter: 40 mm
• Length: 4 cm
• Operating Temperature Range: -50°C to +150°C
• Flammability Rating: UL94 V2
• Chemical Resistance: Good
• Abrasion Resistance: High
• UV Resistance: Good
• Halogen-free: Yes
• Compliance: ELV Compliant, RoHS Compliant
• Flexibility: Highly Flexible
• Expandability: Yes
• Recommended Cutting Tool: Hot Knife
• Application: Cable bundling, protection, and insulation

Tips

To prevent fraying, cut the sleeving with a hot knife. When selecting the size, consider the maximum bundle diameter; the expandable design accommodates a range of sizes, but ensure a snug fit for optimal protection.
