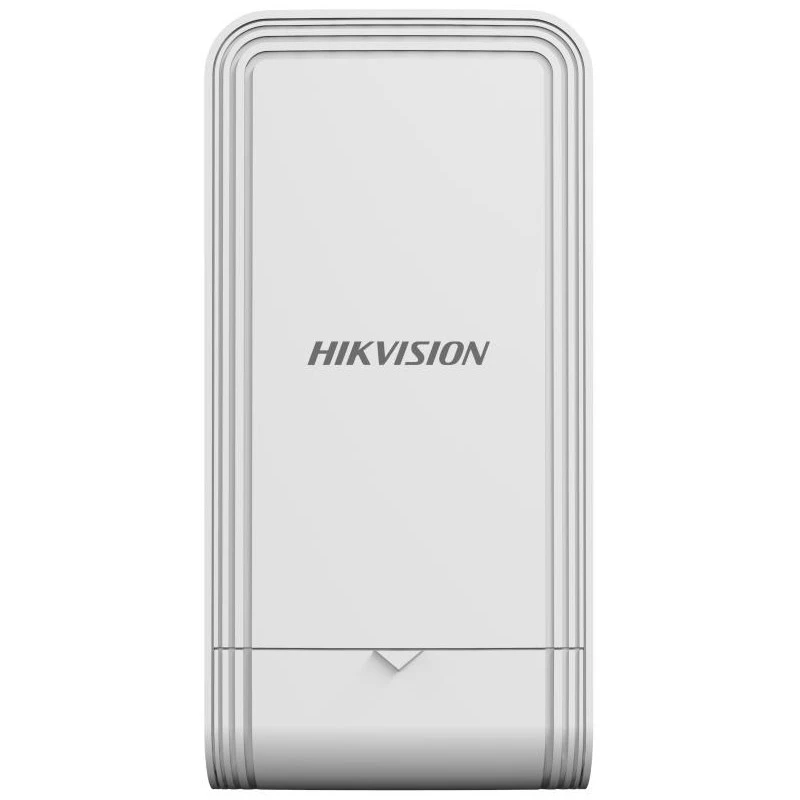

Hikvision DS-3WF02C-5AC/O(O-STD)V3 ponte sem fios para exterior, 5 GHz, 867 Mbps

The Hikvision DS-3WF02C-5AC/O(O-STD)V3 is an outdoor wireless bridge operating in the 5 GHz band with a maximum air interface rate of 867 Mbps. It features a 12 dBi antenna and supports IEEE 802.11/a/n/ac standards. Designed for pole mounting, it has an IP55 protection rating and operates in temperatures from -30°C to 70°C.

Key features

• 5 GHz outdoor wireless bridge
• Maximum air interface rate: ≤ 867 Mb/s
• Wireless standard: IEEE 802.11/a/n/ac
• Antenna gain: 12 dBi
• IP55 protection rating
• Pole mounting
• 2 × RJ45 1000 Mb/s ports
• Passive PoE support
• TDMA, DFS, TPC, IFM, IPM software features
• WPA2-PSK security
• Web, iVMS-4200, HCP management

Specifications

• Product dimensions (W × H × D): 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
• Net weight: 0.307 kg (0.677 lb)
• Operating temperature: -30°C to 70°C (-22°F to 158°F)
• Operating humidity: 5% to 95% (non-condensing)
• Storage temperature: -40°C to 85°C (-40°F to 185°F)
• Storage humidity: 5% to 95% (non-condensing)
• Power consumption: 2.65 W (typical, 1 channel 2MP IPC), max. 4.5 W
• Operating frequency bands: 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5850 MHz
• Antenna angle: (H) 35° (V) 35° (beamwidth [3 dB])
• Transmission power: 22 dBm @11ac MCS0 (may vary depending on local regulations)
• Receiver sensitivity: -84±2 dBm @AC80-MCS0
• Throughput: PTP: 230 Mb/s/0.5 km (AC80), 200 Mb/s/1 km (AC80), 40 Mb/s/5 km (AC80); PTMP (1–8): 80 Mb/s/1 km (AC80)
• Network interface: 2 × RJ45 1000 Mb/s ports
• LED indicators: power, LAN, signal strength
• Reset: hardware reset button
• Power supply: 12 VDC / 1 A, passive PoE
• Channel width: 20 / 40 / 80 MHz
• Channel selection: auto / manual
• Network protocols: NTP, SADP, HTTPS, SSH
• Security mode: WPA2-PSK
• Security mechanism: hidden wireless network name
• Management methods: Web, iVMS-4200, HCP
• Upgrade methods: Web, iVMS-4200, HCP
• System log: Syslog, control center information
• EMC approvals: CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020), IC (ICES-003:2020), RCM (AS/NZS CISPR 32:2015)
• Safety approvals: UL (UL 60950-1), CB (IEC 62368-1:2014, AMD1:2009, AMD2:2013), CE-LVD (EN 62368-1:2014+A11:2017)
• Biochemical approvals: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (1907/2006/EC)
• Radio approvals: EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17, FCC part 15.247
