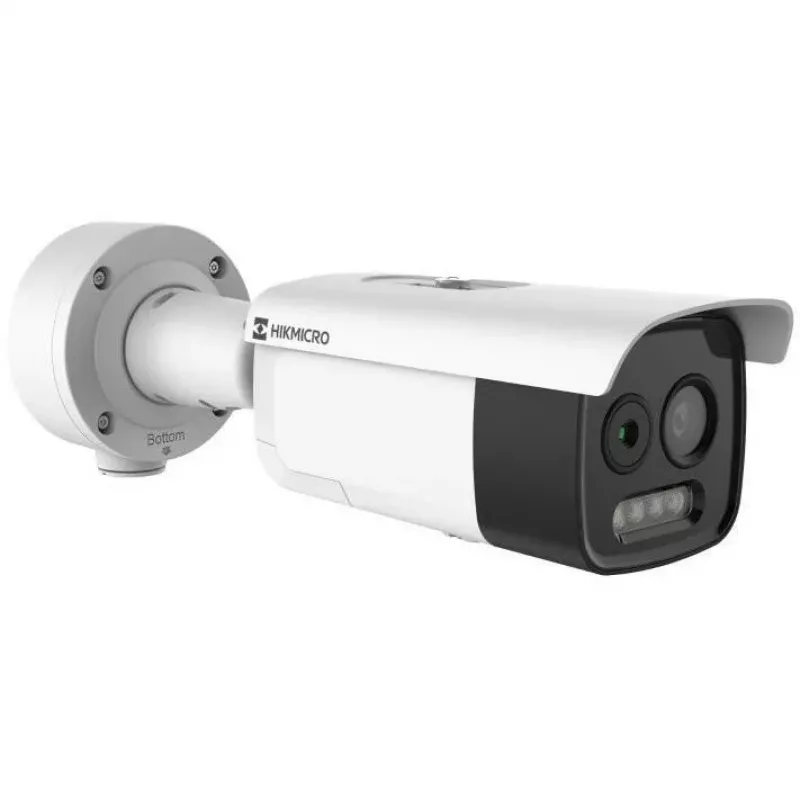

Hikvision HM-TD2618-3/G0/T1A Câmara IP bi-espectral térmica e ótica, 160x120 térmica, 4MP ótica, objetiva térmica 3,1mm, objetiva ótica 4mm, IP66

The Hikvision HM-TD2618-3/G0/T1A is a high-performance bi-spectrum IP camera combining thermal and optical imaging for reliable 24/7 surveillance. With a thermal resolution of 160x120 (output 320x240) and a 4MP optical sensor, it delivers clear detection and identification in challenging environments. Ideal for perimeter protection, industrial monitoring, and critical infrastructure.

Advantages

Dual-spectrum technology provides both thermal and visible light imaging, ensuring detection even in total darkness, smoke, or fog. The thermal channel features a NETD of less than 40 mK for high sensitivity, while the optical channel offers 120 dB WDR for clear images in high-contrast scenes. IP66 rating and wide operating temperature range (-40 °C to 65 °C) make it suitable for outdoor use.

Suitable for

• Perimeter security for commercial and industrial sites
• Critical infrastructure monitoring (power plants, data centers)
• Border and area surveillance
• Fire prevention and temperature anomaly detection

Key specifications

• Thermal Resolution: 160 × 120 (output 320 × 240)
• Thermal NETD: < 40 mK
• Thermal Focal Length: 3.1 mm
• Thermal FOV: 50° × 37.2° (H × V)
• Temperature Measurement Range: -20 °C to 150 °C
• Temperature Measurement Accuracy: ±8 °C or ±8%
• Optical Resolution: 4 MP (2688 × 1520)
• Optical Sensor: 1/2.7" Progressive Scan CMOS
• Optical Focal Length: 4 mm
• Optical FOV: 84° × 44.8° (H × V)
• WDR: 120 dB
• Video Compression: H.265/H.264/MJPEG
• Max. Frame Rate: 30 fps (Thermal & Optical)
• Storage: MicroSD/SDHC/SDXC up to 256 GB
• Network Interface: 1 RJ45 10M/100M Self-adaptive Ethernet port
• Power Supply: 12 VDC, PoE (802.3af)
• Power Consumption: Max. 8 W
• IP Rating: IP66
• Operating Temperature: -40 °C to 65 °C

Recommendations

For optimal performance, use with a PoE switch or injector (802.3af). Ensure proper mounting to avoid obstructions. The camera supports H.265 compression to save bandwidth and storage.
