Hikvision iDS-7204HTHI-M1/XT DVR 5 em 1 de 4 canais

The Hikvision iDS-7204HTHI-M1/XT is a 4-channel 5-in-1 DVR with face recognition and perimeter protection. It supports HDTVI, AHD, HDCVI, CVBS, and IP cameras, and offers simultaneous HDMI and VGA output.

Key features

• Face recognition: face picture library up to 16 face picture libraries; face picture comparison, face picture search; 2-channel face picture comparison alarm (HD analog camera)
• Perimeter protection: human/vehicle analysis up to 4 channels
• Supports 4-channel IP cameras (up to 8-channel), each up to 8 MP
• Analog video input: 4-ch
• HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video output mode: simultaneous HDMI/VGA output
• CVBS input: PAL/NTSC
• CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution PAL: 704 × 576, NTSC: 704 × 480
• Synchronous playback: 4-ch
• HDTVI input: 8 MP (3840 × 2160)@12/15 fps, 3K (2960 × 1665)@25/20 fps, 3K (3328x1504)@20 fps, 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
• AHD input: 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
• HDCVI input: 8 MP (3840 × 2160)@12/15 fps, 3K (2880×1620)@25 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
• Audio output: 1-ch, RCA (linear, 1 kΩ)
• Audio input: 1-ch (optional up to 4-ch), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution: Main stream: 8 MP@12/15 fps/3K@25/20 fps/5 MP@20 fps/4MP/1080P@25 fps (P)/30 fps (N); Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video bitrate: 32 Kbps to 16 Mbps
• Dual stream: support main stream or sub-stream
• Stream type: Video, Video & Audio
• Audio compression: G.711u
• Audio bitrate: 64 Kbps
• Total network bandwidth: 96 Mbps
• Network protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote connection: 32
• Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary interface: SATA: 1 SATA interface
• Capacity: up to 12 TB capacity for each disk
• Serial interface: RS-485 (half-duplex)
• USB interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm I/O: N/A (optional)
• Power supply: 12V DC, 2A
• Consumption: ≤ 15 W (without HDD)
• Operating temperature: -10°C to 55°C (14°F to 131°F)
• Operating humidity: 10% to 90%

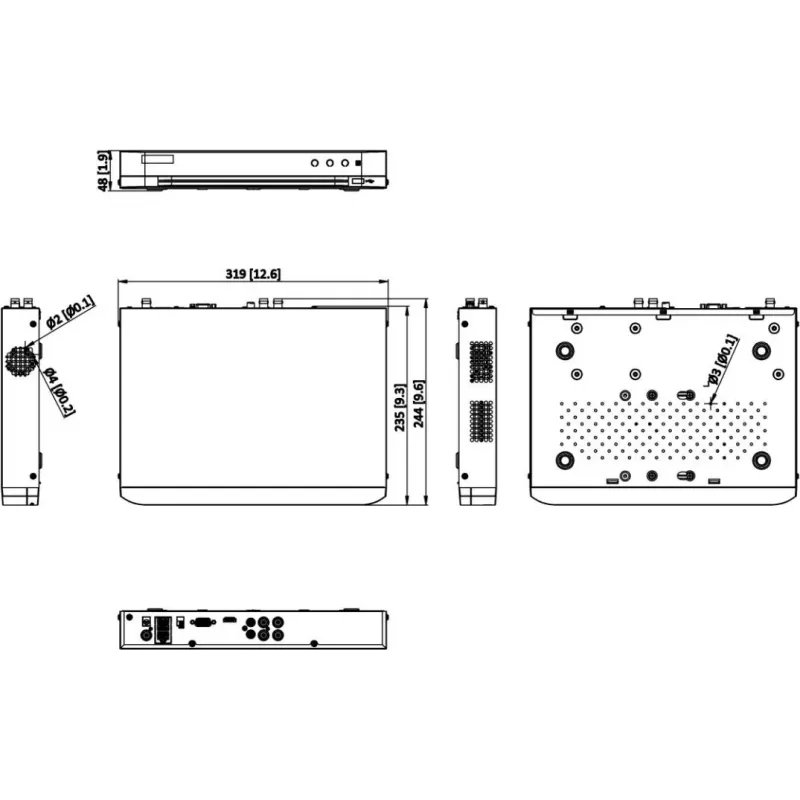

• Dimensions (W × D × H): 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
• Weight: ≤ 1.16 kg (2.6 lb)
