Terminal crimpado isolado 6mm²/10AWG para cabo, cobre, vermelho, 100 unid.

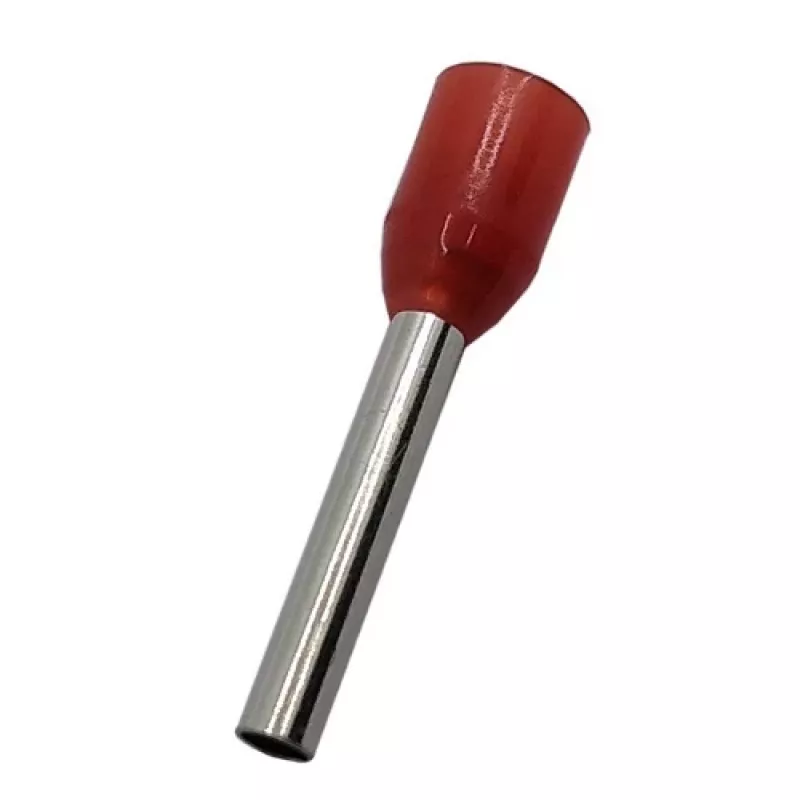

These crimp insulated terminals are designed for secure and reliable connections with 6mm²/10AWG stranded copper wire. Each terminal features a pure copper tube with a tin-plated finish for enhanced electrical conductivity and corrosion resistance, encased in a red vinyl insulation sleeve. The set includes 100 pieces, suitable for joining wires to electrical devices or other conductors.

Key features

• Wire cross-section: 6.0mm² / 10AWG
• Material: pure copper with tin-plated surface
• Insulation material: red vinyl
• Connection angle: 180° (horizontal)
• Total terminal length: 27.5mm; tube length: 18mm
• Inner tube diameter: 3.5mm; outer tube diameter: 3.9mm
• Insulated terminal diameter: 6.0mm; set includes 100 pieces
