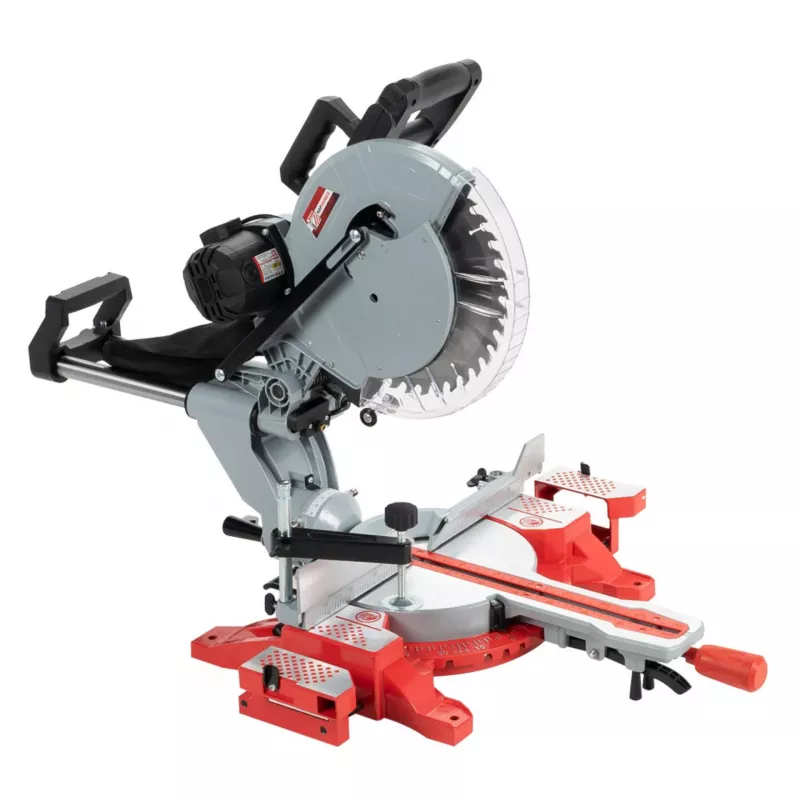

HOLZMANN MASCHINEN KAP305ECO 230V Serra de corte e esquadria

Precision crosscuts and angled miters in hardwood, softwood, and composite materials demand a saw that combines raw power with surgical accuracy. The HOLZMANN MASCHINEN KAP305ECO 230V Chop and Mitre Saw answers that call with a 2000 W motor spinning a 305 mm blade at 3800 rpm, delivering clean, splinter-free cuts even in dense stock. Its sliding carriage extends capacity to 330 mm at 90°, while the laser guide and robust clamping system keep every cut on the line.

Who is it for

Professional carpenters, joiners, and ambitious DIY builders who need a stationary saw for framing, trim work, decking, and furniture components. It suits workshops and job sites where repeatable angled cuts are a daily requirement.

Main features

• 2000 W motor with 3800 rpm no-load speed for fast, consistent cutting.
• 305 mm TCT blade with 30 mm bore and 60 teeth for fine crosscuts.
• Sliding function extends crosscut capacity to 330 mm at 90°/90°.
• Miter range -45° to +45° and bevel range 0° to 45° left for compound cuts.
• Integrated laser guide projects the cut line for accuracy.
• Workpiece clamp and 35 mm dust port for safer, cleaner operation.

Specifications

• Motor power: 2000 W
• Voltage: 230 V / 50 Hz
• No-load speed: 3800 rpm
• Blade diameter: 305 mm, bore 30 mm, 60 teeth
• Max cutting capacity 90°/90°: 105 x 330 mm
• Max cutting capacity 45°/90°: 105 x 230 mm
• Max cutting capacity 90°/45°: 60 x 330 mm
• Max cutting capacity 45°/45°: 60 x 230 mm
• Miter angle range: -45° to +45°
• Bevel angle range: 0° to 45° left
• Dust port diameter: 35 mm
• Sound pressure level: 93.5 dB(A)
• Sound power level: 106.5 dB(A)

Tips

Use a sharp, material-specific blade for best results and reduced tear-out. Always secure the workpiece with the clamp, wear hearing and eye protection, and connect a dust extractor to the 35 mm port to keep the work area clear.
