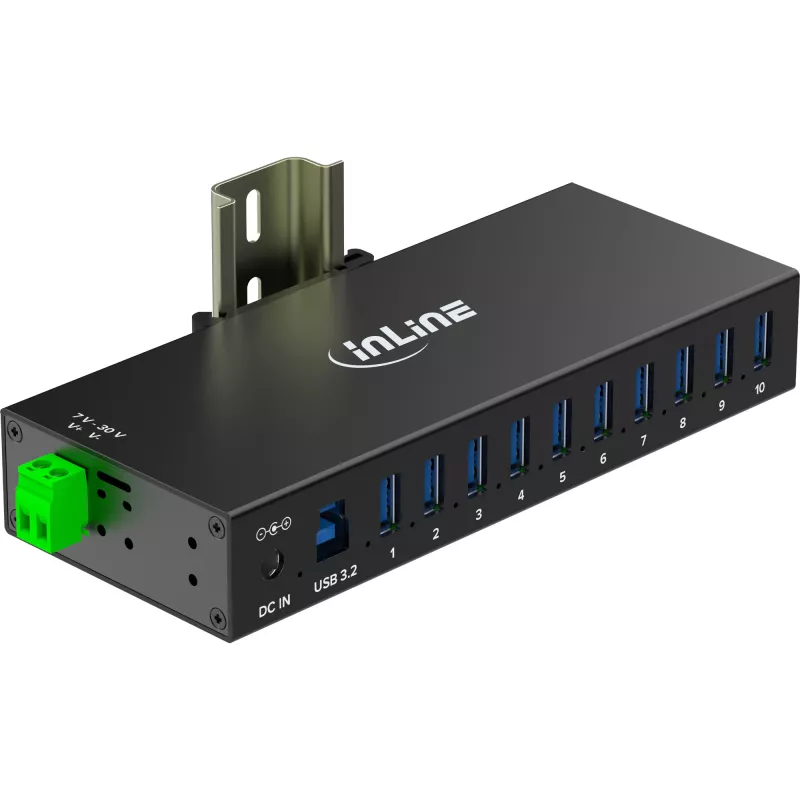

Hub de interface InLine 35396C USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s preto

Robust aluminium housing for industrial use:The durable housing provides reliable protection in harsh environments and enables long-term use in professional settings.

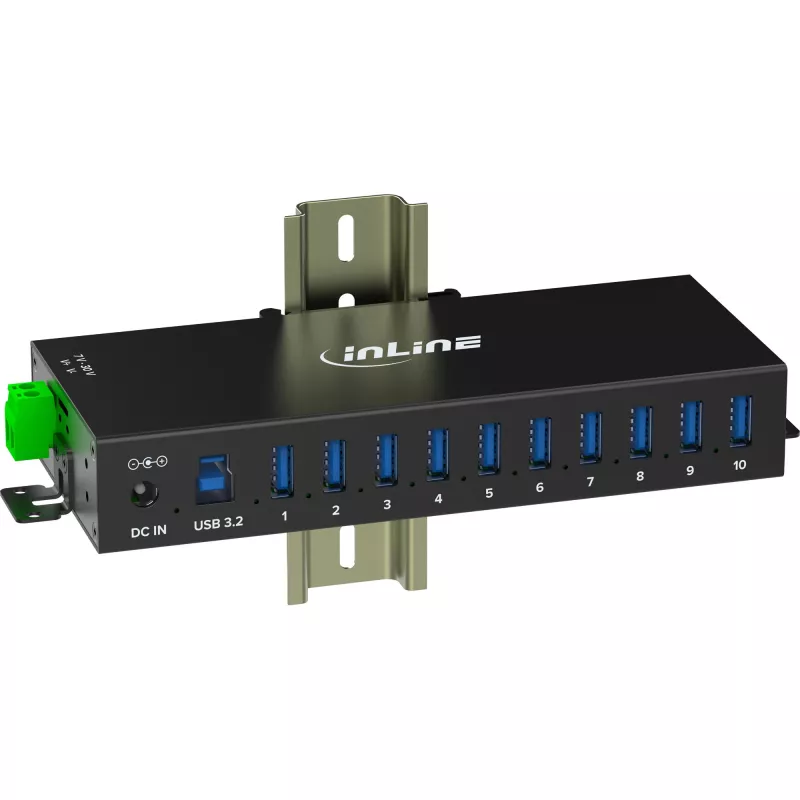

DIN rail and wall mounting:Flexible mounting options ensure secure and space-saving integration in control cabinets and technical rooms.
Powerful USB 3.2 Gen.1 ports:Ten USB-A ports offer reliable data transfer at up to 5 Gb/s – ideal for industrial applications.
Extended protection for maximum operational reliability:Integrated short-circuit, overvoltage and ESD protection ensures safe continuous operation.
Flexible power supply:Optional power supply via power supply unit or terminal block – adapts perfectly to local conditions.

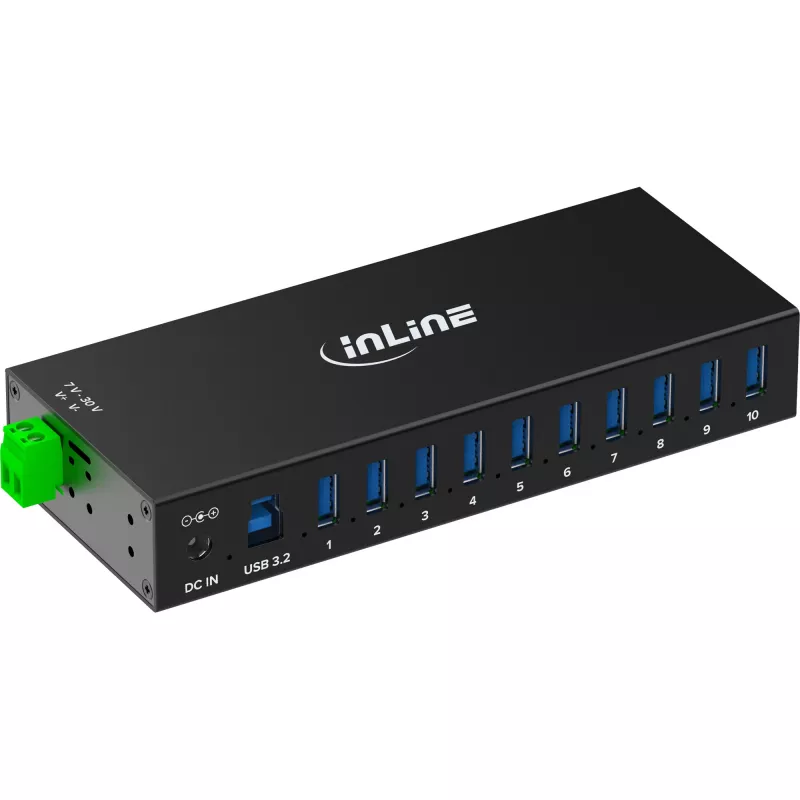

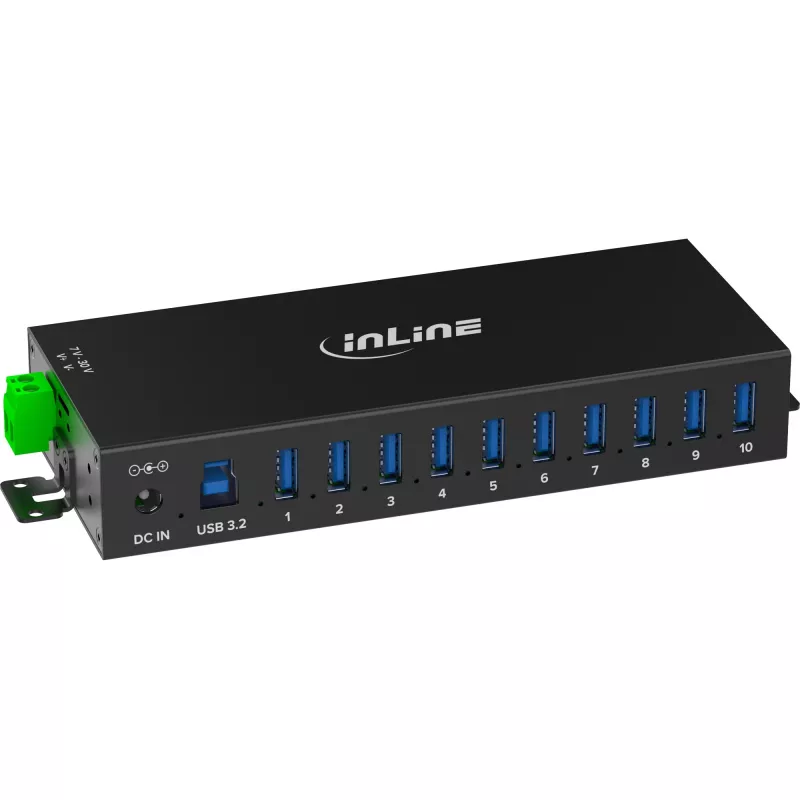

The InLine® USB 3.2 Gen.1 industrial hub is specially designed for professional use in demanding conditions. With ten powerful USB-A 3.2 Gen.1 ports and a maximum transfer rate of 5 Gb/s, it is a reliable connection solution for industrial IT and control systems. The high-quality aluminium housing protects against mechanical stress and enables safe operation even at extreme ambient temperatures from -40°C to +85°C. Thanks to the flexible mounting options – DIN rail or wall bracket – the hub can be easily integrated into existing infrastructures.
Integrated protection against short circuits, overvoltage and electrostatic discharge ensures additional safety during operation. Power is supplied either via a supplied external power supply unit or alternatively via a 2-pin terminal connection. This makes the hub particularly flexible in use – from control cabinets and machine controls to technical rooms in IT infrastructure.
Compatibility with Windows, MacOS and Linux, as well as easy plug-and-play setup, make the industrial hub a versatile interface solution for professional applications.

Chipset: VL817*3
Inputs:
– 1x USB-B port for connection to host computer
– 1x DC IN (5.5 x 2.5 mm)

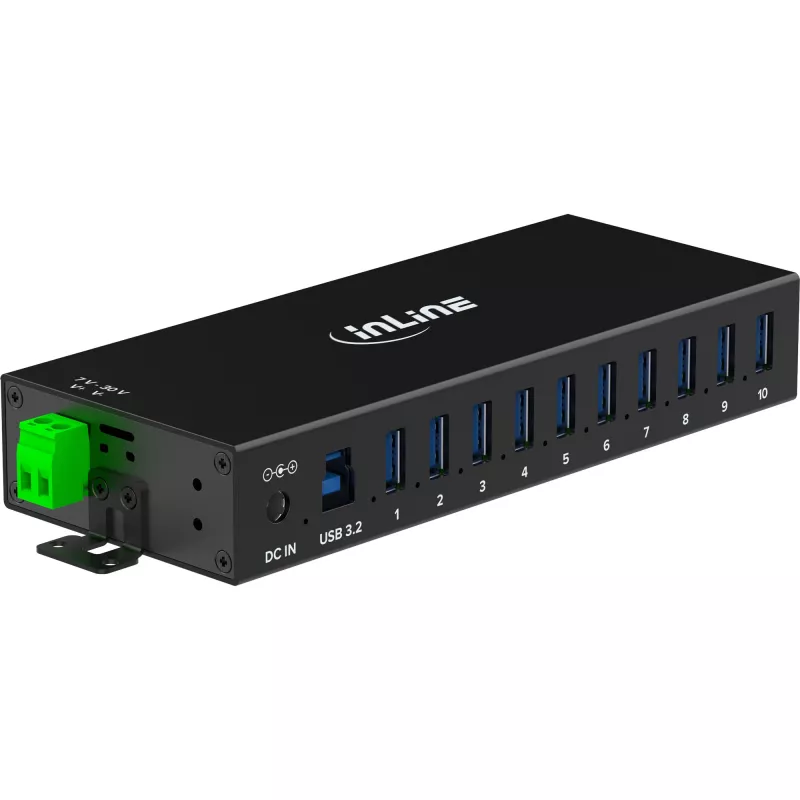

– 1x alternative 2-pin terminal connection
Outputs
– 10x USB-A 3.2 Gen.1 ports (5 Gb/s)
– BC1.2 charging specification: Yes (max. 5 V / 2 A per port)
Protective mechanisms:
– Short circuit, overcurrent, overvoltage
– ESD/antistatic protection: 350 W
Housing: Aluminium, black

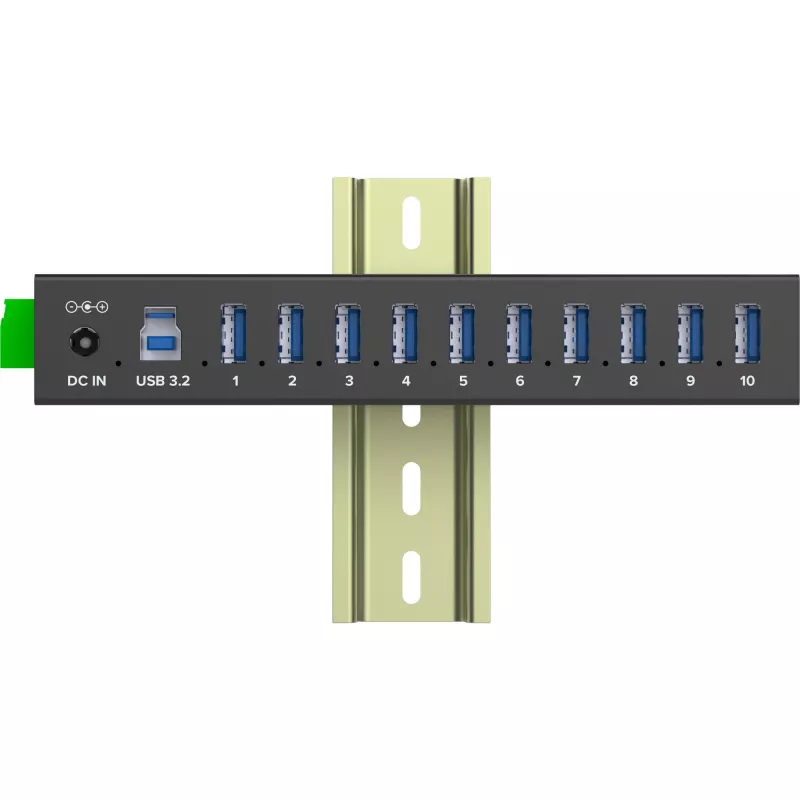

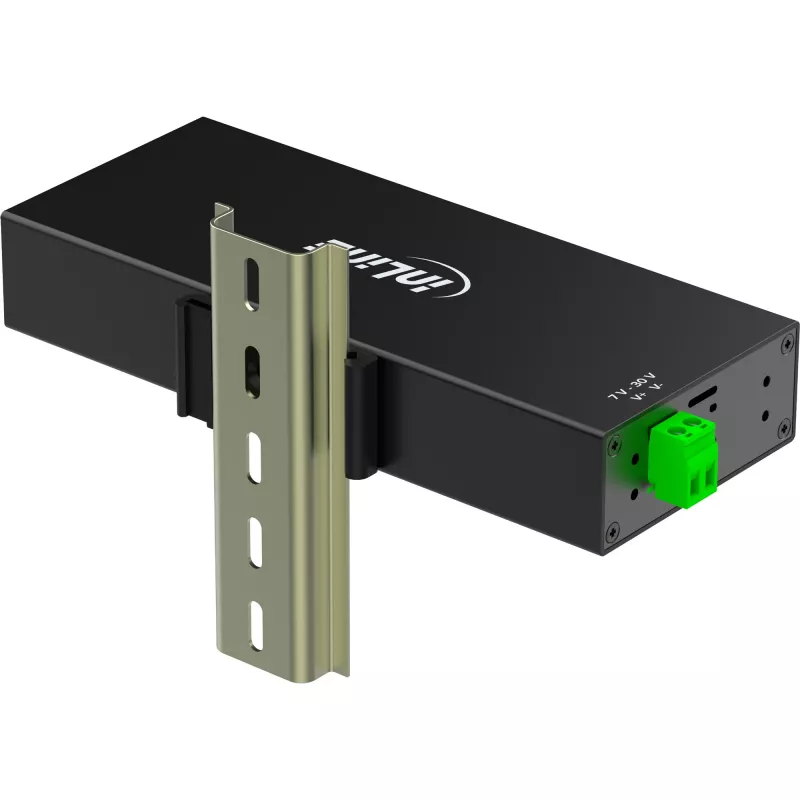

Mounting: DIN rail or wall bracket
LED display: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +125°C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, MacOS, Linux
Dimensions: 164 x 68 x 28 mm
Weight: 227 g

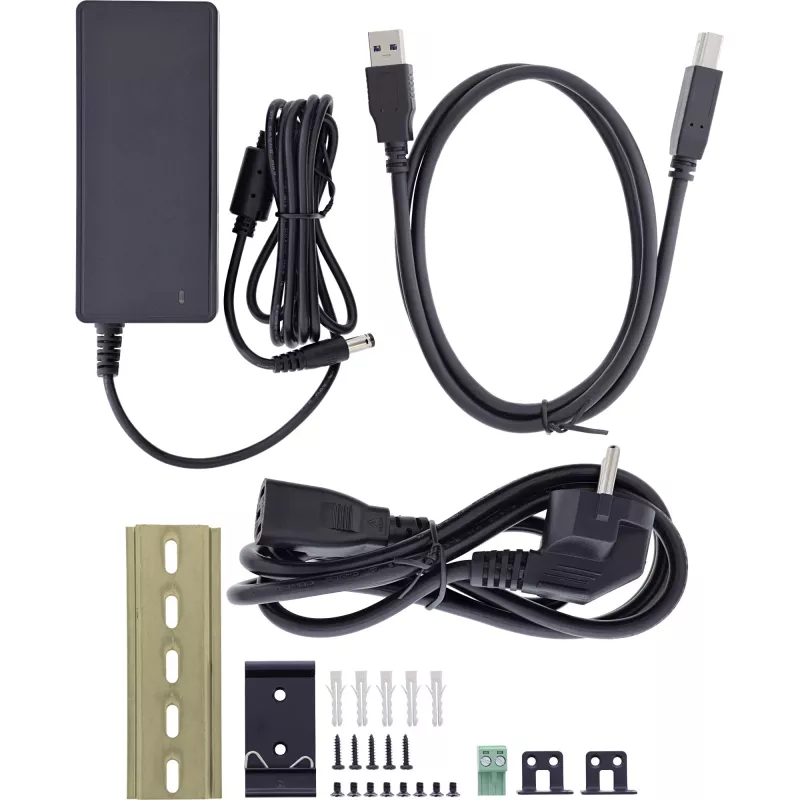

Scope of delivery
– 1x InLine® USB 3.2 Gen.1 industrial hub, 10 ports, aluminium housing, with power supply unit
– 1x USB-A to USB-B cable, 1 m
– 1x mounting kit
– 1x DIN rail 10 cm & clip
– 1x terminal block
– 1x external power supply 12 V / 4 A
– 1x user manual German/English
External power supply (power supply unit):
– Type: external plug-in power supply
– Input voltage: 100–240 V AC, 50/60 Hz
– Output voltage: 20.0 V DC
– Output current: max. 3.0 A
– Output power: 60.0 W
– Average efficiency in operation: 92.62%
– Efficiency at low load (10%): 91.35%
– Power consumption at zero load: 0.081 W

InLine 35396C. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Aluminium. Power supply type: DC, Input voltage: 12 V, Input current: 2 A. Mac operating systems supported: MacOS. Width: 68 mm, Depth: 164 mm, Height: 28 mm

How to use

Mount the hub on a DIN rail or attach it to a wall bracket in the chosen enclosure. Connect the host computer using the USB-A to USB-B cable and provide power either with the supplied external power supply (connect to DC IN) or via the 2‑pin terminal block. Attach USB devices to the ten USB-A ports. The device is recognized automatically by Windows, MacOS and Linux and requires no driver installation. Observe polarity and connector types when using the terminal connection or DC input.

Recommendations

Install the hub in a ventilated, dust-reduced location and ensure the power supply rating matches the combined current consumption of connected devices. Use the DIN rail or wall mounting to secure the unit and employ grounded cabling in environments with higher ESD risk.
