Hub de interface USB-C InLine 35392D USB 3.2 Gen 2 Type-C host para HDMI, USB-A, USB-C 10000 Mbit/s cinzento

High connectivity:With 3x USB-C, 2x USB-A, and HDMI, the hub offers a wide range of connection options for modern workplaces.
Fast data transfer:USB 3.2 Gen.2 enables transfer rates of up to 10 Gb/s for efficient work with large amounts of data.
Powerful power supply:Power Delivery 3.0 supports up to 100 W, ideal for charging notebooks and mobile devices during operation.
Professional monitoring:The integrated display shows status information for all ports in real time, facilitating analysis in IT operations.
Reliable compatibility:Supports Windows, macOS, Linux, and ChromeOS without additional driver installation.

The InLine® USB 3.2 Gen.2 Hub 35392D is the ideal solution for professional users who require maximum flexibility and reliability when connecting devices. With a total of three USB-C and two USB-A interfaces as well as an HDMI connection, workstations can be efficiently expanded. Thanks to USB 3.2 Gen.2, you benefit from transfer rates of up to 10 Gb/s, which makes the hub particularly interesting for data-intensive applications such as CAD, media production, or IT support.
The integrated power delivery function with up to 100 W not only allows you to charge notebooks, but also to power other devices at the same time. The integrated display offers clear added value: All interface status information is displayed in real time and can be switched or rotated at the touch of a button.
Thanks to its universal compatibility with Windows 10 or higher, macOS 12 or higher, ChromeOS, and Linux, the hub can be used in a variety of ways. With its robust workmanship and compact design, the InLine® hub is a reliable and future-proof solution for everyday professional use.

Compatible with USB 3.2 Gen.2 and DisplayPort Alt Mode 1.4
Input: USB-C plug, with 15 cm cable, supports PD 3.0

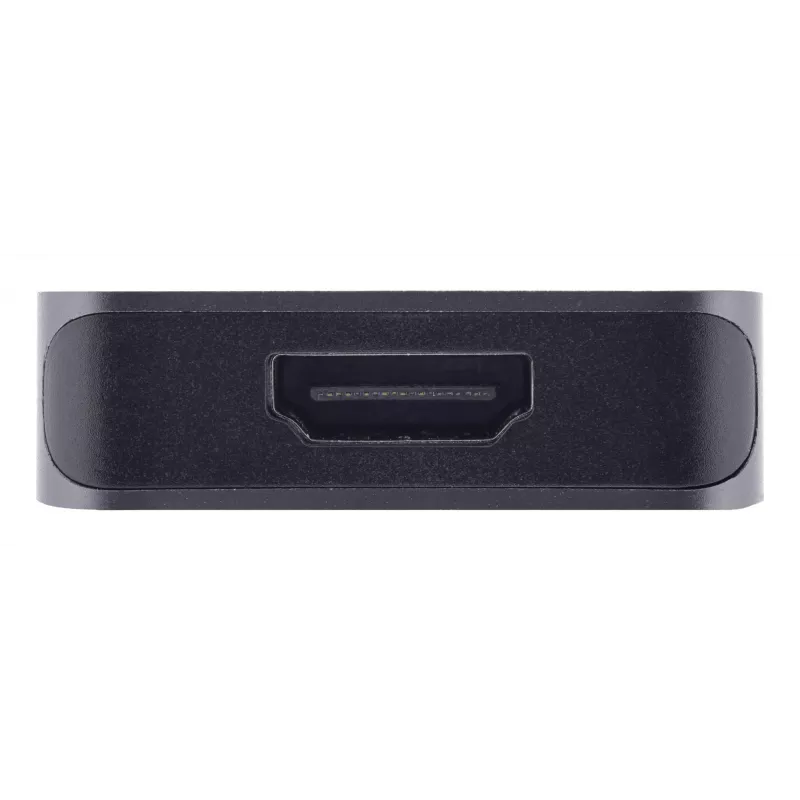

Video connection: 1x HDMI-A
Video resolution: HDMI 2.0, 3840x2160@60Hz, HDCP 2.3
Audio output: Stereo, 192kHz sampling rate
USB ports:

2x USB-A female (USB 3.2 Gen.2) with up to 10 Gb/s data transfer rate and 5.0V/0.9A/4.5W output power
2x USB-C port (USB 3.2 Gen.2) with up to 10 Gb/s data transfer rate and 5.0V/2.0A/10.0W output power
1x USB-C port (PD 3.0 power connection, up to max. 100 W) for optional power supply

Compatibility: Supports Windows 10 or higher, macOS 12 or higher, ChromeOS, Linux
Operating temperature: 0°C – +40°C
Storage temperature: -30°C – +70°C (max. 90% relative humidity, non-condensing)

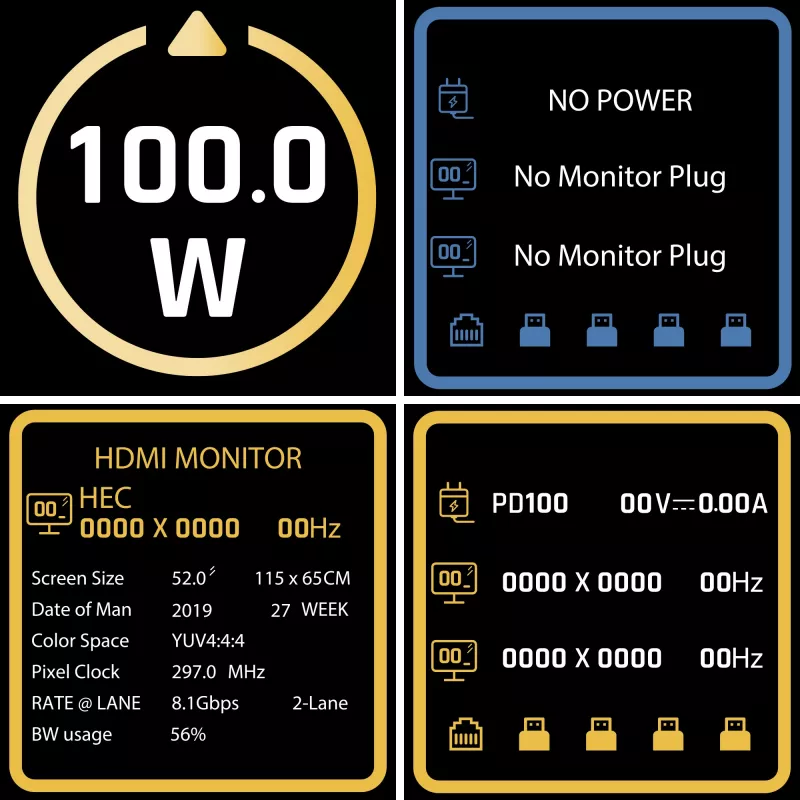

Display functions

Continuous display of status information for all interfaces
Display of:

Video resolution and refresh rate (e.g., 3840x2160@60Hz)
Active HDMI status ("HDMI MONITOR," "No Monitor Plug")
USB transfer rates (Gb/s) and utilization
Power delivery (up to 100 W)

Status messages in case of inactivity ("NO POWER") or connection problems
Display of audio sampling rates (up to 192 kHz)
Switching and rotating the display using a button

InLine 35392D. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Maximum resolution (HDMI): 3840 x 2160 pixels, Product colour: Grey. Power supply type: USB, Output voltage: 5 V, Output current: 2 A. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Other operating systems supported: ChromeOS. Width: 40 mm, Depth: 110 mm, Height: 12 mm

How to use

Connect the hub to a host computer using the integrated 15 cm USB-C cable. If external power is required for charging or to supply connected devices, plug a PD 3.0 power adapter into the dedicated USB-C power input (supports up to 100 W). Connect displays to the HDMI port and peripherals to the USB-A or USB-C ports. The integrated display presents status information for each interface in real time and can be switched or rotated with the built-in button. No additional drivers are needed for supported operating systems.

Recommendations

Use a PD-compatible power adapter when charging laptops or when multiple high-power devices are connected. For 4K@60Hz video output, use an HDMI cable and a monitor that support HDMI 2.0 and HDCP 2.3. Keep the hub within the specified operating temperature range and avoid prolonged exposure to high humidity.
