Hub de interfaces InLine 33271A USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s cinzento

Efficient expansion via USB-C:The hub adds three USB-A ports, HDMI video output, and USB-C Power Delivery to USB-C-enabled devices.
High-resolution HDMI output:Supports resolutions up to 3840 x 2160 at 60 Hz for connecting external displays.
Power supply with up to 100 W:The USB-C Power Delivery input forwards the power to the connected device.
Durable aluminum housing:Ensures mechanical stability and long-lasting use in everyday applications.
Cross-system compatibility:Works with Windows, macOS, and Linux without additional drivers.

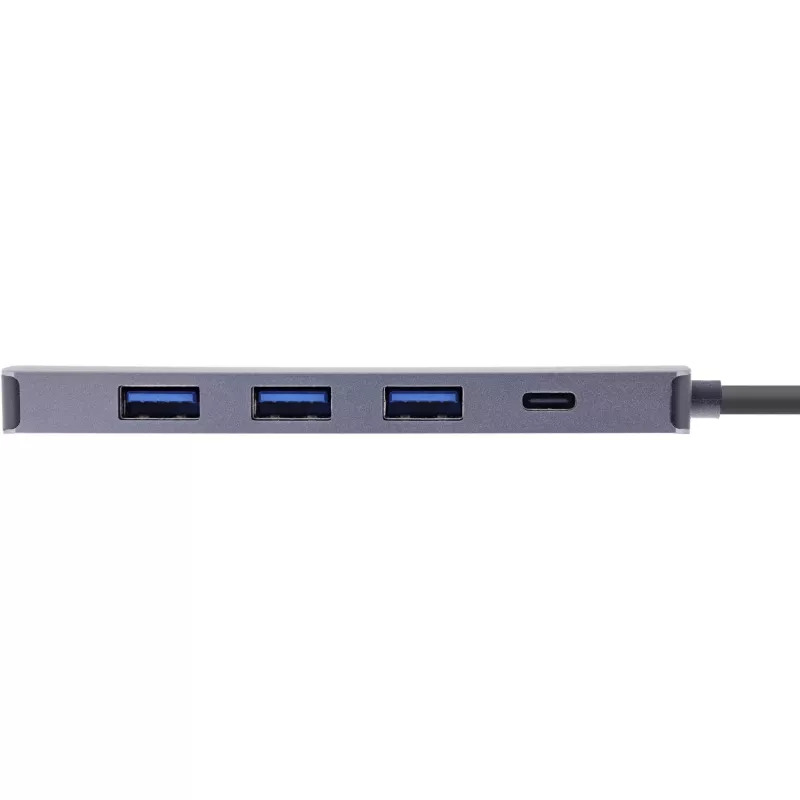

The InLine® multifunction hub offers a reliable way to use multiple functions simultaneously via a single USB-C connection. The device provides three USB-A ports that support USB 3.2 Gen.1. These enable data transfers at up to 5 Gb/s and are suitable for connecting common peripheral devices.

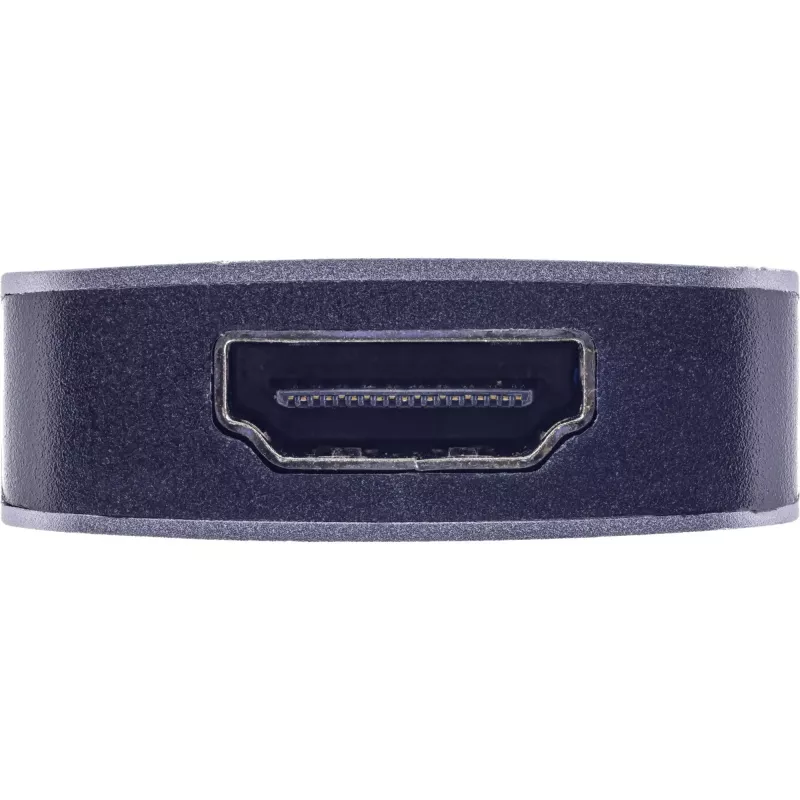

The integrated HDMI port allows image signals of up to 3840 x 2160 at 60 Hz to be transmitted to external monitors or projectors. This enables use in multimedia work environments and for presentation purposes. An additional USB-C Power Delivery input is used for power supply. When connected to a suitable power supply, the connected device can be supplied with up to 100 W.
The robust aluminum housing reliably protects the internal electronics. The hub is connected via a permanently integrated USB-C cable. Support for Windows, macOS, and Linux operating systems ensures high flexibility when integrating into existing systems.

3x USB-A: USB 3.2 Gen.1, up to 5 Gb/s
1x HDMI: up to 3840 x 2160 @ 60 Hz
1x USB-C Power Delivery: PD up to 100 W
Housing material: Aluminum
Supported operating systems: Windows, macOS, Linux
Operating temperature: 0 °C to +40 °C
Storage temperature: -20 °C to +60 °C
Permissible humidity: 20-80%, non-condensing

InLine 33271A. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, HDMI, USB Type-C. Data transfer rate: 5000 Mbit/s, Maximum resolution (HDMI): 3840 x 2160 pixels, Product colour: Grey. Power supply type: USB. Mac operating systems supported: MacOS. Width: 109.6 mm, Depth: 31.6 mm, Height: 11 mm

How to use

Connect the permanently attached USB-C cable to a USB-C port on your laptop, tablet or desktop that supports both data and video (DisplayPort Alt Mode) for full functionality. If you need to power or charge the host device while using the hub, attach a USB-C power adapter to the hub’s USB-C Power Delivery input. Plug USB-A peripherals into the available USB-A ports and connect an external monitor to the HDMI port. The system should recognise connected devices automatically on Windows, macOS and Linux.

Recommendations

For stable 4K@60 Hz video output, use a compatible host device that supports DisplayPort Alternate Mode over USB-C and a high-quality HDMI cable. To enable full charging up to 100 W while using peripherals simultaneously, use a power adapter rated for the required wattage and ensure adequate ventilation around the aluminum housing during prolonged use.
