Hub USB-C UGREEN 90568 2 USB 3.0 HDMI RJ45 SD TF porta PD

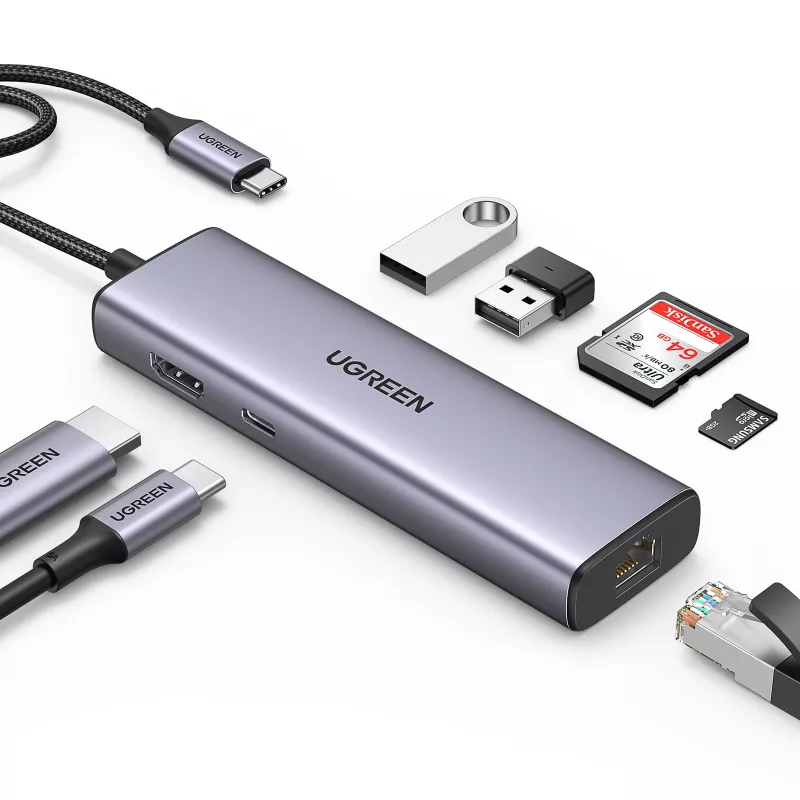

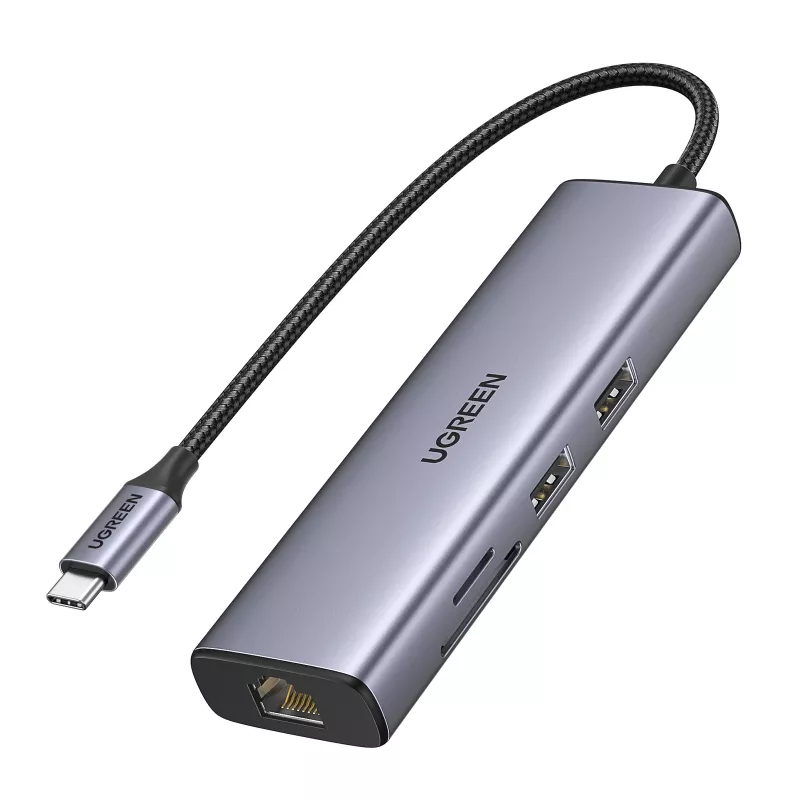

The UGREEN USB-C Hub 90568 is a compact multiport adapter designed to expand connectivity for laptops, tablets and smartphones with a USB-C port. It integrates two USB 3.0 ports, an HDMI video output, a Gigabit Ethernet (RJ45) port, SD and microSD (TF) card slots and a Power Delivery (PD) charging port into a single unit, enabling simultaneous data transfer, video output and wired network access while preserving device charging functionality.

Advantages

This USB-C hub supports high-speed data transfer via USB 3.0 ports and provides Full HD/4K compatible HDMI output for external displays. The integrated RJ45 Ethernet port offers a stable wired network connection where Wi‑Fi is unreliable. Built-in SD and TF card readers enable direct access to camera media without additional adapters, and the PD port allows pass-through charging to maintain device battery while other ports are in use. The compact design and plug-and-play operation make it convenient for mobile use.

Suitable for

• Connecting external monitors or projectors for presentations and extended desktop setups
• Transferring photos and videos from SD/TF cards directly to a laptop
• Adding wired Ethernet access for reliable network performance
• Connecting USB peripherals such as external drives, keyboards and mice
• Charging a USB-C laptop or device while using multiple peripherals

Key specifications

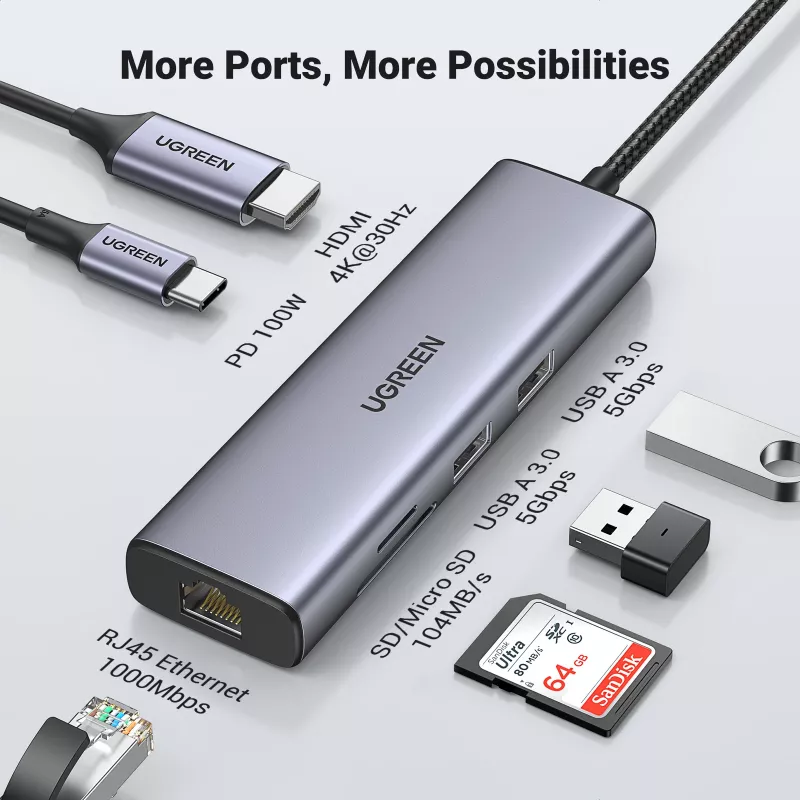

• Ports quantity: 7 (2 × USB 3.0, 1 × HDMI, 1 × RJ45 Ethernet, 1 × SD slot, 1 × TF/microSD slot, 1 × PD charging port)
• USB data transfer standard: USB 3.0 (up to 5 Gbps per port)
• Video output: HDMI supporting up to 4K@30Hz or Full HD@60Hz depending on host capabilities
• Ethernet: Gigabit wired connection (10/100/1000 Mbps)
• Card reader: SD and microSD (TF) slots compatible with standard memory cards
• Power Delivery: PD pass-through charging (supports device charging while hub is in use)
• Compatibility: Works with USB-C host devices that support data, video or power delivery passthrough as applicable

How to use

Connect the hub to a compatible USB-C port on your laptop, tablet or smartphone. Plug external devices into the relevant ports: insert SD/TF cards into the card slots, connect displays via HDMI, plug Ethernet cable into the RJ45 port and attach USB peripherals to the USB 3.0 ports. If charging is required during use, connect a USB-C PD charger to the PD port on the hub. The device typically operates without additional drivers on modern operating systems; check host device specifications for video output and PD support.

Recommendations

For optimal performance, use high-quality cables and a PD charger that meets your device’s power requirements. When connecting a 4K display, verify that the host device supports 4K output over USB-C. Avoid inserting or removing multiple cards or drives simultaneously to reduce the risk of data corruption; safely eject storage devices via the operating system before removal.
