Hub USB DeLOCK 64070

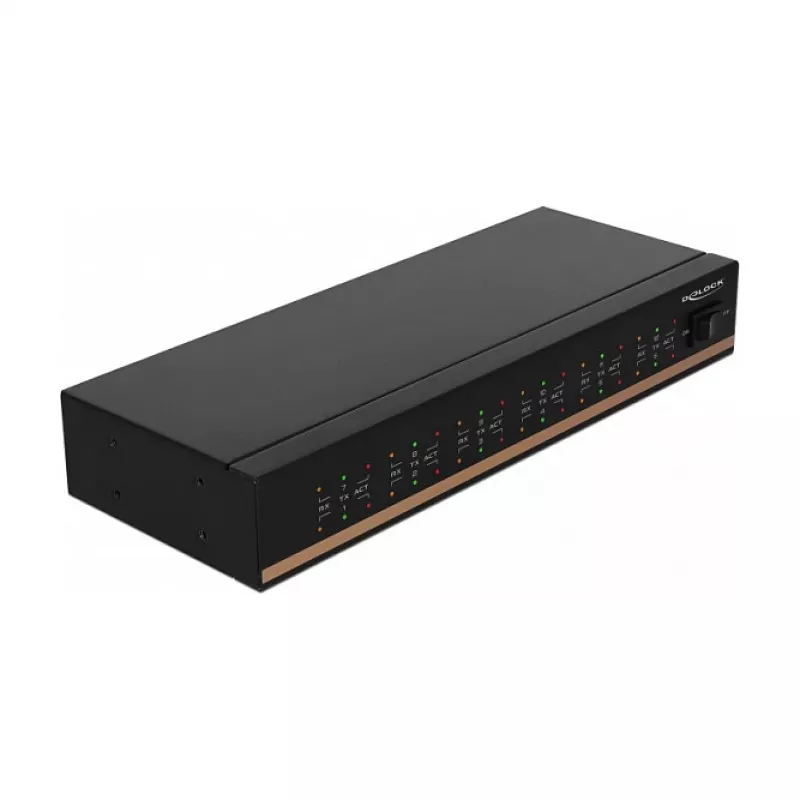

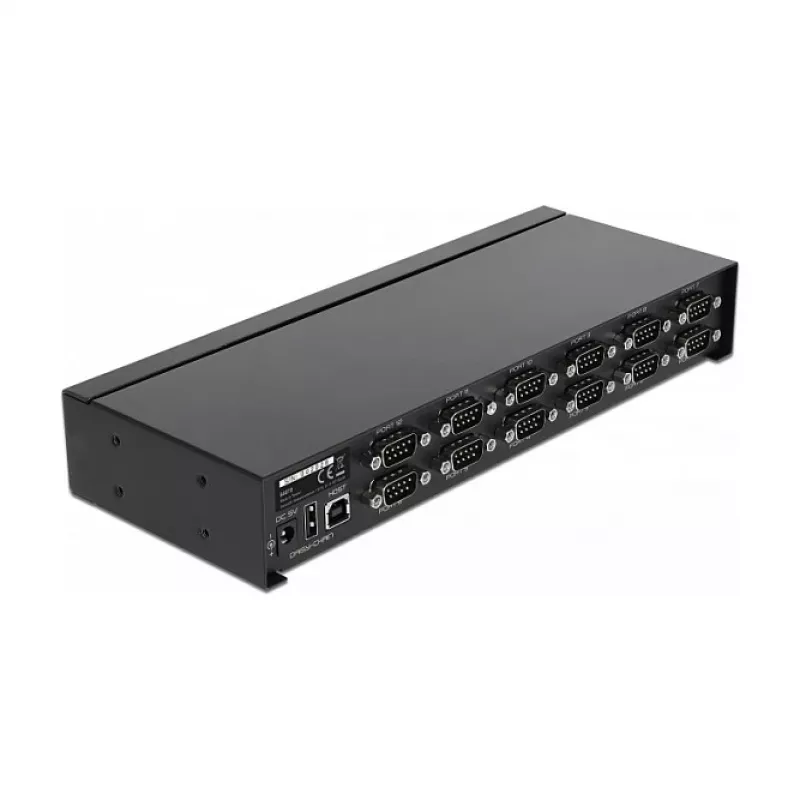

The DeLOCK 64070 is a compact USB 2.0 to RS-232 hub that provides 12 RS-232 serial ports plus the USB host and an additional port (14 ports total). Housed in a black metal case, the unit supports connection of printers, controllers, measuring instruments and other serial devices. Up to four hubs can be cascaded on a single USB 2.0 port to supply up to 48 RS-232 ports. Status LEDs on each port indicate the current RS-232 line status. A Windows application enables centralized control of the COM ports. The hub can be used on a desktop or mounted on a wall or DIN rail.

Advantages

The DeLOCK 64070 offers multiple RS-232 ports from a single USB 2.0 host interface, compact metal housing for durability, visible port status via LEDs and support for cascade connection to expand the number of available serial ports. It includes software for centralized management of serial COM ports under supported Windows versions.

Suitable for

• Connecting serial printers to a USB host
• Integration of industrial controllers and PLCs
• Data acquisition and measurement devices with RS-232 interfaces
• Environments requiring multiple serial ports from one USB connection

Key specifications

• Manufacturer: DELOCK, model 64070
• Host interface: USB 2.0
• Serial interfaces: 12 × RS-232 (14 ports total including USB and additional port as stated)
• Maximum cascade: up to 4 hubs (up to 48 RS-232 ports on one USB 2.0 port)
• Data transfer rate: up to 0.4608 Mbit/s
• Supported OS: Windows 10, 8.1, 7 (Windows application for COM port control)
• Housing: black metal
• Input voltage: 100–240 V
• Dimensions: 102 × 268 × 40 mm (W × D × H)
• Weight: 1.033 kg
• MPN: 64070 • EAN: 4043619640706

How to use

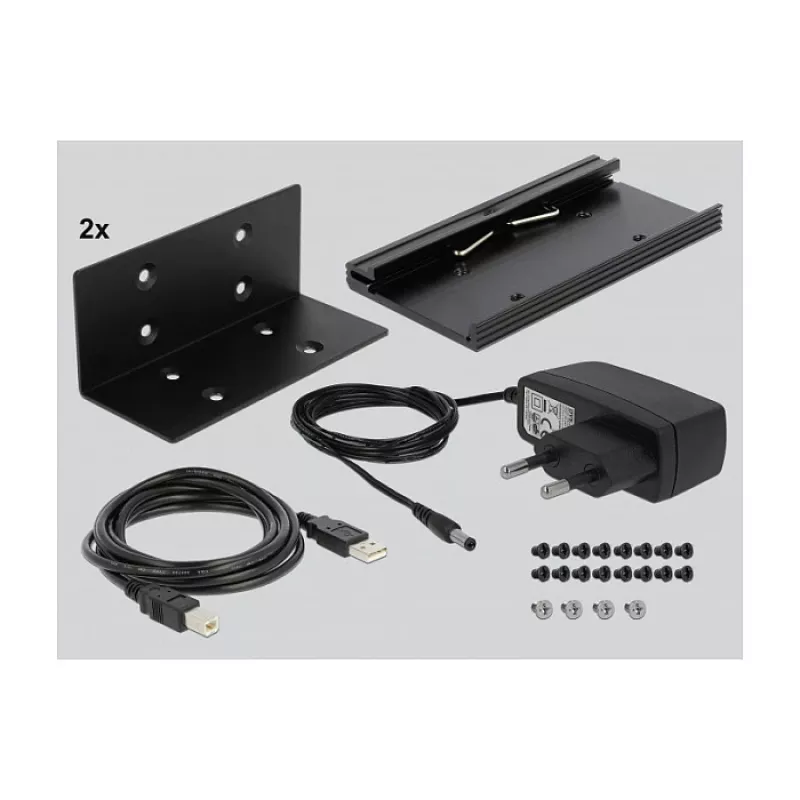

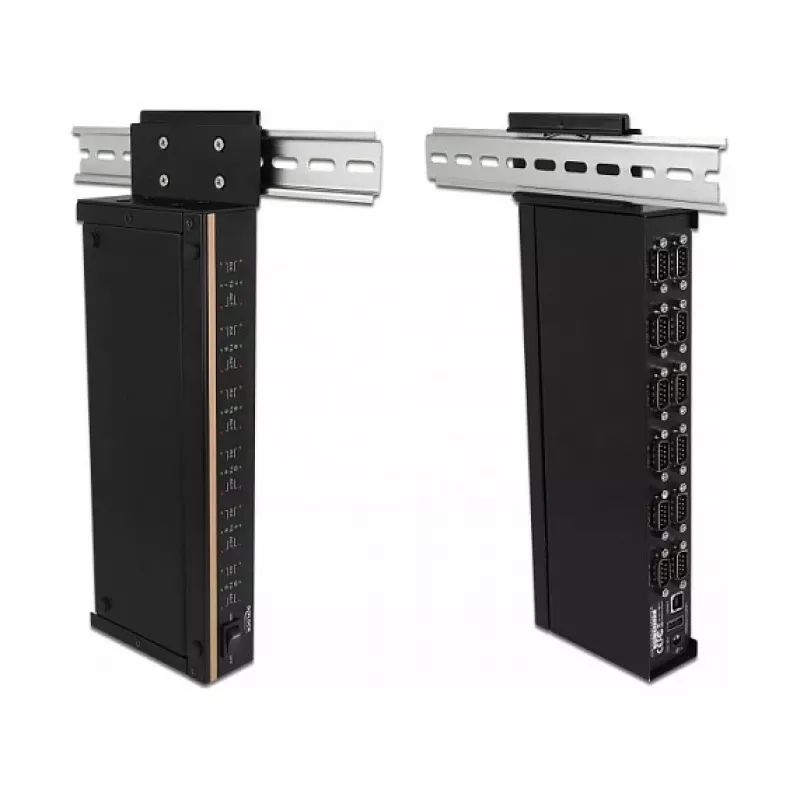

Install the included Windows application or drivers on a compatible Windows system (Windows 10, 8.1, 7). Connect the hub to a USB 2.0 host port and attach RS-232 devices to the serial ports. Monitor the port status via the LEDs on each port. For larger installations, connect up to four hubs in cascade to expand the total number of available RS-232 ports. Mount the hub on a desk, wall or DIN rail as required and supply power using the appropriate mains connection (100–240 V).

Recommendations

Use shielded RS-232 cables and maintain correct grounding when connecting multiple devices or when installing the hub in industrial environments. Verify driver compatibility and install the latest Windows application provided by DELOCK before connecting mission-critical equipment.
