Hub USB EXSYS 7 portas 480 Mbit/s preto

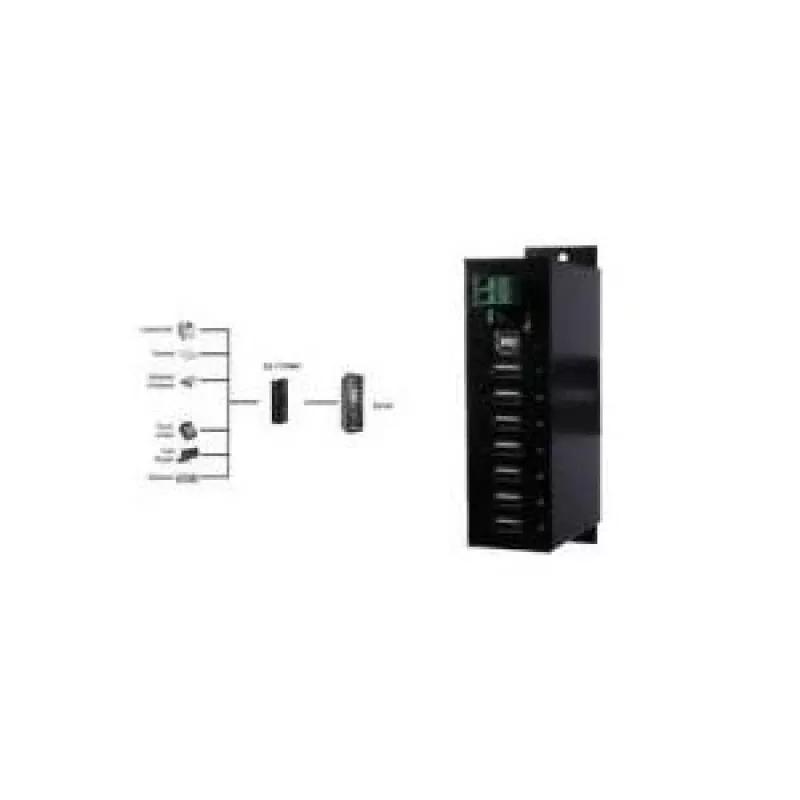

The EXSYS USB Hub EX-1177HMVS is a compact 7‑port USB 2.0 hub offering Up to 480 Mbit/s data transfer per port. Designed for industrial and office environments, the hub uses the NEC uPD720113 chipset and supports Windows, Linux and macOS. Its small footprint (26.3 x 73 x 114.5 mm) and 250 g weight allow easy integration into constrained setups, and it can be mounted on a DIN rail for industrial installations.

Advantages

This USB Hub provides seven downstream USB 2.0 ports with automatic detection of the attached device data rates, ensuring compatible communication with low- and full-speed peripherals as well as high-speed devices. It accepts an external DC power source from +7 to 24 V, meeting common industrial power standards, and also offers an optional +5 V power-over-USB (bus power) port. The unit’s compact industrial design and included DIN-rail kit simplify installation and save space.

Suitable for

• Expanding USB connectivity for industrial controllers, HMIs and embedded systems
• Connecting multiple peripherals such as keyboards, mice, scanners and storage devices
• Office and laboratory workstations with limited USB ports

Key specifications

• Model: EX-1177HMVS
• Standard: USB 2.0, up to 480 Mbit/s
• Ports: 7 downstream USB 2.0 ports
• Chipset: NEC uPD720113
• Power input: +7 to 24 V DC; optional +5 V bus power on one port
• Compatibility: Windows, Linux, macOS
• Dimensions: 26.3 x 73 x 114.5 mm
• Weight: 0.25 kg
• Colour: Black

How to use

Install the hub on a desk or mount it to a DIN rail using the included kit. Connect a compatible DC power source within the +7 to 24 V range when external power is required for multiple or high-power peripherals; alternatively use the optional +5 V bus-power port for devices that support bus power. Plug peripheral devices into the downstream USB ports; the hub will automatically recognise and negotiate the appropriate USB data rate for each device. Connect the hub to a host computer using a suitable upstream cable if required by your system configuration.

Recommendations

For reliable operation in industrial settings, use a regulated DC power supply within the specified +7–24 V range and observe cable management to avoid interference. When powering multiple high-current devices, prefer the external DC input over bus power to ensure stable performance.
