Injetor PoE++ Gigabit EXSYS 60W -40 °C a +80 °C

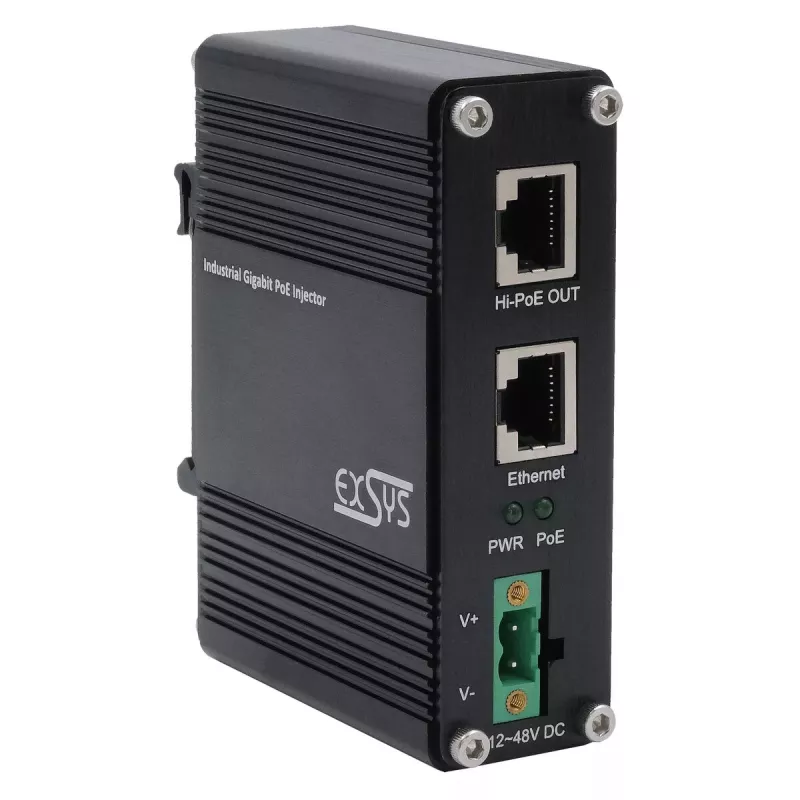

The EXSYS PoE++ Gigabit Injector EX-60310 in a robust metal housing supplies power to end devices such as IP telephones, IP cameras and WLAN access points over a network cable while providing Gigabit Ethernet data transmission. It supports IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) standards and delivers up to 60 W at the PoE port. Power input is provided via a +12–48 V terminal block using an external power supply. The injector features LED indicators for PoE and status and offers reliable data throughput of up to 1000 Mbps in a compact, durable enclosure.

Advantages

The metal housing and extended operating temperature range from -40 °C to +80 °C ensure reliable operation in demanding or outdoor-adjacent environments. Support for PoE, PoE+ and PoE++ standards allows flexible powering of a wide range of powered devices. Gigabit Ethernet capability provides full 10/100/1000 Mbit/s data rates while built-in LEDs simplify status monitoring. The unit ships with a pre-assembled DIN rail kit and a wall mounting bracket for varied installation options.

Suitable for

• Powering IP cameras in surveillance installations
• Supplying IP telephones in enterprise voice networks
• Providing power to WLAN access points in indoor and sheltered outdoor sites
• Industrial applications requiring wide temperature tolerance and rugged hardware

Key specifications

• Model: EX-60310
• Power output: up to 60 W at PoE port
• PoE standards: IEEE 802.3af / 802.3at / 802.3bt
• Data rates: 10/100/1000 Mbit/s (Gigabit Ethernet, up to 1000 Mbps)
• Input voltage: +12–48 V via terminal block
• Ports: 2 × RJ-45 Ethernet ports
• Operating temperature: -40 °C to +80 °C
• Weight: 0.37 kg
• Colour: Black

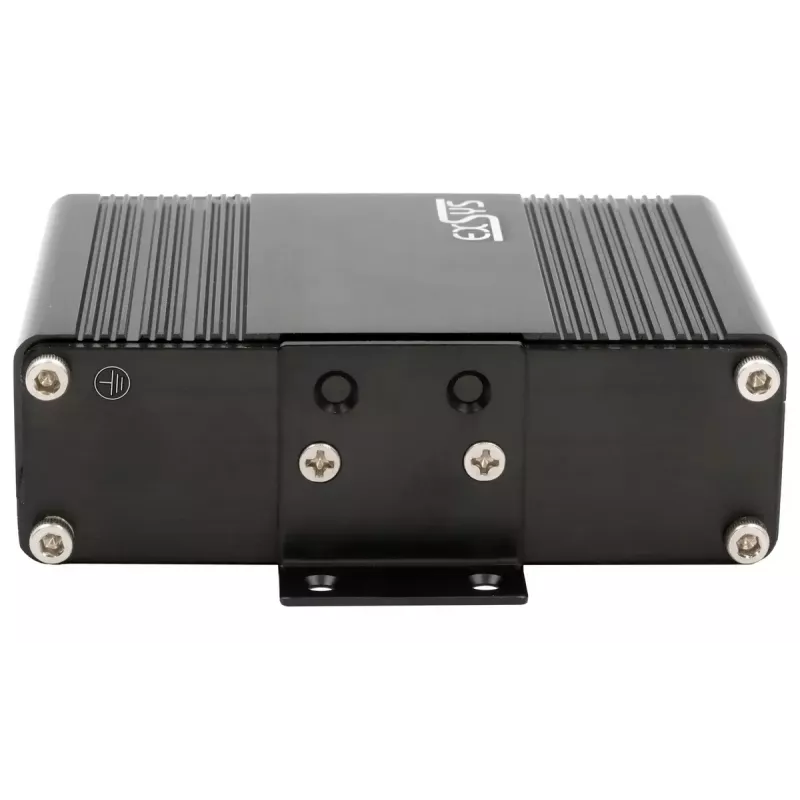

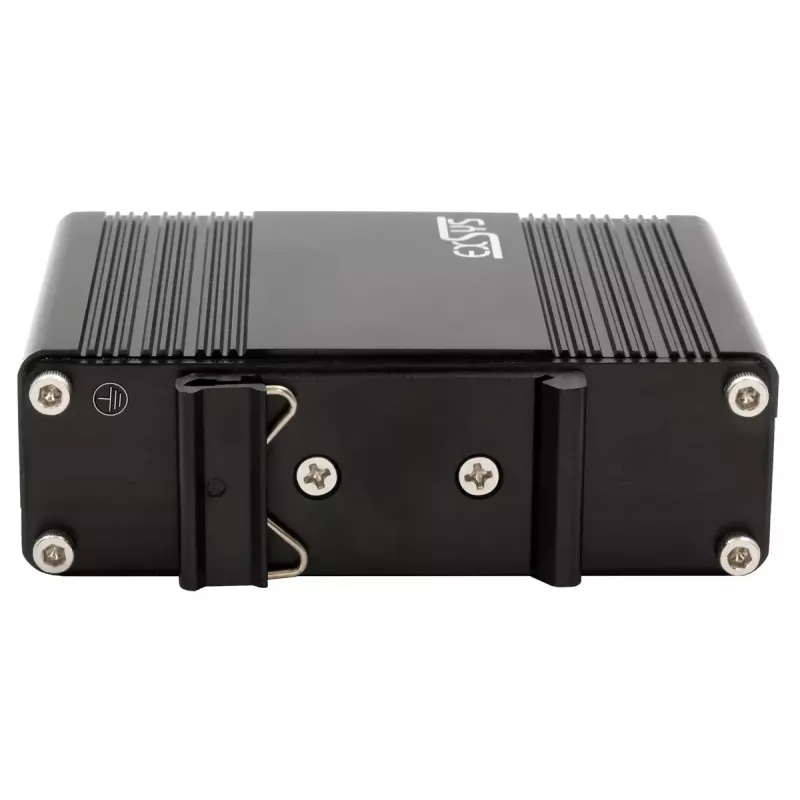

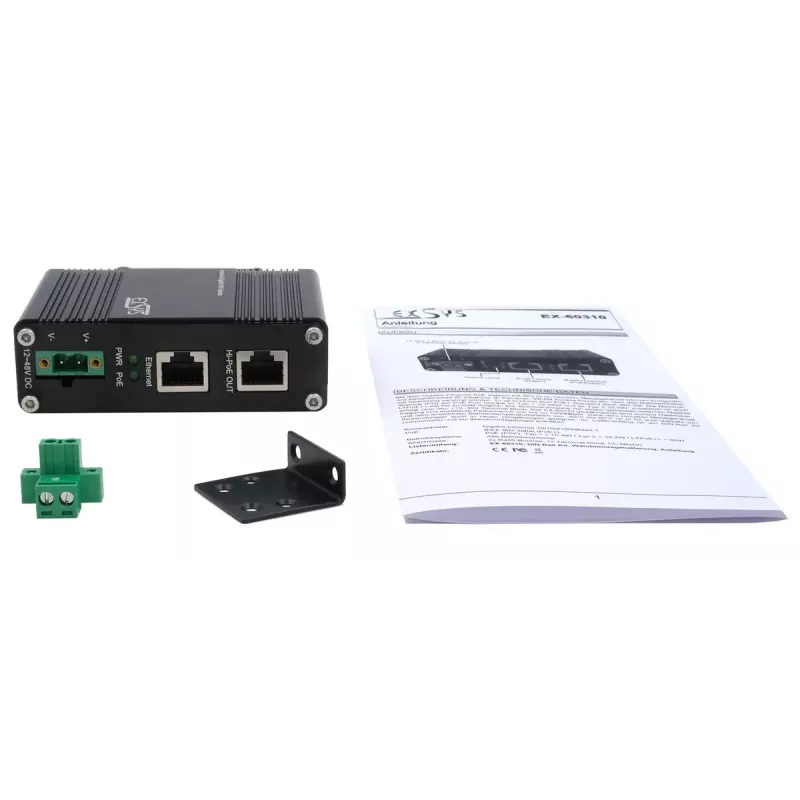

• Accessories: pre-assembled DIN rail kit, wall mounting bracket

How to use

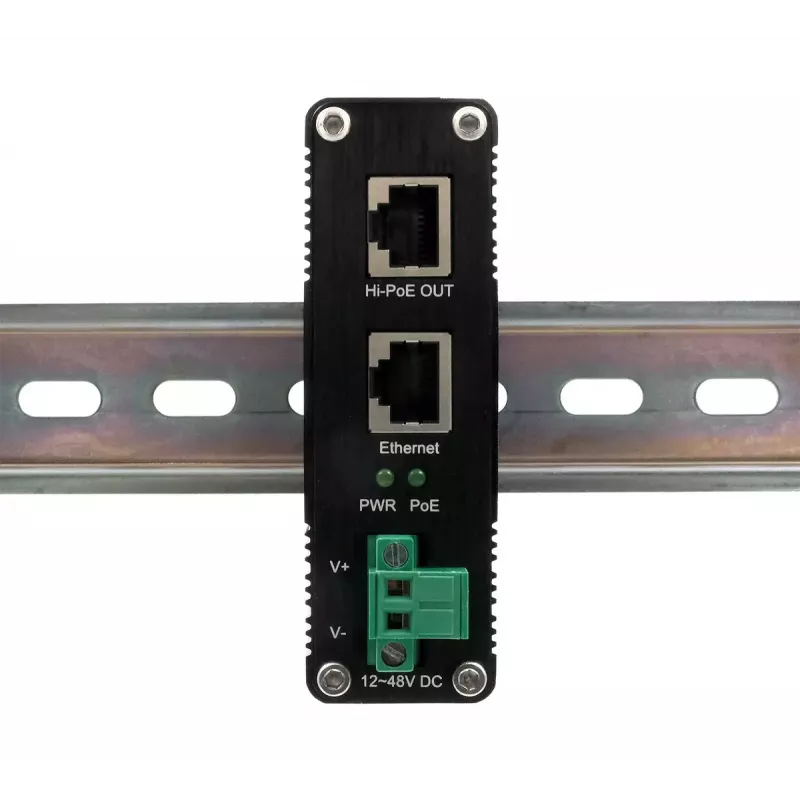

Connect the injector’s data+power RJ-45 PoE port to the PoE-capable device using a suitable Ethernet cable and connect the other RJ-45 port to the network switch or router for data only. Supply DC power to the injector via the +12–48 V terminal block using a compatible external power supply rated to provide sufficient current for the connected device(s). Verify the LED indicators for power and PoE status to confirm correct operation. Install the unit on a DIN rail or fix it to a wall using the supplied mounting bracket as required.

Recommendations

Use shielded or high-quality Cat5e/Cat6 Ethernet cables for optimal Gigabit performance and follow the power budget guidelines of connected PoE devices. Ensure the external power supply matches the required voltage and current for total connected load and install the injector within its specified temperature range and protected from direct water ingress.
