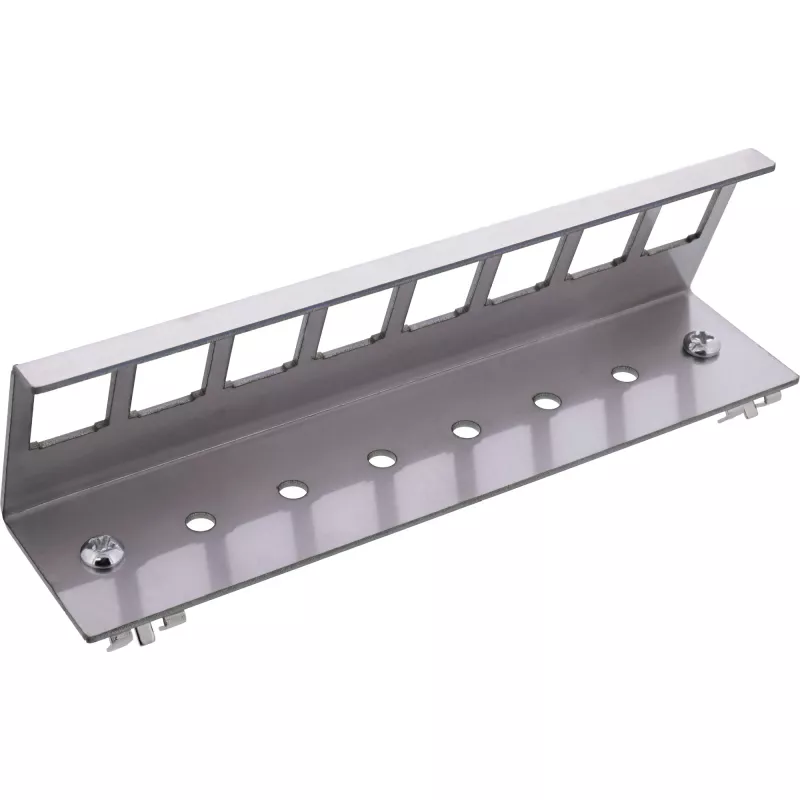

InLine 76203H Fixação snap-in Keystone metálica para montagem em calha DIN, 8 portas

This bracket is designed for snap-in attachment to a standard DIN rail and accommodates a Keystone module with its standardized dimensions. It provides a compact mounting solution for network accessories and modules where DIN-rail installation is required.

Advantages

The bracket allows quick snap-in installation on DIN rails without additional tools and fits Keystone modules due to its standardized size. Its compact form factor helps organize modules neatly in control cabinets or network enclosures and ensures consistent positioning of the mounted Keystone module.

Suitable for

Key specifications

How to use

Align the bracket with the top edge of the DIN rail and press downward until it snaps into place. Insert the Keystone module into the bracket opening according to the module's alignment features. To remove, gently lift or lever the bracket edge away from the rail to release the snap-fit and then withdraw the module.

Recommendations

The bracket is intended for use with standard DIN rails and Keystone-format modules; verify module dimensions before installation to ensure proper fit and secure snap-in mounting.
