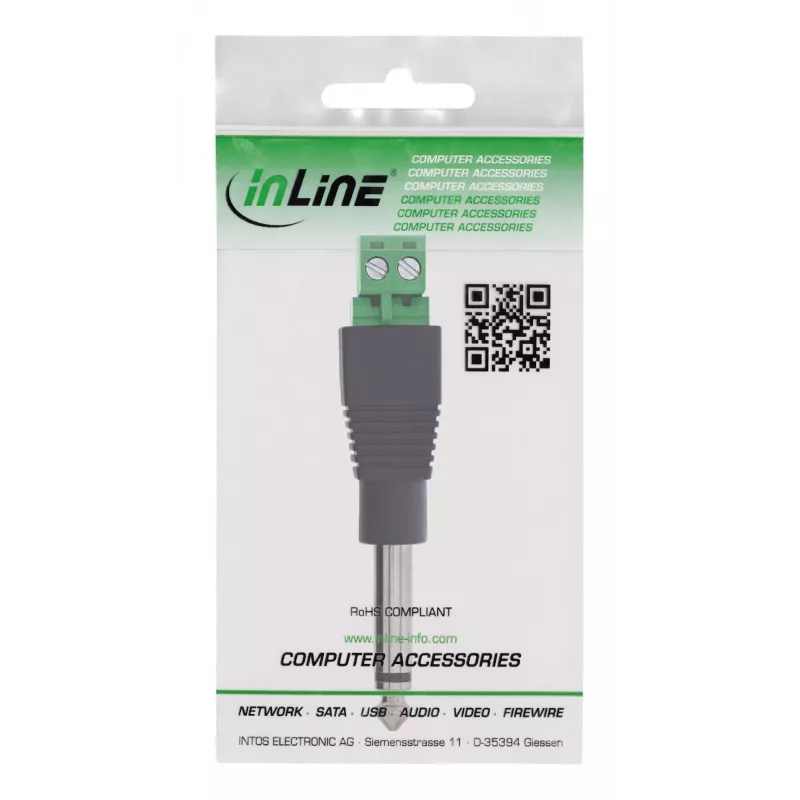

InLine 92504M Conector de fios ficha jack TS de 6,35 mm 2 polos / bloco de terminais 2 terminais, preto, verde

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Reliable mono audio connection:6.35 mm jack plug (TS) with clearly assigned terminals (signal/ground) – ideal for audio technology, test setups, or control lines.
Side terminal strip for compact installation: Adjacent terminals in a 5.0 mm grid size enable space-saving integration – e.g., in audio racks or test environments.
Versatile use in industry: For analog signal wiring in audio applications, control devices, development laboratories, or measuring systems.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure stable and reliable signal transmission in industrial environments.

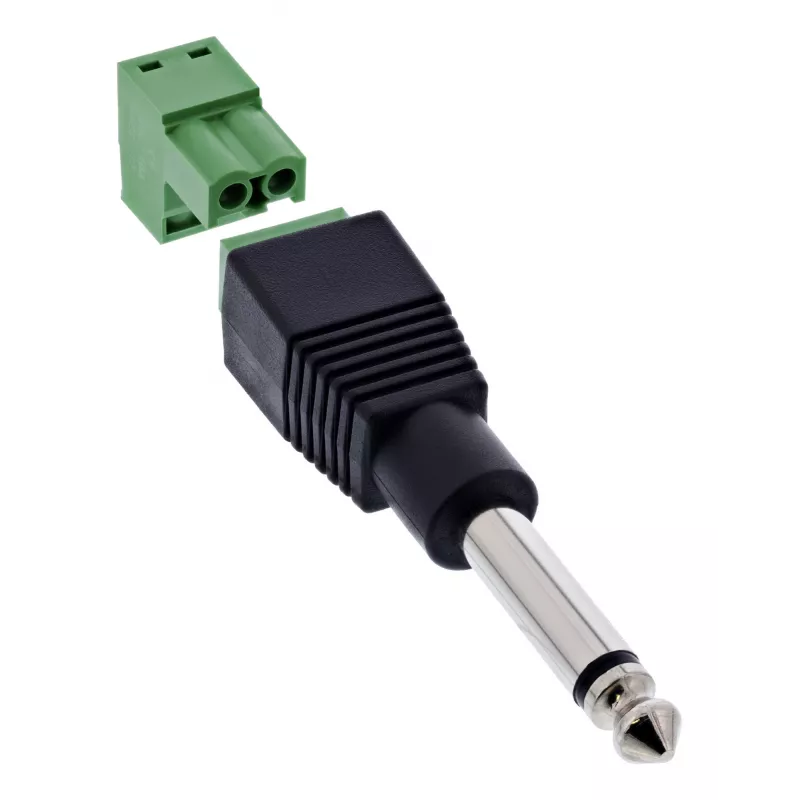

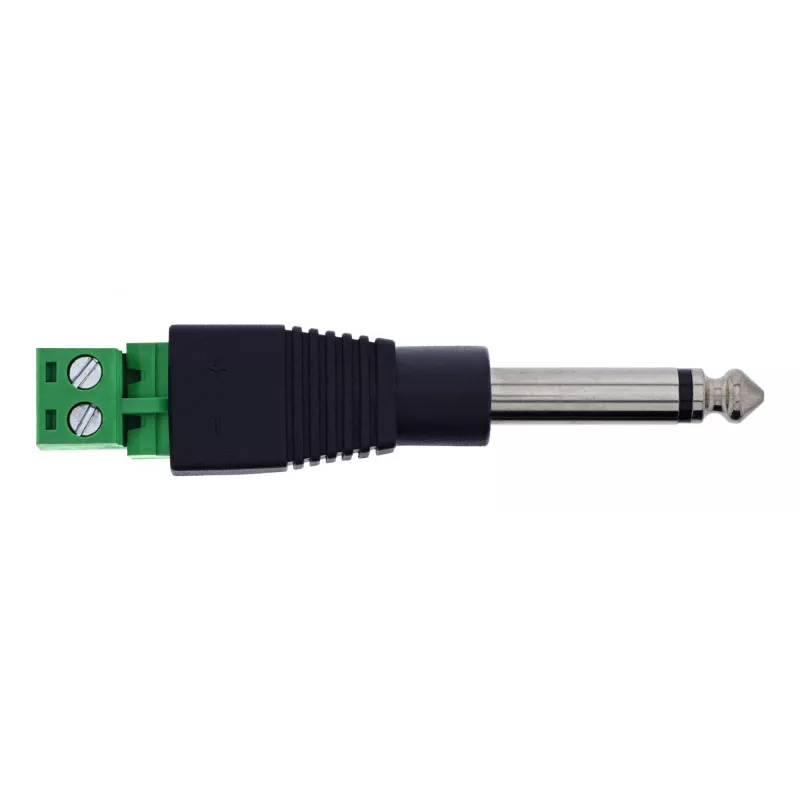

The InLine® 6.35 mm jack plug (TS, mono) on terminal block enables fast and solder-free wiring of analog signals. Ideal for audio signals, control lines, or test setups, this adapter offers an easy way to make contact – without any soldering.

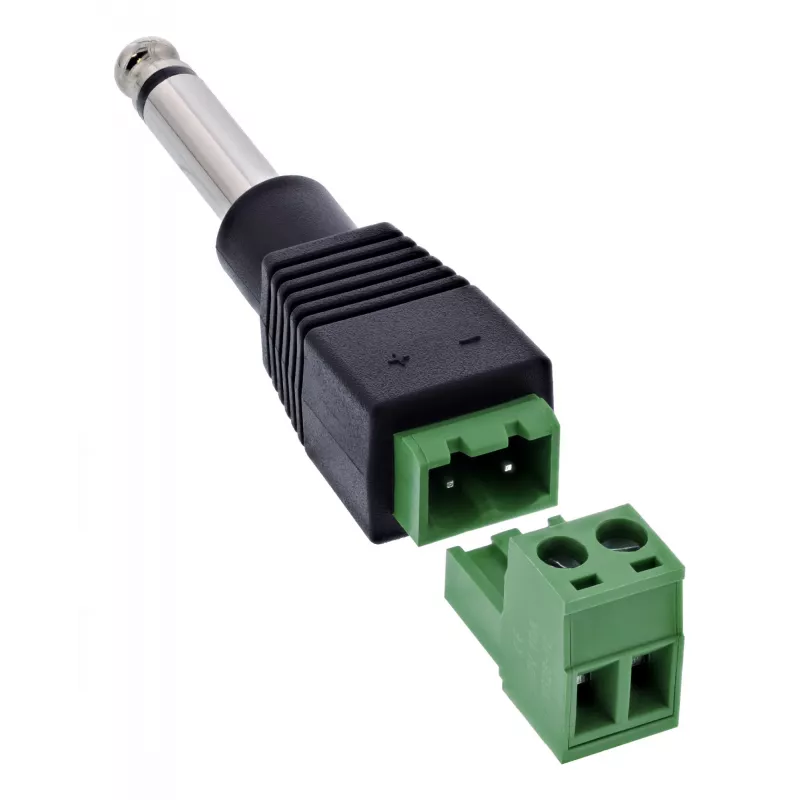

The 2-pole screw terminal strip is clearly labeled: +(signal), –(ground). It supports wires in the range of 18–26 AWG and allows tool-assisted wiring with a flat-head screwdriver ≤ 2.5 mm. The robust housing with EVA insulation layer provides reliable protection when mounted on a conductive surface.
Thanks to its compact design, the adapter is also suitable for space-critical applications – e.g., in audio racks, test systems, or embedded projects.

Jack connection:6.35 mm TS jack plug (2-pin, mono)
Number of pins / terminal assignment:2 terminals / + (signal), – (ground)
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Max. conductor resistance:5 ohms
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside

InLine 92504M. Connector(s): 6.35 mm 2-pin jack TS / Terminal block 2 terminals, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 16 x 80 x 16 mm, Weight: 14 g, Width: 16 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³, Package type: Polybag. Country of origin: Taiwan

How to use

Strip the conductor to an appropriate length, insert the wire into the matching screw terminal (observe + = signal, – = ground) and tighten the screw using a flat‑head screwdriver (maximum blade width 2.5 mm) until the conductor is clamped securely. Plug the 6.35 mm TS jack into the corresponding mono socket. Mount the adapter in the desired location, ensuring the EVA insulation layer faces any conductive surface.

Recommendations

For best performance, use copper conductors within the specified 18–26 AWG range, avoid over‑torquing the terminal screws, and keep the operating temperature within –10 °C to +70 °C. Do not exceed the rated current of 1.0 A per pin and ensure proper polarity when connecting signal and ground.
