InLine Cabo de fibra ótica simplex, FTTH, LC/APC8° para LC/APC8° 9/125µm OS2 25m

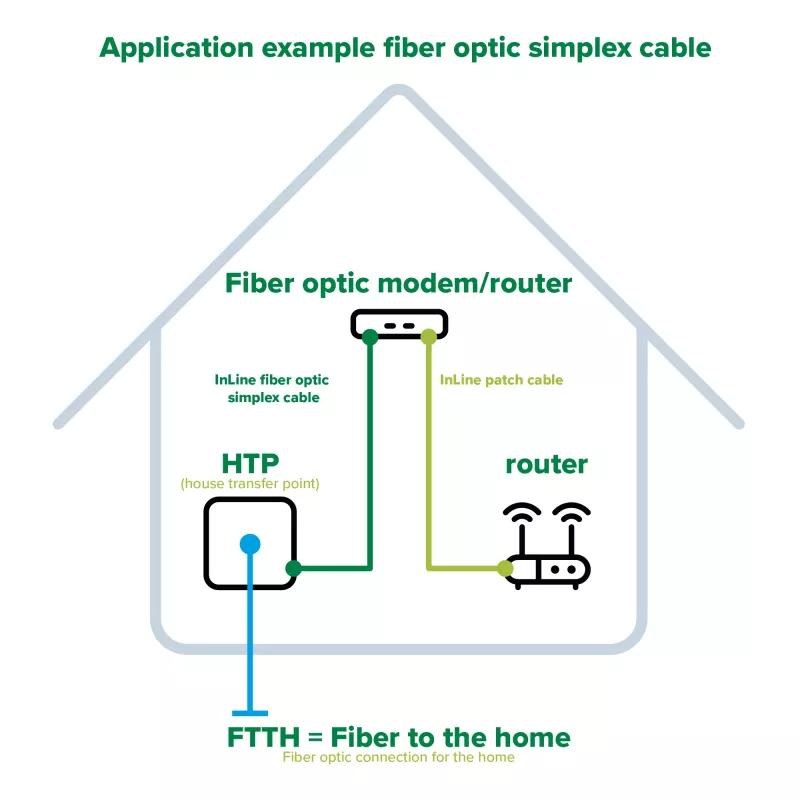

Telecommunications companies such as Vodafone, Deutsche Glasfaser and Telekom are increasingly enabling fibre connections for private households in Germany. Fibre to the home (FTTH) cables from InLine connect the house transfer point with the fibre optic modem and ensure a reliable fibre optic connection in your home.
Unfortunately, pre-installed cables from providers are often of poor quality and sometimes only 1.6mm thick. If the cable breaks, even the fastest fibre optic connection will not help. InLine FTTH cables are 3mm thick and have a particularly stable structure. Additional reinforcement in the form of a stainless steel spiral tube guarantees a long-term, reliable fibre optic connection in private homes. The neutral sheath colour white is suitable for inconspicuous installation in visible living areas. Different lengths up to 50m allow you to remain flexible, even if the position of the modem changes.

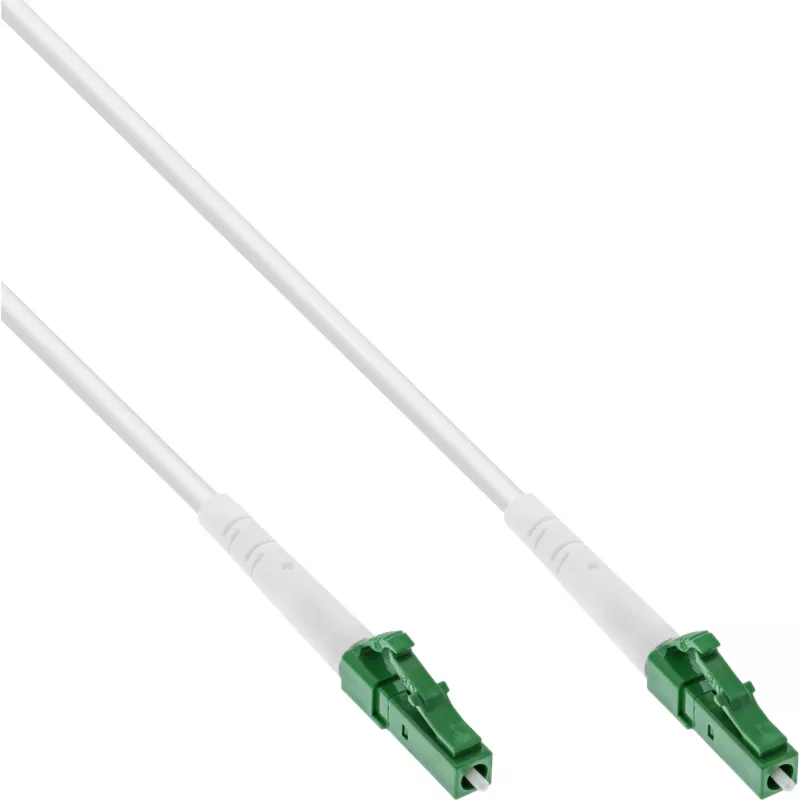

InLine Fiber Optical Simplex Cable, FTTH, LC/APC8° to LC/APC8° 9/125µm OS2 25m. Cable length: 25 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm

How to use

Route the InLine FTTH cable between the building’s fiber demarcation point and the optical modem or ONT, avoiding sharp bends and excessive pulling forces. Ensure LC/APC connectors align correctly with the device ports and insert until the connector latch clicks. Use cable clips or conduit to secure the cable along walls or skirting boards; maintain the minimum bending radius recommended for 3.0 mm armoured fiber to preserve optical performance. If a test report is required, verify insertion and return loss with appropriate fiber test equipment after installation.

Recommendations

Do not exceed the specified pulling tension or bend radius during installation. Clean LC/APC connector endfaces with suitable fiber cleaning tools before mating to minimize insertion loss and protect equipment. Store unused lengths coiled loosely to avoid kinks and mechanical stress.
