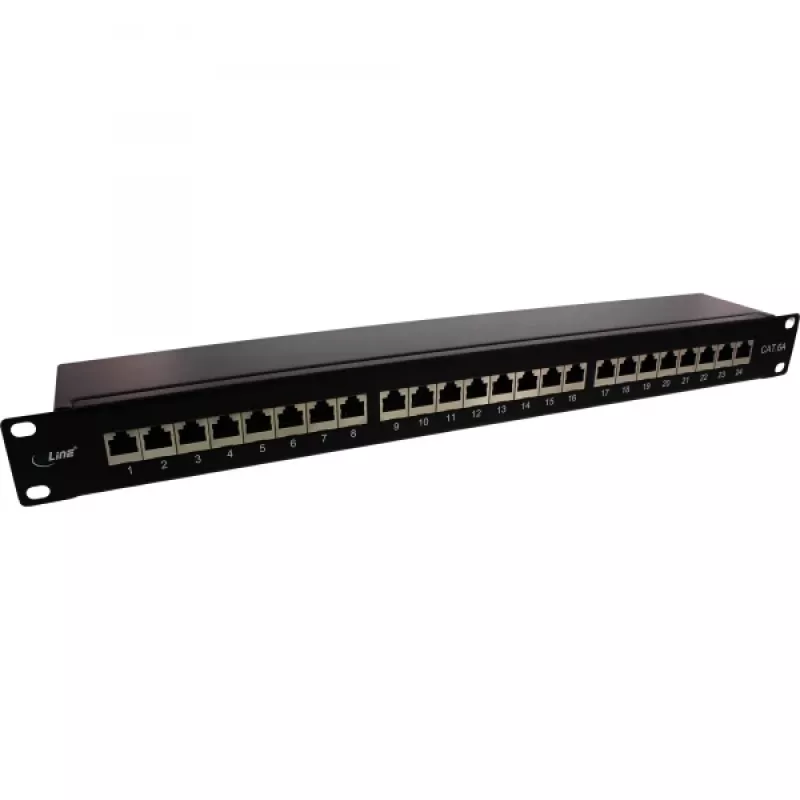

InLine Patch panel 19 polegadas Cat.6A 24 portas 1U preto RAL 9005

For high-density Cat.6A installations where signal integrity and rack efficiency are non-negotiable, this 24-port shielded patch panel packs full 500 MHz performance into a single rack unit. Unlike many panels that compromise on shielding or termination ease, it combines a fully shielded metal housing with LSA insulation displacement connectors, so every link stays clean and termination is fast and tool-assisted. The black RAL 9005 finish blends into any professional rack environment.

Highlights

• 24 RJ45 ports in a compact 1U 19-inch format – maximum density without wasting rack space
• Fully shielded construction (STP/FTP) reduces electromagnetic interference in noisy environments
• LSA+ insulation displacement connectors enable quick, reliable termination without stripping individual conductors
• Consecutive port numbering and integrated labeling fields simplify cable identification and management
• Supports PoE, PoE+, and 4PPoE (PoE++) for powering connected devices
• Gold-plated contacts (50µ) ensure long-term corrosion resistance and stable connections

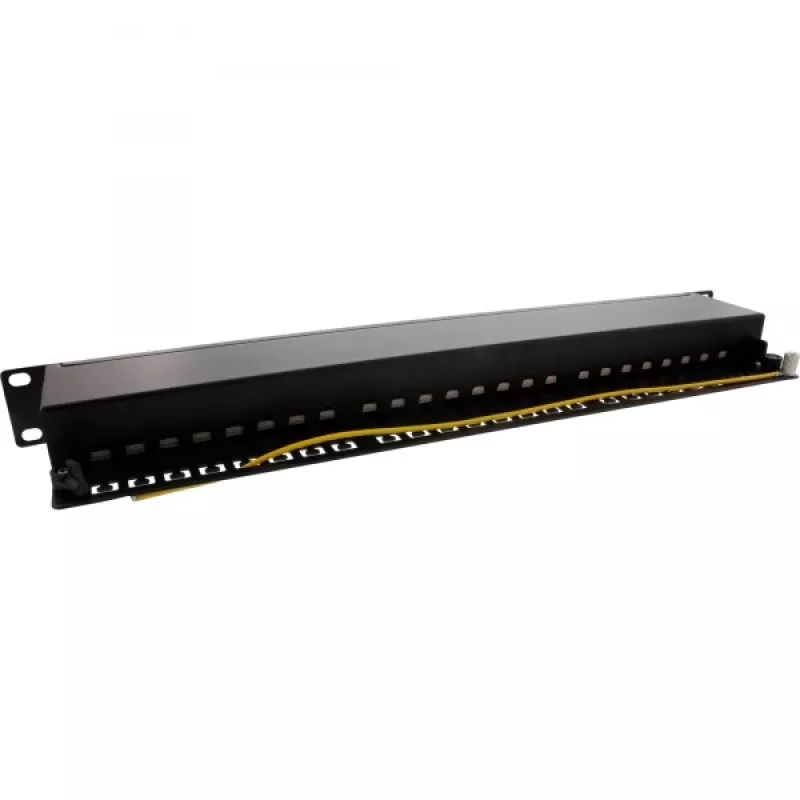

• Rear cable support bar included for tidy, strain-relieved cable routing
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards

In daily use

Mount the panel into any standard 19-inch rack using the included screws, occupying just 1U of vertical space. Terminate up to 24 installation cables on the rear LSA connectors following TIA/EIA 568A/B wiring, then connect patch cords to the front RJ45 ports. The rear cable support bar keeps bundles organized and reduces stress on terminations. Whether in a data center, office distribution point, or telecom rack, this panel delivers dependable Cat.6A performance up to 500 MHz, with grounding provisions to maintain shield continuity.

Full specifications

• Product type: Patch panel
• Rack size: 19 inch
• Rack units: 1U
• Number of ports: 24
• Cable category: Cat.6A (Class EA)
• Shielding: Shielded (STP/FTP)
• Front connector type: RJ45
• Rear termination type: LSA+ (IDC)
• Wiring standard: TIA/EIA 568A/B
• Colour: Black (RAL 9005)
• Housing material: Metal (steel)
• Grounding: Yes, with grounding cable/screw
• Cable management: Rear cable support bar
• Frequency support: Up to 500 MHz
• PoE compatibility: PoE, PoE+, 4PPoE (PoE++)
• Contact material: Gold-plated contacts (50µ)
• Installation: LSA tool required for termination
• Labeling: Integrated labeling fields
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Width: 482.6 mm

Final note

A future-ready patch panel that delivers full Cat.6A shielding and PoE++ support in a space-saving 1U design – ideal for demanding network infrastructures.
