InLine® placa de interface PCIe x1, 4x RS-232, Low Profile

InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
InLine® placa de interface PCIe x1, 4x RS-232, Low Profile
62,41 €
PDF
PDF
Stock 99 Código 3750460 Modelo 76623E Garantia 3 anos

Envios e devoluções

Entrega prevista segunda-feira, 14 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

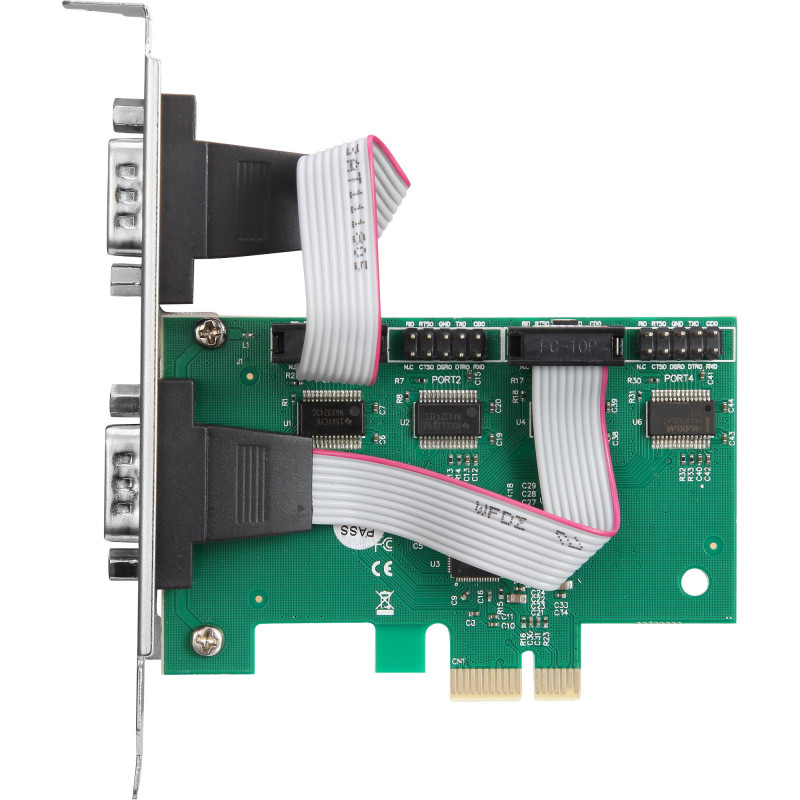

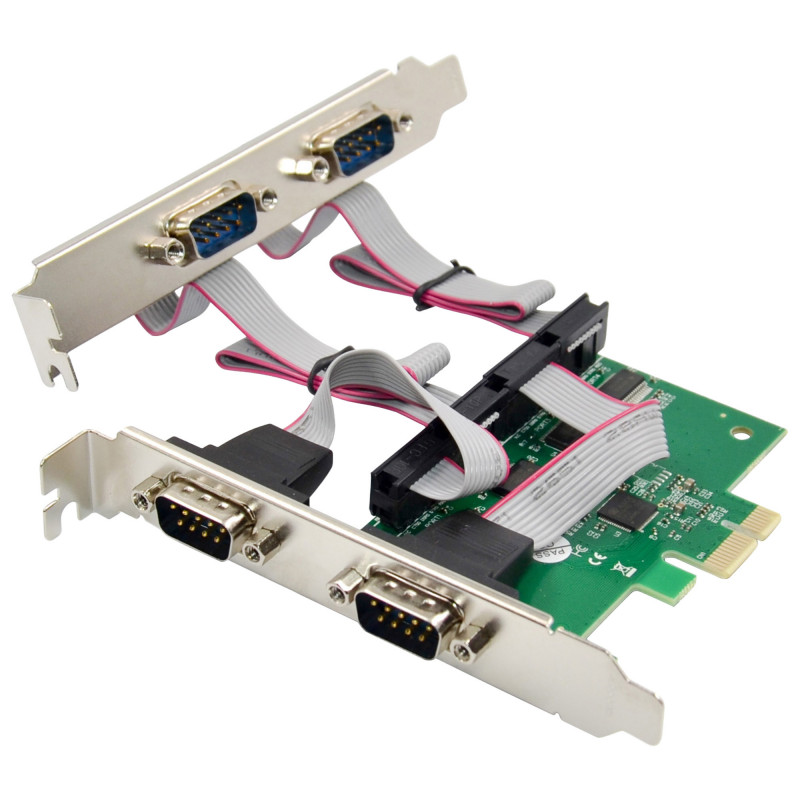

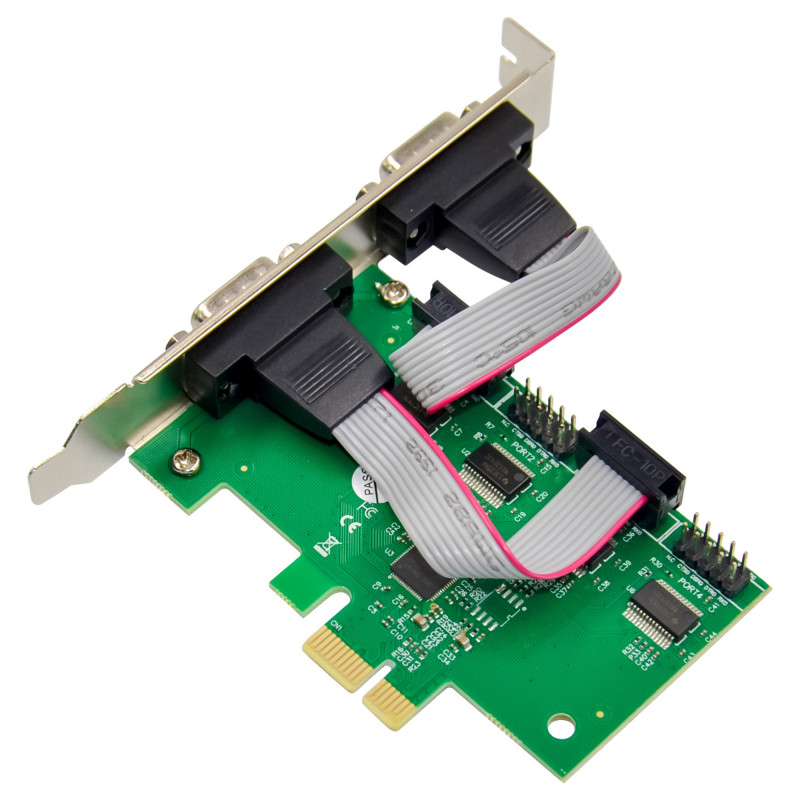

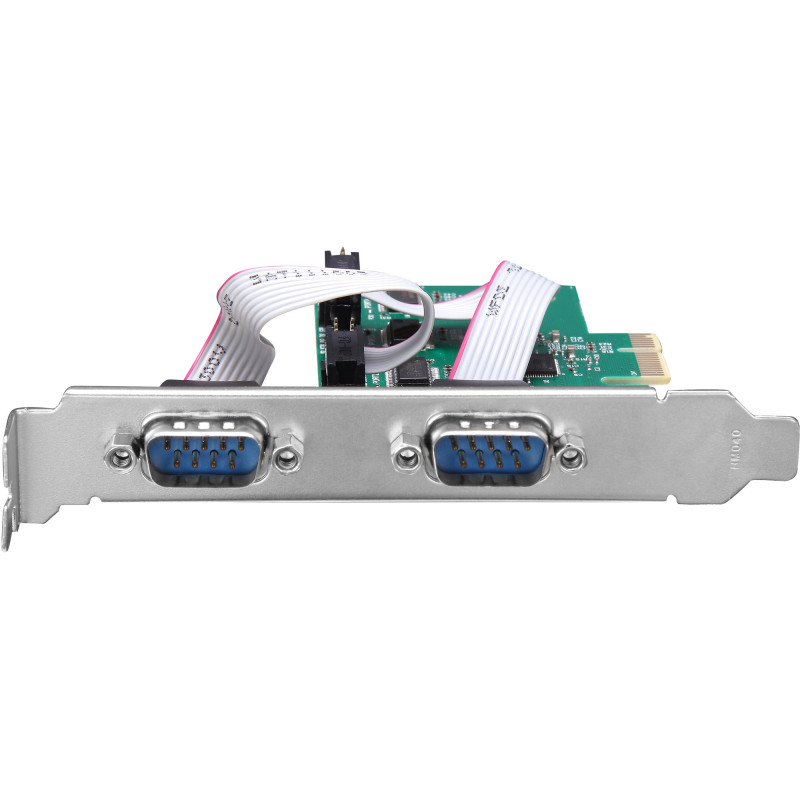

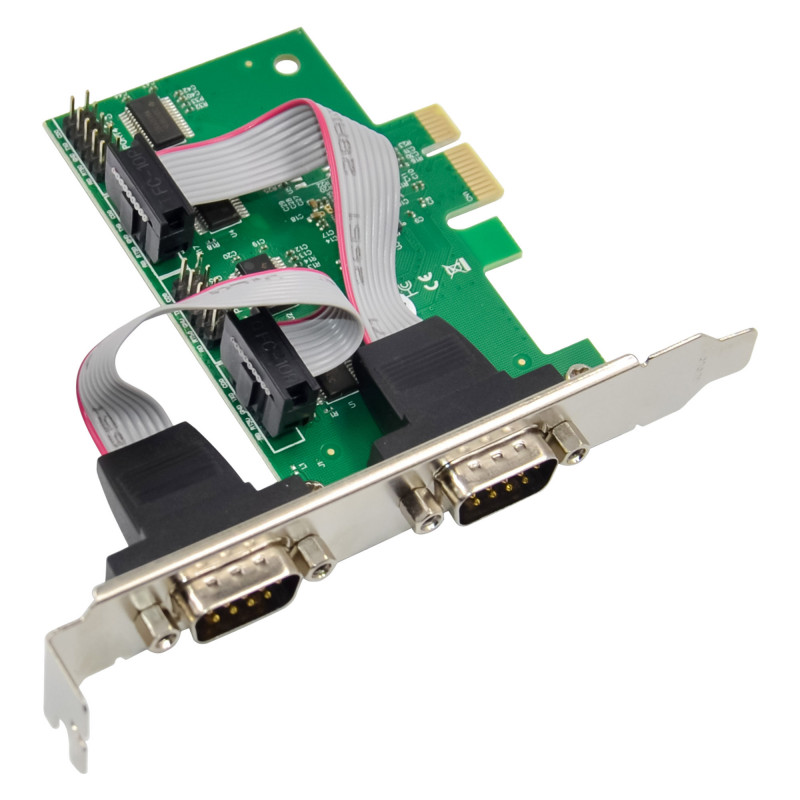

The InLine® PCIe x1 interface card adds four RS-232 serial ports to a compatible computer system via a PCI Express x1 slot. It is also compatible with PCIe x4, x8 and x16 slots, and the included low-profile slot brackets allow installation in compact enclosures.

Key features

  • Four RS-232 ports with D-Sub 9 connectors (male)
  • ASIX AX99100 controller
  • Full RS-232 modem control signals
  • Hardware and software flow control
  • 256-byte FIFO transmit and receive buffer per port
  • Freely configurable baud rates via internal PLL
  • Configurable data bits and parity
  • Low-profile slot brackets included
  • Compatible with PCI Express x1, x4, x8 and x16 slots

Specifications

  • Brand: InLine
  • MPN: 76623E
  • PCIe standard: PCI Express 2.0 Gen1, x1 lane
  • Bus interface: PCI Express x1 (compatible with x1, x4, x8 and x16 slots)
  • Connections: 4x RS-232, D-Sub 9 connectors (male)
  • Chipset: ASIX AX99100
  • Serial data rate: up to 115,200 bits/s per port
  • UART FIFO: 256-byte transmit and receive buffers per port
  • Flow control: Hardware and software flow control
  • Modem control: Full RS-232 modem control
  • Data bits: 5, 6, 7, 8 or 9 bits
  • Parity: None, Even, Odd, Mark, Space
  • Baud rate: Freely configurable via internal PLL
  • IrDA support: Slow IrDA up to 115,200 bits/s
  • Power management: PCI Power Management 1.2 with Remote Wake-Up
  • Supported operating systems: Linux kernel 2.6.x, 3.x and 4.x, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 (32-bit/64-bit), Windows 11 (64-bit)
  • Connections external: 4x 9pin serial
  • Interface: Serial
  • Type: Interface card
  • Low Profile: Yes
  • Country of origin: China
  • Customs tariff number: 8471800000
Destaques principais
  • Internal
  • Host interface: PCIe
  • Output interface: RS-232

Especificações

Especificações
Categoria
Placas série e paralelas PCIe
EAN
4043718354450
Marca
InLine
Modelo
76623E
MPN
76623E
