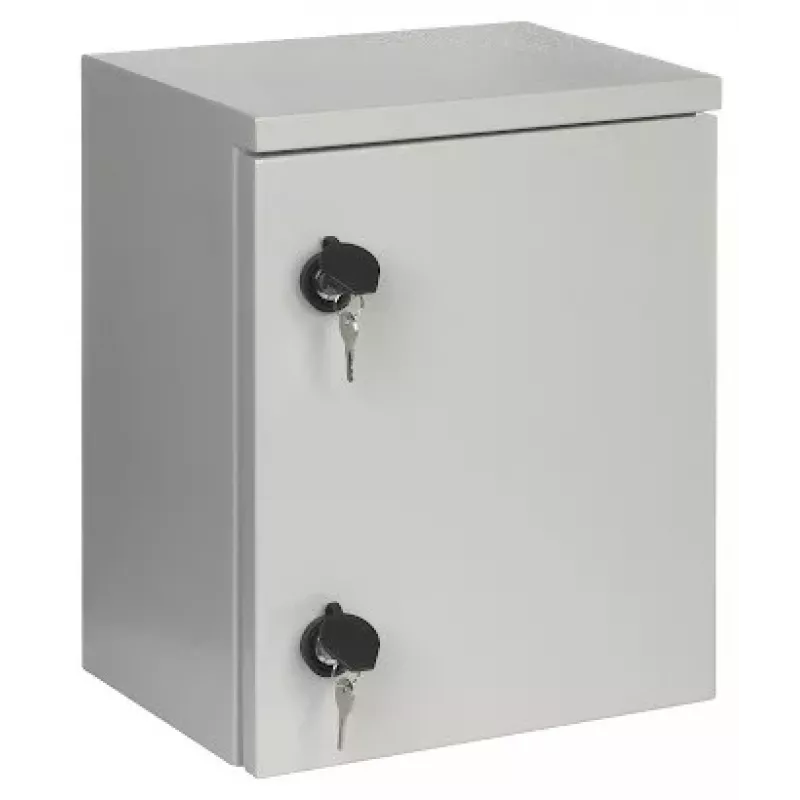

INNE armário rack hermético de parede R10-6U/230/L EPRADO

The INNE R10-6U/230/L is a hermetic (sealed) wall-mounted rack cabinet designed for secure indoor or outdoor installations. With a 10-inch rack standard and 6U capacity, it provides reliable protection for network and telecom equipment in dusty or humid environments. The cabinet features a solid steel door with a single-point lock, IP54 rating, and passive ventilation, ensuring durability and equipment safety.

Advantages

Hermetic design with IP54 protection shields equipment from dust and water splashes. The wall-mountable form factor saves floor space, while the powder-coated light grey finish (RAL 7035) resists corrosion. Cable entry via sealed gland plates (top, bottom, rear) maintains the seal integrity. The welded steel frame supports up to 20 kg static load.

Suitable for

• Network switches, patch panels, and small servers in industrial environments
• Outdoor telecom cabinets requiring weather resistance
• Secure wall-mounted enclosures for access control or CCTV equipment

Key specifications

• Rack Standard: 10-inch
• Rack Units: 6U
• External Depth: 230 mm
• Usable Internal Depth: 190 mm
• Mounting Type: Wall-mounted
• Enclosure Type: Hermetic (Sealed)
• IP Rating: IP54
• Door Type: Solid Steel
• Lock Type: Single-point lock with keys
• Material: Cold-rolled Steel
• Finish: Powder-coated
• Colour: Light Grey (RAL 7035)
• Max Static Load Capacity: 20 kg
• Cable Entry: Sealed Gland Plates (Top/Bottom/Rear)
• Ventilation: Passive (Sealed Enclosure)
• Construction: Welded Frame

Recommendations

For optimal performance, ensure the cabinet is mounted on a sturdy wall capable of supporting the total weight. Use appropriate cable glands for external connections to maintain the IP54 seal. This cabinet is ideal for environments where dust, moisture, or tampering is a concern.
