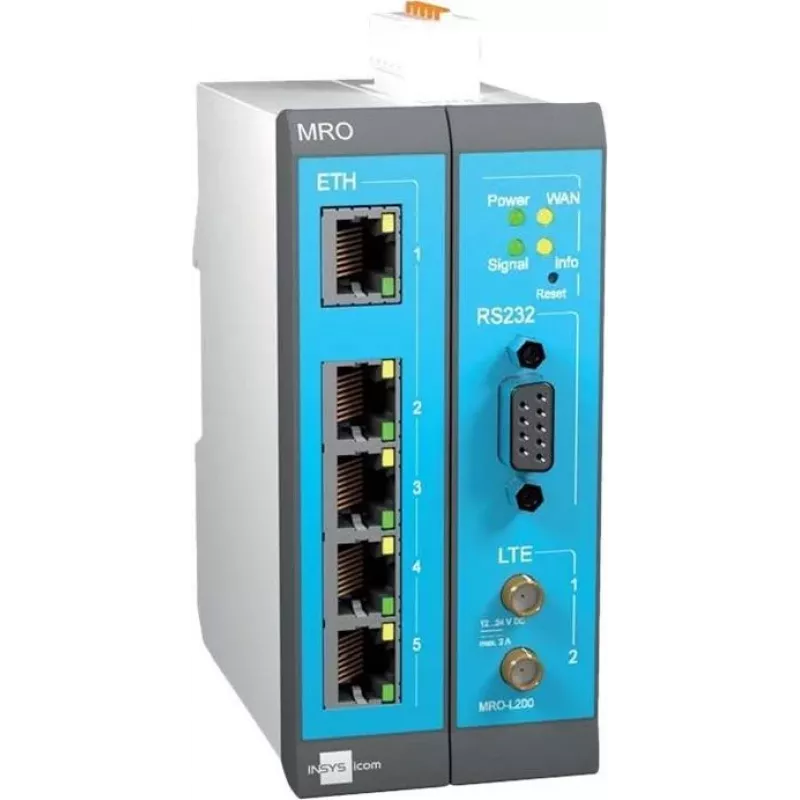

INSYS MoRoS icom MRO-L210 Router industrial LTE, Ethernet WAN, 2x 10/100 Ethernet, azul/cinzento/branco 10019403

Remote machines and plants often lack a reliable wired internet connection. The INSYS MoRoS icom MRO-L210 solves this by providing LTE connectivity with automatic fallback to Ethernet WAN, ensuring continuous network access for industrial applications.

Who is it for

This router is built for system integrators, machine builders, and operators of distributed infrastructure who need secure remote access to PLCs, meters, and other industrial devices over cellular networks.

Main features

• Industrial LTE Cat 4 router with up to 150 Mbps downlink and 50 Mbps uplink
• Dual WAN: LTE and Ethernet for failover or load balancing
• 2 x 10/100 Mbps Ethernet ports for local device connectivity
• VPN support: OpenVPN, IPsec, L2TP, PPTP for secure remote access
• Stateful Packet Inspection (SPI) firewall
• Industrial protocol support: Modbus TCP Gateway, IEC 60870-5-104, DNP3, MQTT
• 1 digital input and 1 digital output for sensor/actuator integration
• Wide power input range: 10-60 V DC
• Extended operating temperature: -30°C to +70°C
• DIN rail and wall mountable metal housing

Specifications

• Cellular: LTE Cat 4, 150 Mbps down / 50 Mbps up
• SIM: 1 x Mini-SIM (2FF)
• Antenna connectors: 2 x SMA (F) for LTE
• Ethernet ports: 2 x 10/100 Mbps RJ45
• Management: Web GUI, CLI, SNMP, TR-069
• Power consumption: typ. 3 W, max. 10 W
• Housing: metal, DIN rail/wall mount

Tips

Use the digital I/O to monitor door contacts or trigger alarms remotely. For maximum uptime, configure the Ethernet WAN as backup to LTE, or vice versa depending on site conditions.
