Inter-Tech KT005B adaptador de montagem em slot PCI para 2xSATA para 2xM.2 SATA SSD

Turn a spare PCI slot into dual M.2 SATA SSD bays with the Inter-Tech KT005B mounting frame. Supporting two M.2 SATA SSDs in 2230/2242/2260/2280 formats, this adapter connects via two SATA data ports and one SATA power connector, delivering up to 6 Gbps per drive. The full-profile PCI bracket fits standard desktop cases, and the black metal construction ensures durability and heat dissipation.

Overview

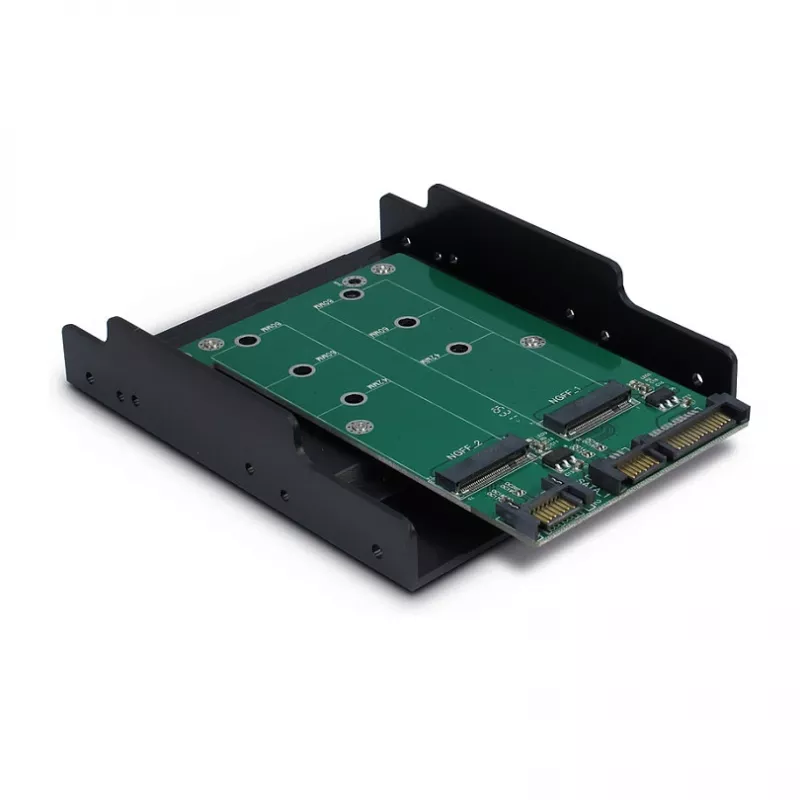

The KT005B is a drive bay adapter that installs into any full-height PCI slot, providing two M.2 B-key SATA slots. It is ideal for adding fast, compact storage to systems without native M.2 slots or for expanding capacity in a clean, internal layout. No drivers are required—the adapter is OS independent and works with any SATA controller.

What stands out

• Dual M.2 SATA slots: mount two SSDs simultaneously for up to 12 Gbps aggregate bandwidth.
• Broad M.2 compatibility: supports 2230, 2242, 2260, and 2280 form factors.
• Tool-free PCI installation: uses a standard full-profile bracket, no case modification needed.
• Passive cooling: metal frame acts as a heatsink for sustained performance.
• Included mounting screws: everything needed to secure your SSDs.

Technical details

• Host interface: 2x SATA 7-pin data + 1x SATA 15-pin power
• Device interface: 2x M.2 B-key (SATA protocol)
• Data transfer rate: up to 6 Gbps per drive (SATA III)
• Supported M.2 lengths: 30mm, 42mm, 60mm, 80mm
• Material: black metal
• Mounting: full-profile PCI slot bracket
• Hot-swap: no
• LED indicators: no
• Operating system: OS independent
• Package contents: adapter, mounting screws, manual

Our verdict

The Inter-Tech KT005B is a straightforward, reliable way to add dual M.2 SATA storage to any desktop with a free PCI slot. Its all-metal build and passive cooling make it a solid choice for both home and office systems.
